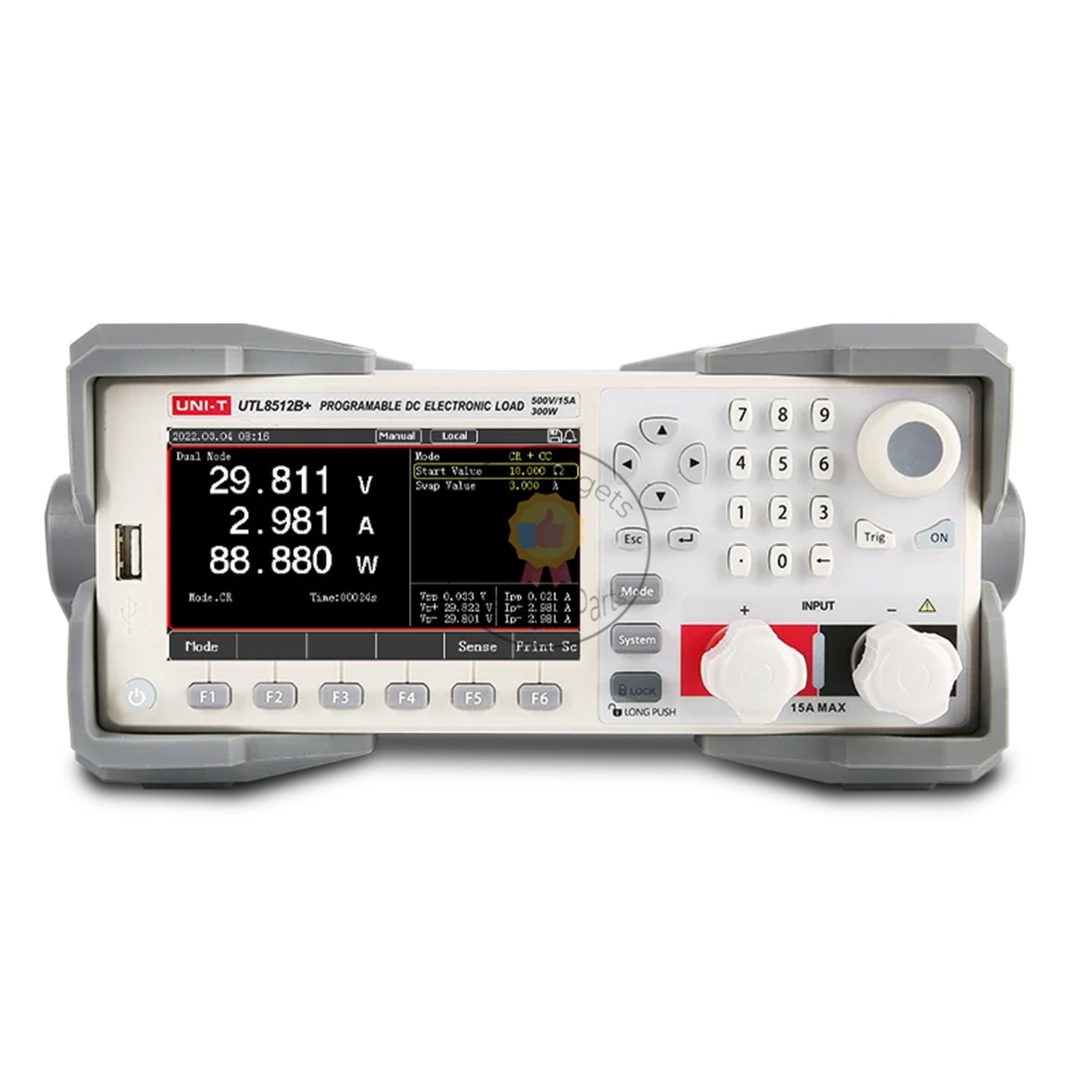

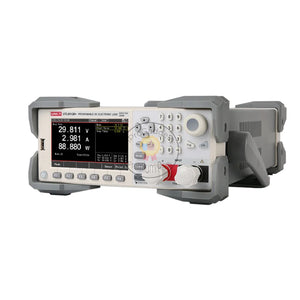

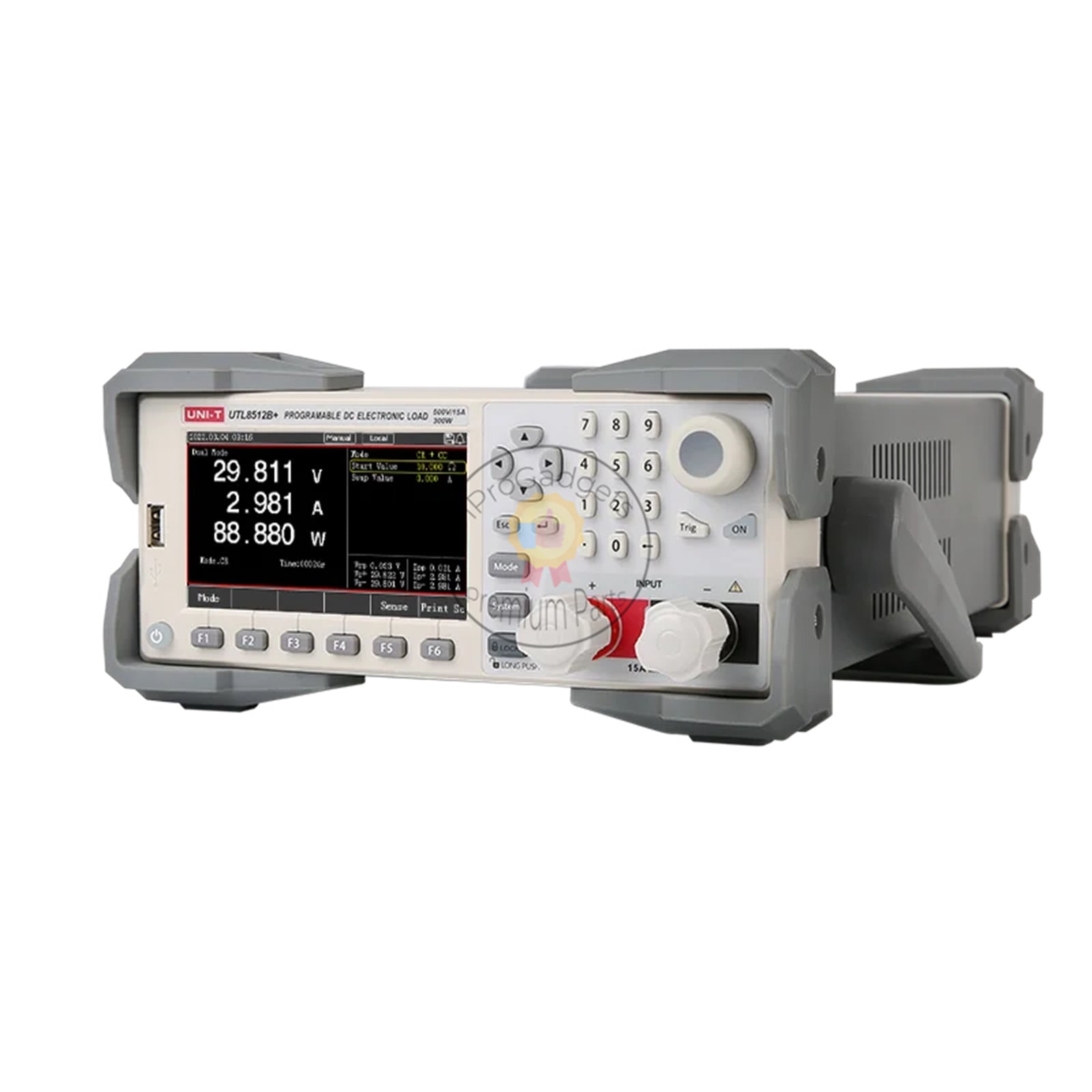

UNI-T UTL8511/UTL8512/UTL8512B+/UTL8513 High-precision Programmable DC Electronic Load Instrument Battery Capacity

  • $569.00
    Unit price per
Shipping calculated at checkout.


iProGadgets Repair Tools UNI-T UTL8511/UTL8512/UTL8512B+/UTL8513 High-precision Programmable DC Electronic Load Instrument Battery Capacity

Features:
  • Measuring range 150W/300W/600W, 150V/500V,15A/30A/120A
  • CC/CV/CR/CP four basic modes
  • 0.1mV/0.1mA high resolution
  • Voltage and current sampling rate of 40kHz, dynamic frequency up to 10k dynamic current/voltage test
  • Constant resistance + constant current, constant voltage + constant resistance, constant voltage + constant current three combinations of test
  • CR-LED test, power rise/fall time test.
  • OCP/OPP/OVP test, load effect test
  • Ripple sampling and detection function
  • Independent short circuit test function (only valid in CC, CV, CR, CP mode)
  • Over-voltage, under-voltage, over-current, over-power, overheat and anti-reverse connection protection
  • List mode self-storage, support external U disk save and call, support U disk upgrade system
  • List of self-starting voltage functions, over-voltage short-circuit voltage limiting function
  • Screenshot and list save and recall function.

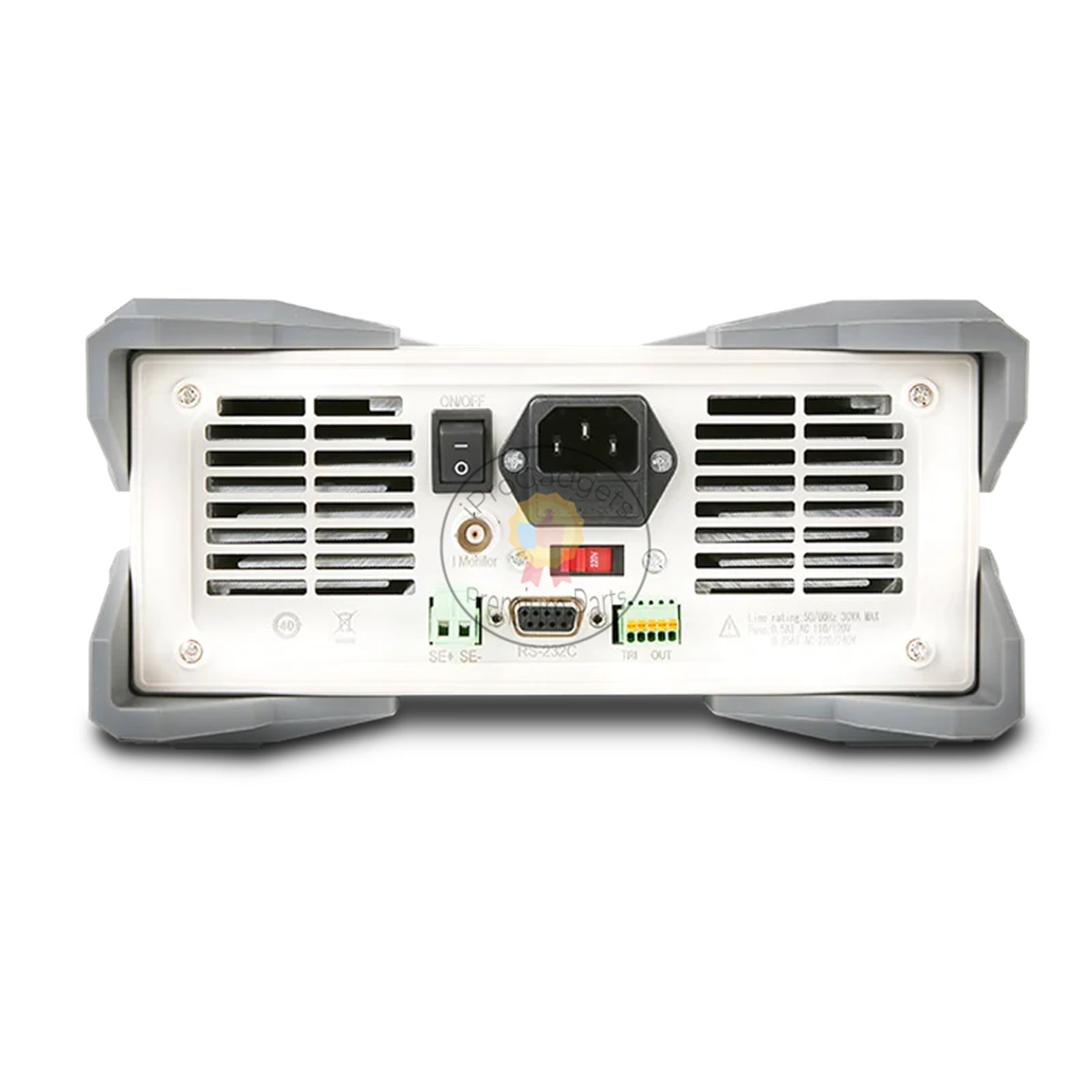

  • Remote voltage compensation input function, current remote monitoring function, external trigger function
  • Intelligent temperature control fan, power failure memory function
  • Standard RS-232C interface, support for SCPI protocols
  • Matching upper computer software to realize remote control and monitoring.
  • Applicable to standard half 2U cabinet
Specification:
  • Model: UTL8512B+
Rated (0~40℃):
  • Input voltage: 0~500V
  • Input Current: 0~1.5A/0~15A
  • Input power: 300W
  • Minimum Operating Voltage: 3V at 15A
Constant power in any mode:
  • Range: 0~50V/0~500V
  • Resolution: 0.1mV/1mV
  • Accuracy: ±(0.05%+0.025%FS)
Constant current mode:
  • Range: 0-1.5A/0-15A
  • Resolution: 0.1mA/1mA
  • Accuracy: ±(0.05%+0.05%FS)
Constant resistance mode:
  • Range: 0.1Ω-25kΩ
  • Resolution: 16bit
  • Accuracy: 0.1%+0.08FS
Constant power mode:
  • Range: 300W
  • Resolution: 10mW
  • Accuracy: ±(0.1%+0.1%FS)
Dynamic mode (CC mode):
  • T1 & T2: 50μs~99.999s/Res:1μs
  • Accuracy: 5μs ±100ppm
  • Rise/Fall Slope: 0.001~1.5A/μs
  • Minimum rise time: ≥10μs
Voltage readback value:
  • Range: 0-50V/0-500V
  • Resolution: 0.1mV/1mV
  • Accuracy: ±(0.025%+0.025%F5)
Current readback value:
  • Range: 0-3A/0-15A
  • 0.01mA/0.1mA
  • Accuracy: 0.05%+0.05%FS
Power readback value:
  • Range: 300W
  • Resolution: 10mW
  • Accuracy: ±(0.1%+0.1%FS)
  • Over-power protection: ≥1.05 times the set value delayed protection; ≥1.1 times the set value immediate protection; > (FS + 15WM) immediate protection
  • Over-current protection: ≥1.05 times the set value delay protection; ≥1.1 times the set value immediate protection; > (FS + 1.5A) immediate protection
  • Over-voltage protection: ≥1.05 times the set value delay protection; ≥1.1 times the set value immediate protection; > (FS + 3V) immediate protection
  • Over-temperature protection: ≥85℃
  • Input terminal impedance: 1MΩ
  • Fuse specification: 0.5A(110V)/0.25A(220V)
  • Power requirements: 110V/220V 50/60Hz
  • Measurement resolution: 0.1mV/0.1mA
  • Basic operation mode: CC/CV/CR/CP
  • Test Function: Dynamic Test, Overload Test, Automatic Test, List Test, Battery Test, CR-LED
  • Protection functions: over-voltage, low-voltage, over-current, over-power, overheat, anti-reverse connection and other protections
  • Power-on warm-up: at least 15 minutes
  • System settings: Chinese and English switching, key tone setting.
  • Data storage: U disk storage
  • Communication interface and protocol: RS-232C interface and SCPI protocol
  • Upper computer software: Yes
  • Operating temperature: 0℃~40 ℃
  • Storage temperature: -10℃~60 ℃
  • Operating humidity: 20%~80% (non-condensing)
  • Storage humidity: 20%~80% (non-condensing)
  • Operating altitude: ≤2000 meters
Package includes:
  • 1 x Electronic Load Meter
  • 1 x Power Cable
