Replacement New Display NE156QHM-NX1 NE156QHM-NZ1 LP156QHG-SPV1 QHD 2560x1440 240Hz LCD Screen Panel

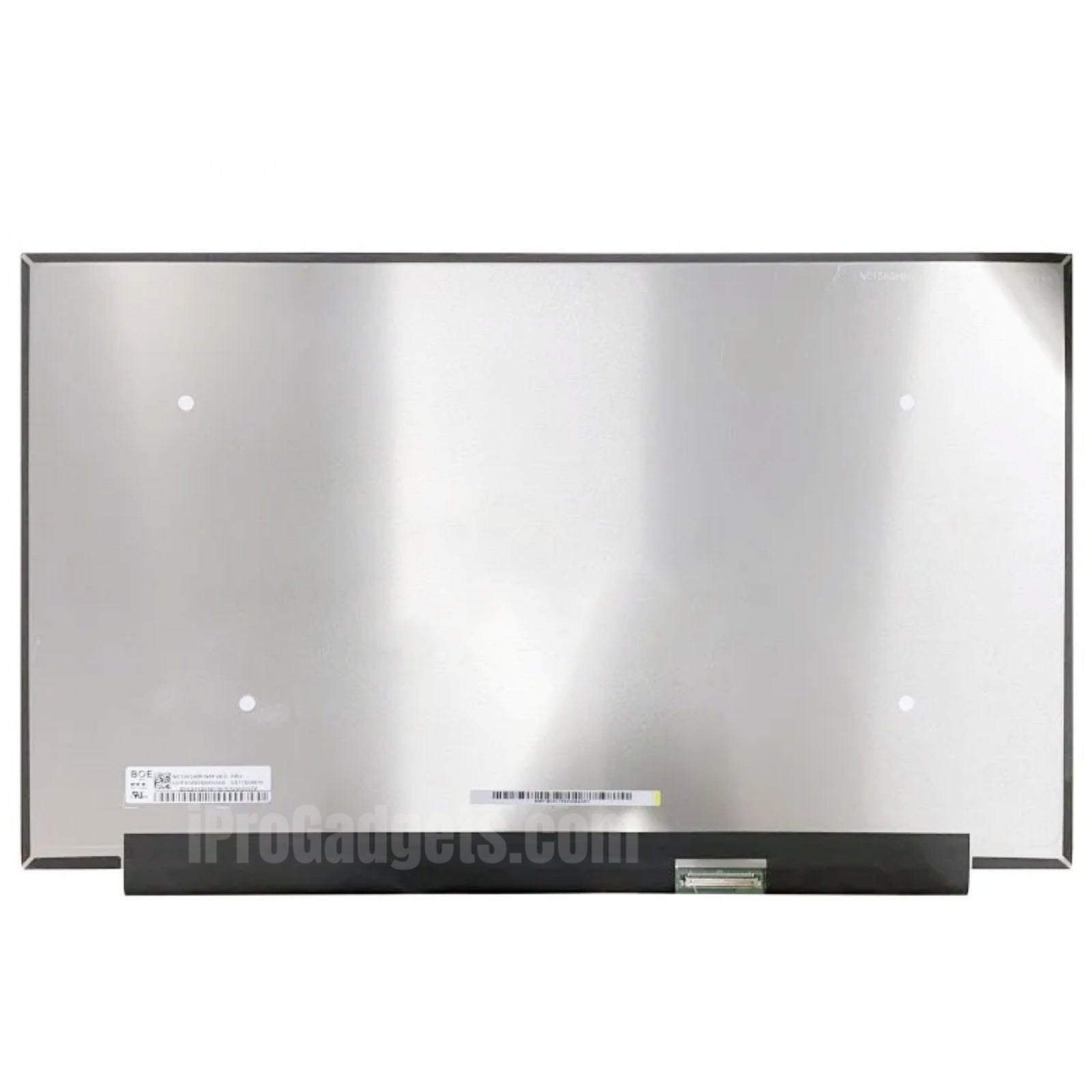

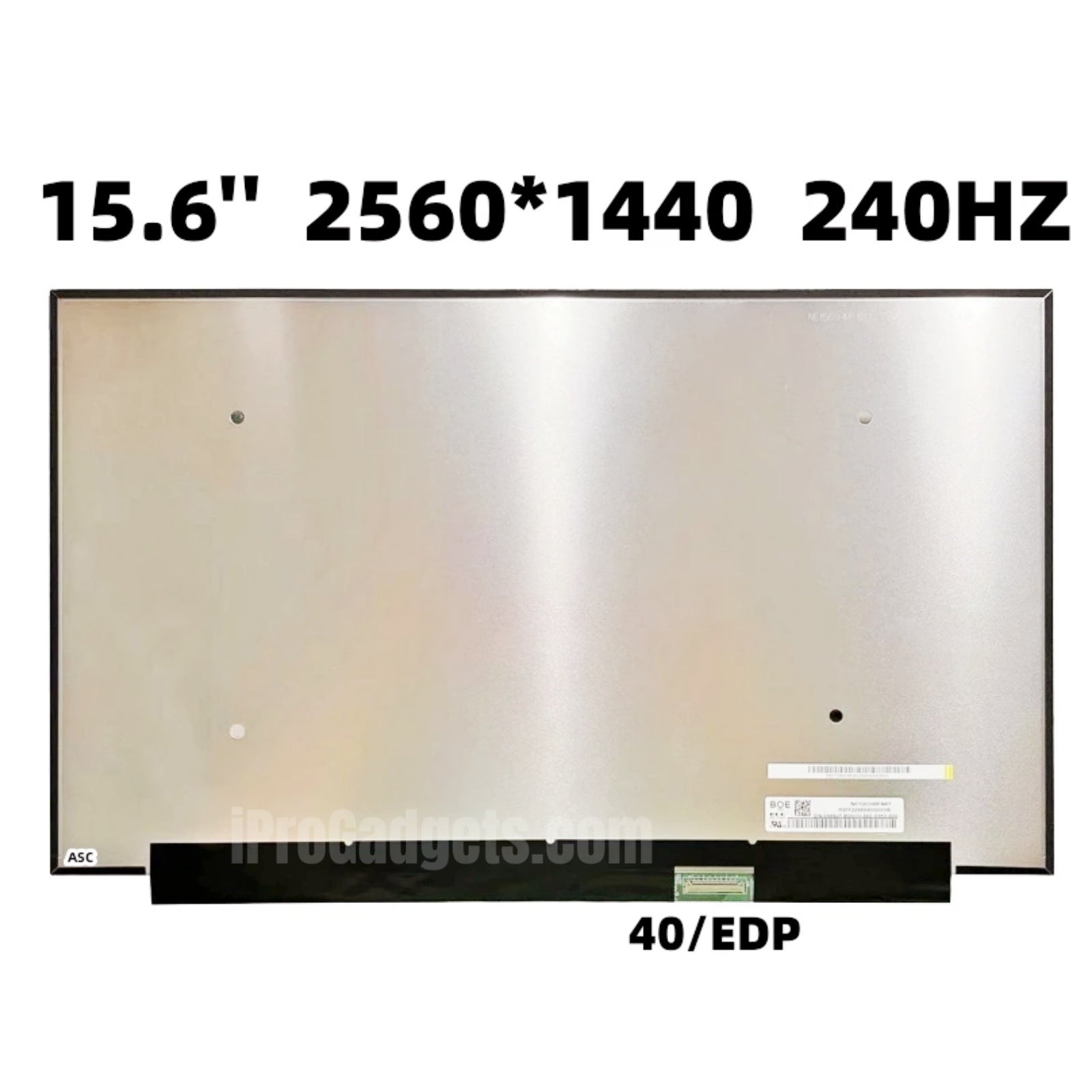

iProGadgets Repair Parts NE156QHM-NX1 NE156QHM-NZ1 LP156QHG-SPV1 15.6" QHD IPS LED Display Panel - 2560x1440, 240Hz, 100% sRGB, Non-Touch
Size: 15.6 inches (diagonal)
Resolution: 2560 x 1440 (QHD, WQHD), 16:9 aspect ratio
Pixel Density: ~188 PPI
Panel Type: IPS (In-Plane Switching) for wide viewing angles
Refresh Rate: 240 Hz
Brightness: 300 cd/m² (typical)
Contrast Ratio: 1000:1 (typical)
Color Gamut: 100% sRGB, ~72% NTSC
Surface Treatment: Anti-Glare (matte)
Response Time: 9 ms (Tr+Td, typical), 3 ms (G-to-G with overdrive)
Backlight: WLED (White Light Emitting Diode), edge-lit, ~15,000 hours lifespan
Interface: eDP (embedded DisplayPort), 40-pin connector, 0.4mm pitch, located bottom right
Power Supply: 3.3V (typical)
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
