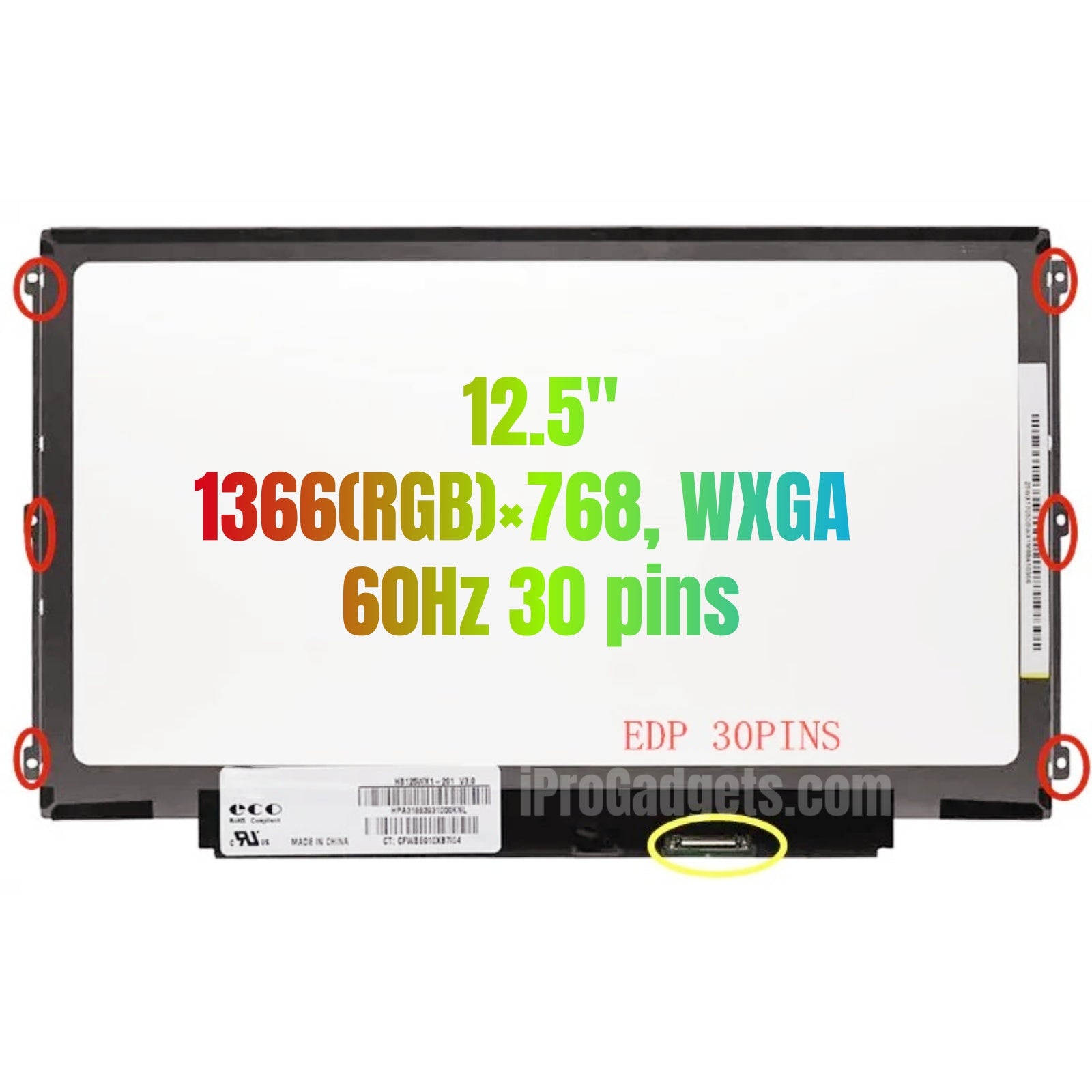

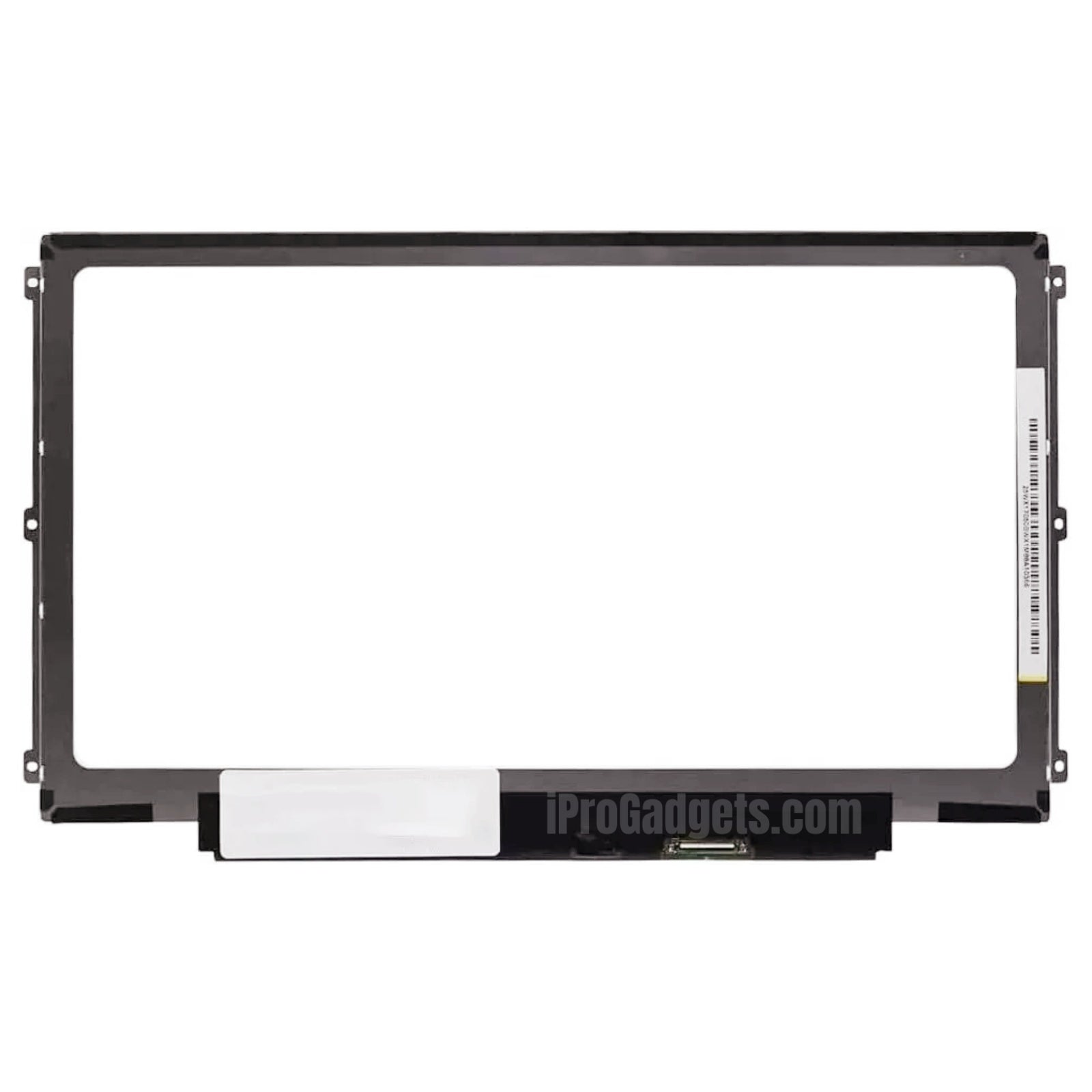

Replacement New Display HB125WX1-100 HB125WX1-201 12.5" WXGA eDP LED LCD Screen Panel
iProGadgets Repair Parts 12.5 inch LCD Display HB125WX1-100 HB125WX1-201 Laptop Screen Replacement - 1366x768 WXGA LED
Screen Size: 12.5 inches (diagonal)
Resolution: 1366 x 768 pixels (WXGA, HD)
Aspect Ratio: 16:9
Panel Type: a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display)
Display Mode: TN (Twisted Nematic), Normally White, Transmissive
Brightness: 200 cd/m² (typical)
Contrast Ratio: 300:1 (typical, transmissive)
Viewing Angle: 45/45/15/35 degrees (typical, Left/Right/Up/Down, CR≥10)
Response Time: 16 ms (typical, Tr+Td)
Color Depth: 262K colors (6-bit), approximately 45% CIE1931 color gamut
Backlight: WLED (White Light Emitting Diode), edge-lit, with LED driver, rated for 15,000 hours
Surface Treatment: Antiglare
Signal Interface: eDP (Embedded DisplayPort), 1 lane, 30-pin connector
Power Supply: 3.3V (typical)
Touchscreen: None (non-touch panel)
Refresh Rate: 60 Hz
Typical Use: Laptop displays
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
