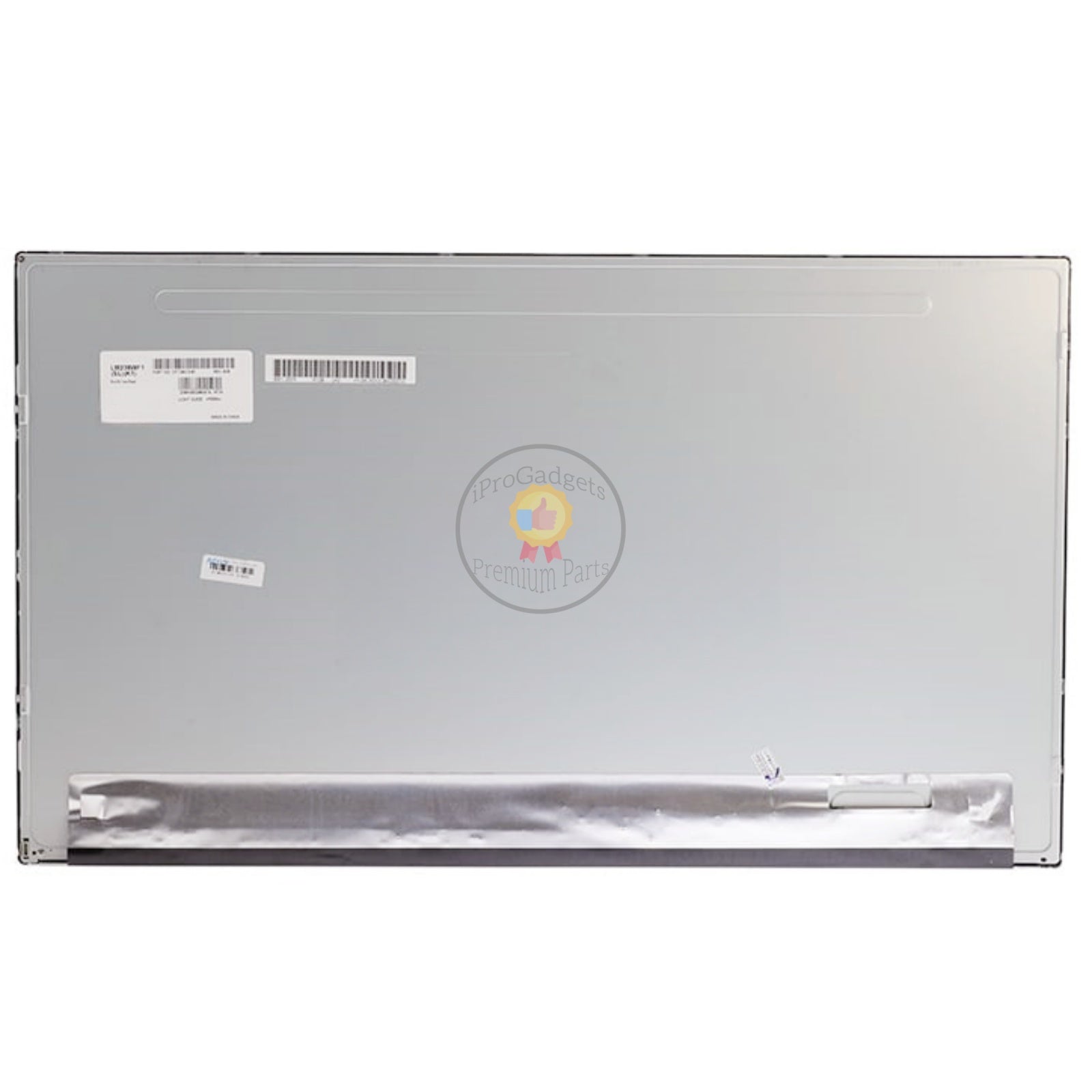

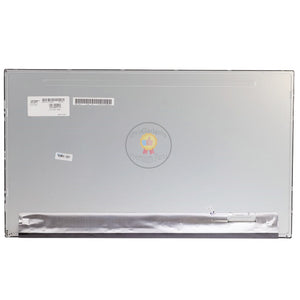

Replacement 23.8 inch LCD Screen LM238WF1-SLK1 Display Panel All In One
iProGadgets Repair Parts Pantalla Todo En Uno 23.8 inch LM238WF1-SLK1
Pantalla Todo En Uno 23.8 inch FHD (1920×1080) A-SI TFT-LCD , LCM; WLED; 6 Pines Posterior Inferior Izquierdo; 30 Pines Posterior Inferior Derecho

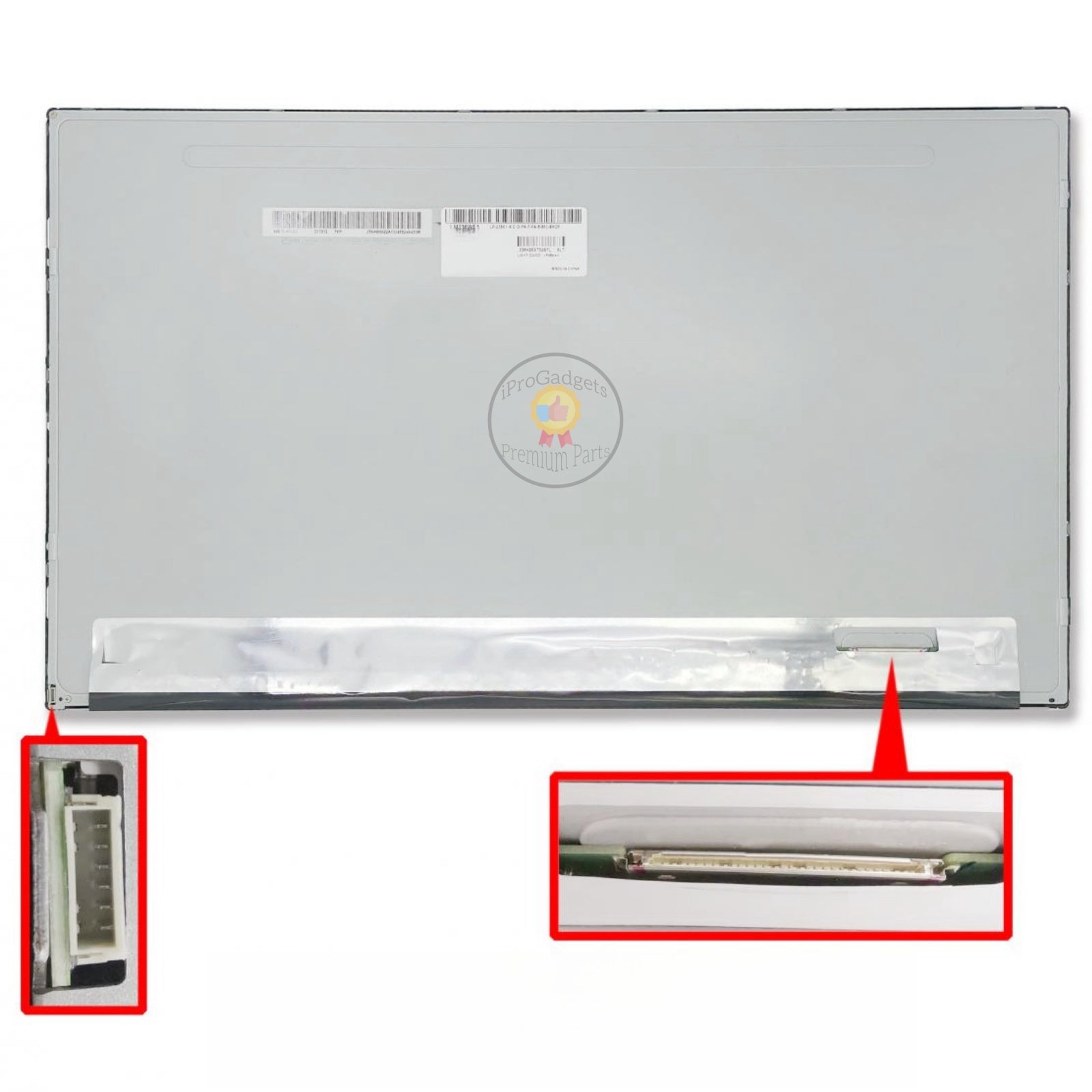

Screen All In One 23.8 inch FHD (1920×1080) A-SI TFT-LCD , LCM; WLED; 6 Pins Rear Down Left;30 Pins Rear Down Right
LM238WF1-SLK1
LM238WF1 (SL) (K1)
Diagonal Size 23.8"
Resolution 1920(RGB)×1080, FHD
Outline Dim. 543(H)×317.4(V) ×11.7(D) mm
Frame Rate 60Hz
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Model P/N LM238WF1-SLK1
Panel Type a-Si TFT-LCD, LCM
Touch Panel Without
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
