Aneng SZ19 6000 Counts Digital Multimeter True RMS AC/DC Voltage Current Meter Ohm Hz Capacitance NCV Detector Analog Tester

  • $16.00
    Unit price per
Shipping calculated at checkout.


iProGadgets Repair Tools Aneng SZ19 6000 Counts Digital Multimeter True RMS AC/DC Voltage Current Meter Ohm Hz Capacitance NCV Detector Analog Tester

Features:

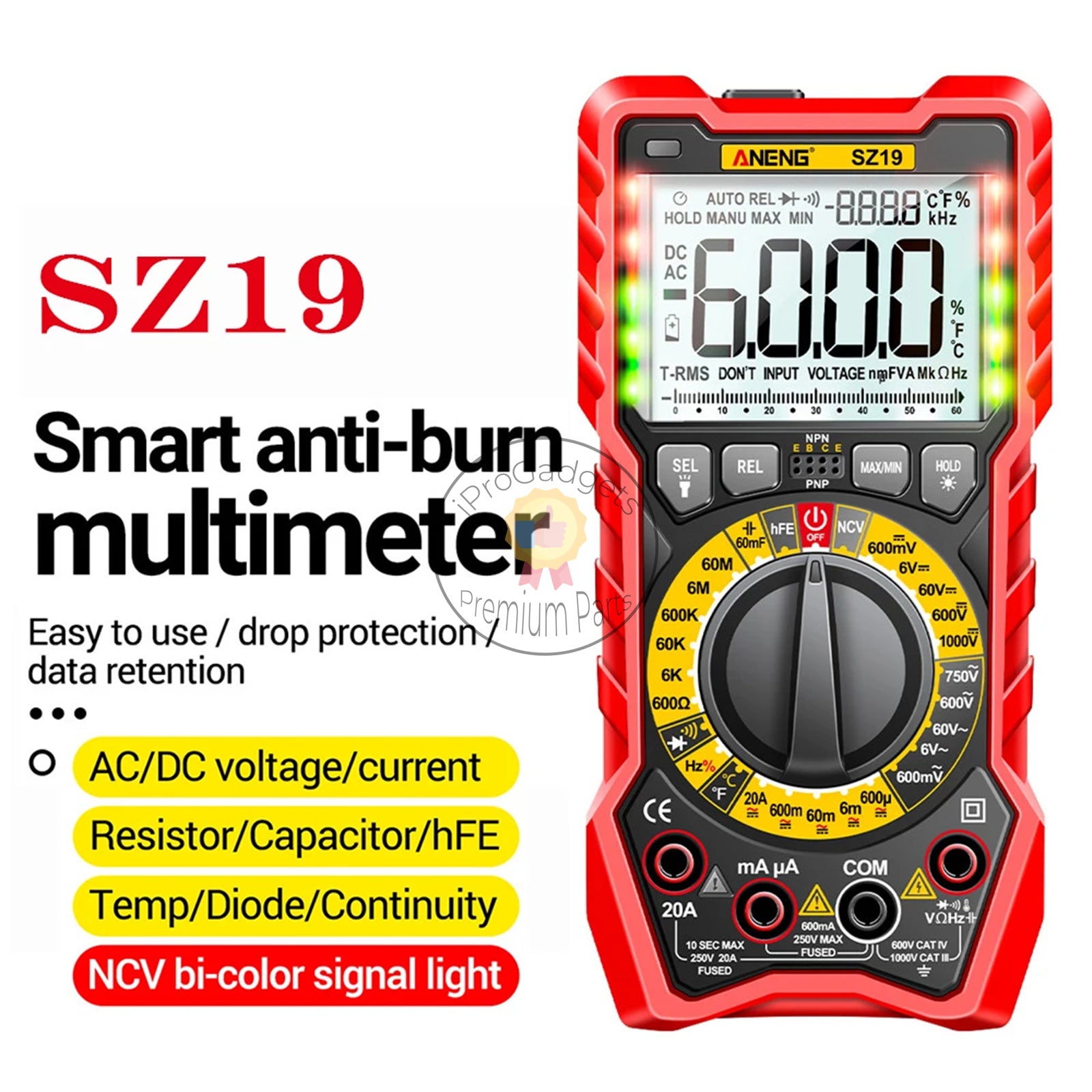

  • Smart anti-burn multimeter, easy to use, drop protection, data retention

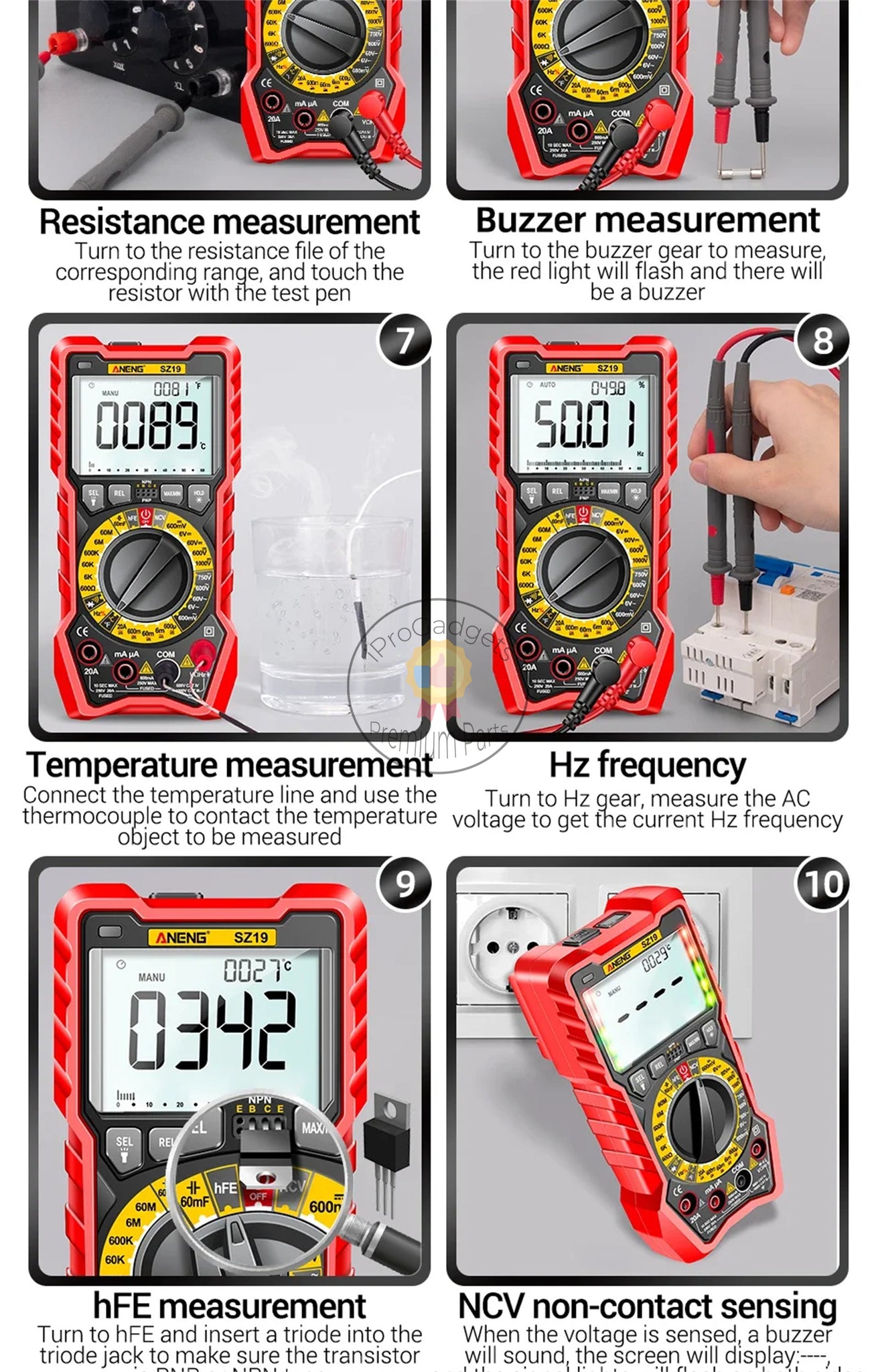

  • AC/DC voltage/current, Resistor/Capacitor/hFE, Temp/Diode/Continuity, NCV bi-color signal light

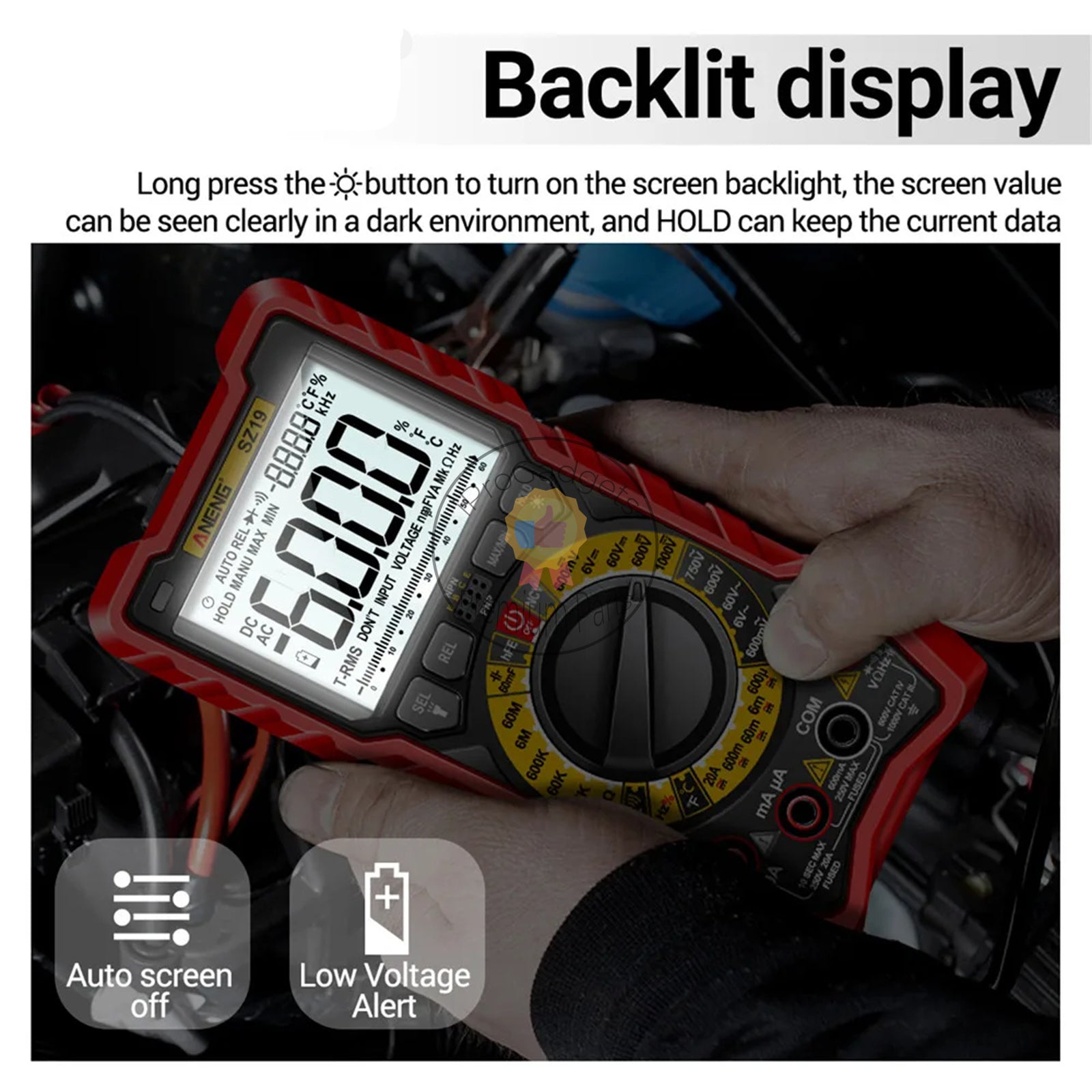

  • Long press the "Light" button to turn on the screen backlight, the screen value can be seen clearly in a dark environment, and HOLD can keep the current data
  • Long press the flashlight button to turn on the flashlight, so that you are no longer afraid of seeing the measurement position in the dark  environment
  • Real material to protect the body, safe and secure groove fit, effective anti-fall silicone material, protect hardware from damage
  • With a pen slot on the back, it is accurate, and the bracket effectively supports the multimeter

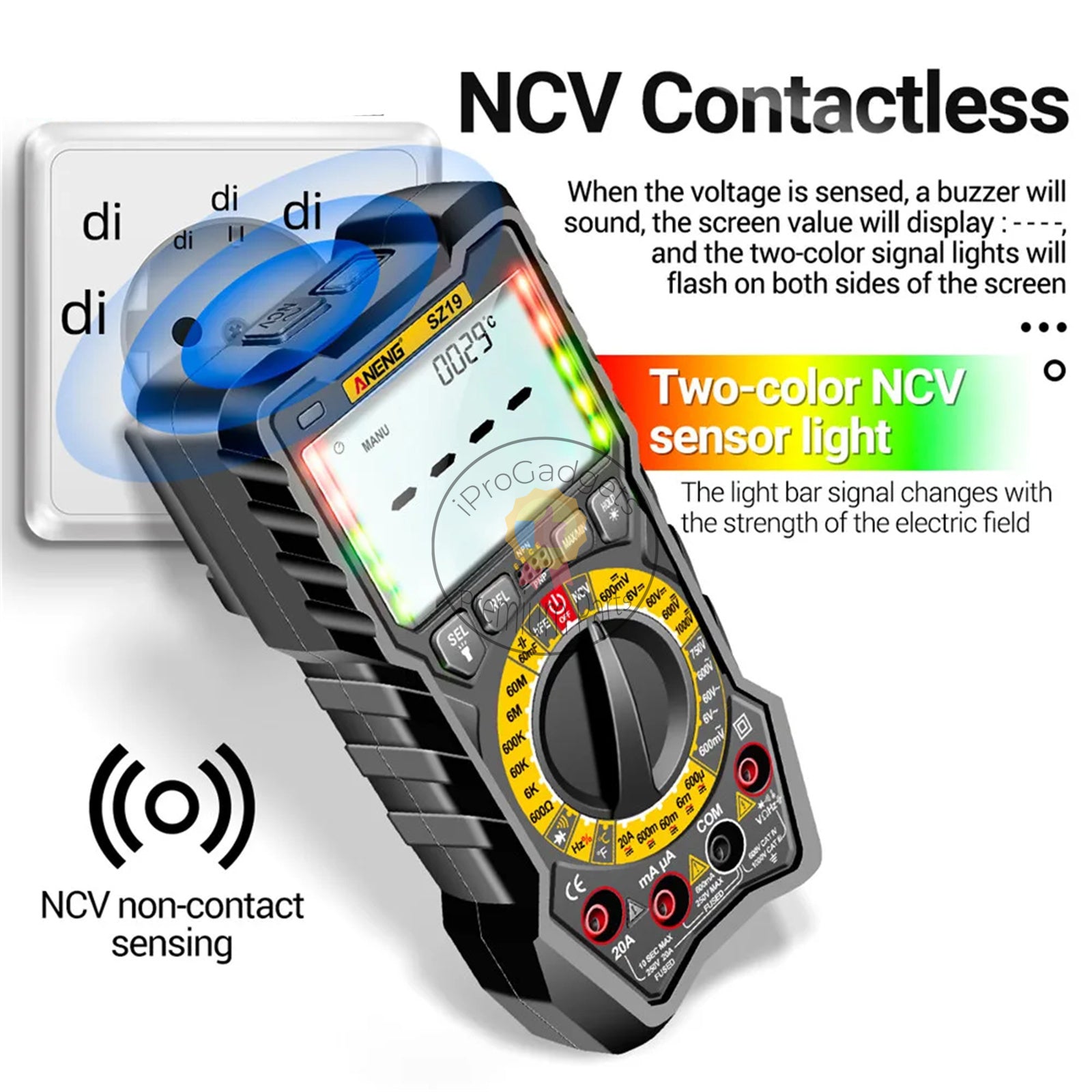

  • When the voltage is sensed, a buzzer will sound, the screen value will display ---- and the two-color signal lights will flash on both sides of the screen
  • Two-color NCV sensor light, the light bar signal changes with the strength of the electric field

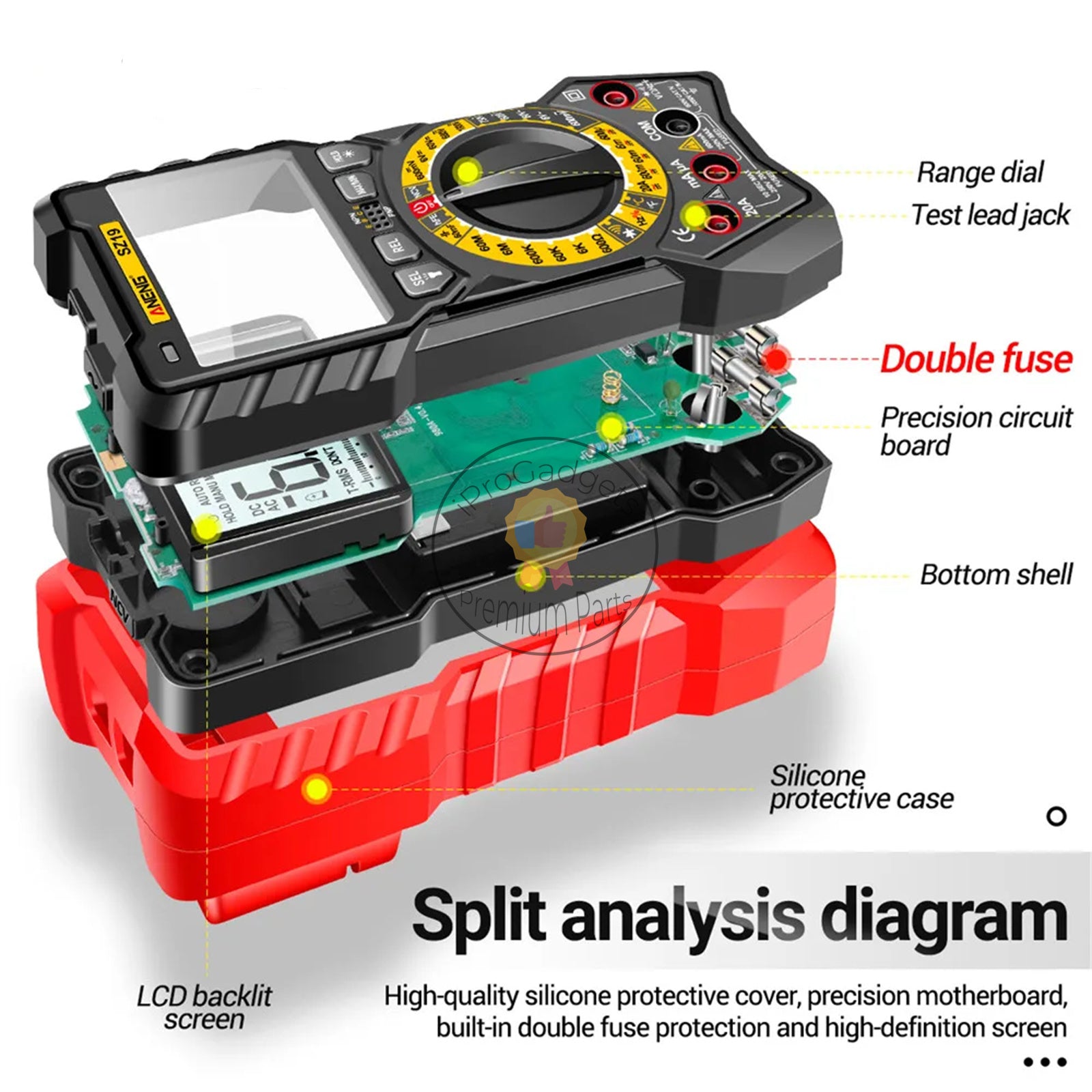

  • High-quality silicone protective cover, precision motherboard, built-in double fuse protection, and high-definition screen
Specification:
  • AC Voltage: 600mV~750V 0.1mV~1V ±(1.0%+3)
  • DC Voltage: 600mV~1000W 0.1mV~1V ±(0.5%+3)
  • AC Current: 600uA~20A 0.1uA~0.01A ±(1.5%+3)
  • DC Current: 600uA~20A 0.1uA~0.01A ±(1.2%+3)
  • Resistance: 600KΩ~60MΩ 0.1Ω~0.01MΩ ±(1.5%+3)
  • Capacitance: 0nF~60mF 0.001nF~0.01mF ±(5.0%+20)
  • Hz Frequency: 9.999Hz~9.999MHz 0.001Hz~0.001MHz ±(0.1%+2)
  • Duty Cycle: 1%~99% 0.1% ±(0.1%+2)
  • Temperature: (-20~1000)℃ 1℃; (4~1832)℉ 1℉ ±(2.5%+5)
  • Diode: Yes
  • NCV: Yes
  • Triode: Yes
  • Automatic Shut-down: Yes
  • On-off Detection: Yes
  • Silicone Sheath: Yes
  • Low Battery Indicator: Yes
  • HOLD Data Retention: Yes
  • Flashlight Lighting: Yes
  • Battery Model: 3 AA batteries(Not Includes)
  • Material: ABS/Silicone
  • Maximum Digital Display: 6000 digital display
  • Screen Display: HD backlit screen
  • Pen Length: 97cm/38.1in
  • Pen Material: PVC/Brass
Package includes:
  • 1 x Multimeter (without Battery)
  • 1 x Test Leads
  • 1 x Thermocouple
