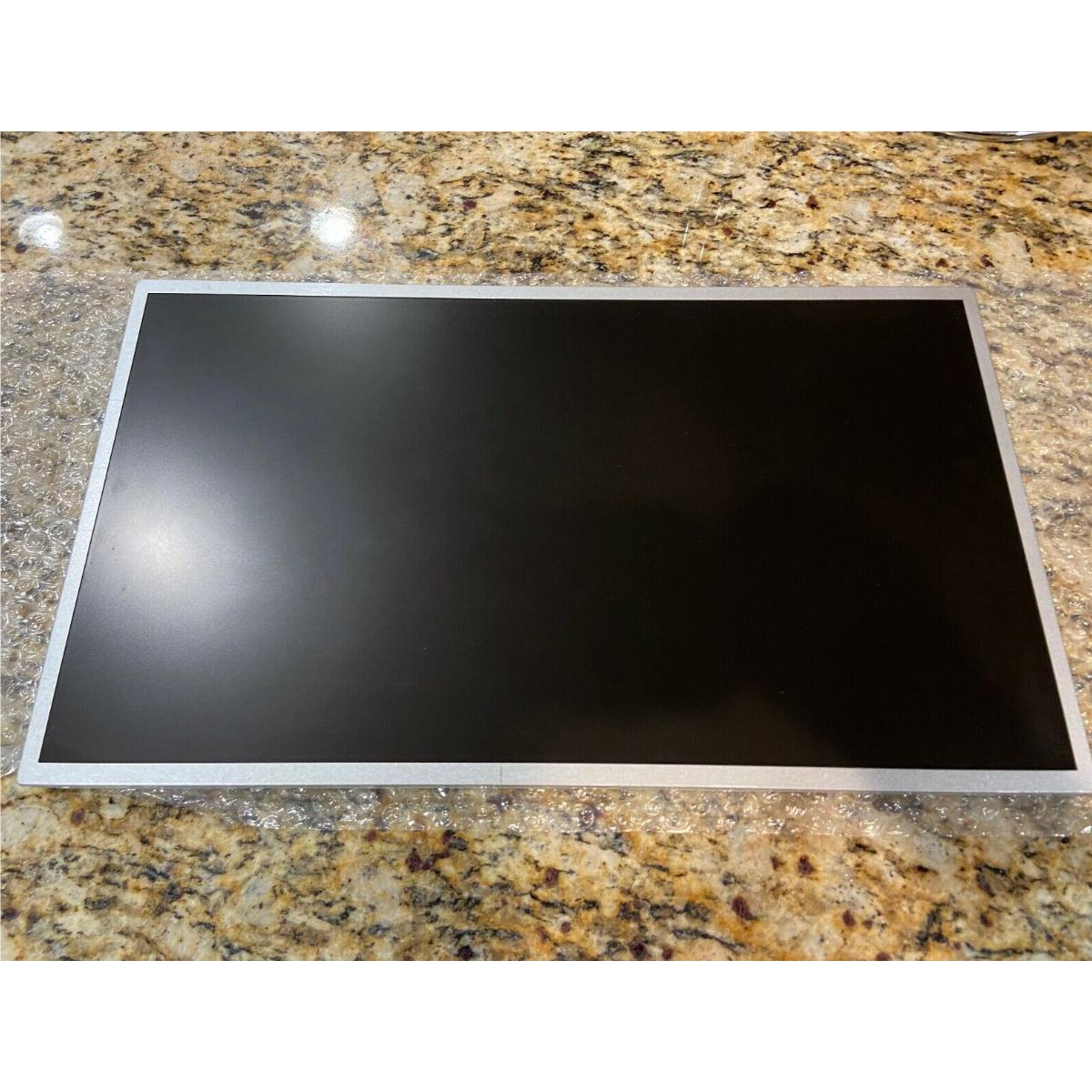

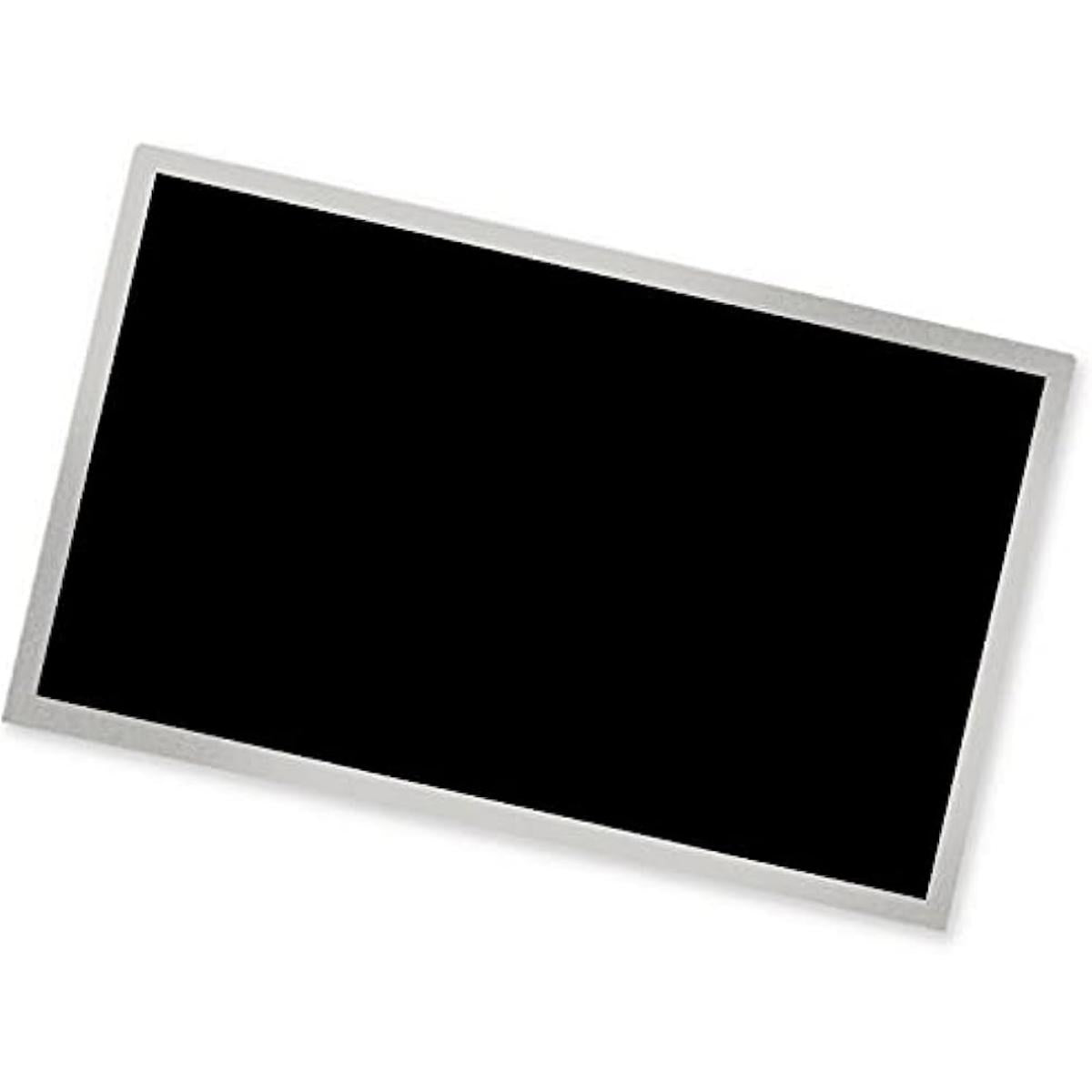

20 Inch LCD Screen Panel M200O1-L07
REPLACEMENT TFT LCD PANEL M200O1-L07 TFT-LCD Display Panel A-Si
20.0 inches diagonal

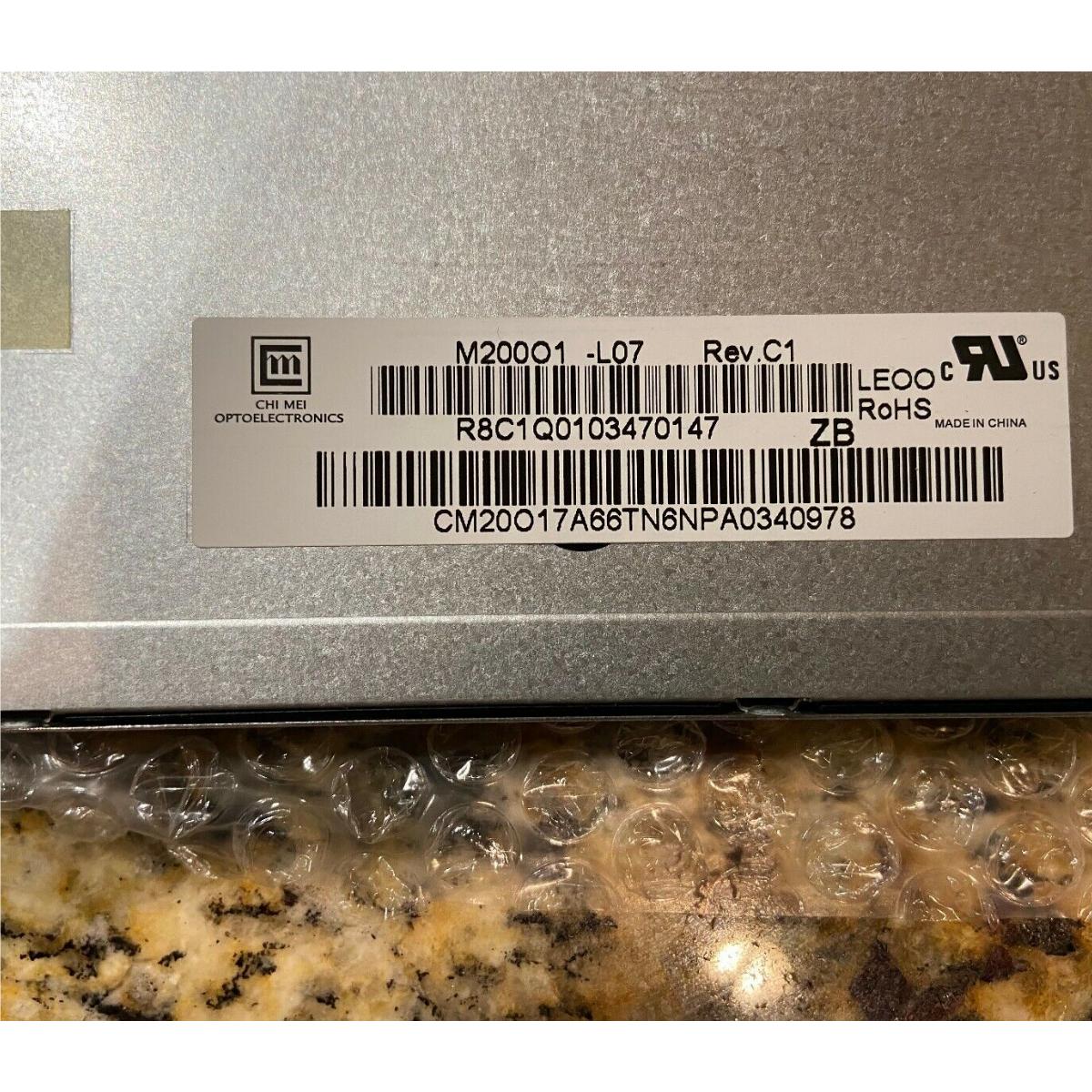

Panel model: M200O1-L07
Panel type: a-Si
TFT-LCD Panel Size: 20.0 inch
Resolution: 1600 (RGB) × 900 (HD+)
Display mode: TN, usually white,
Transmission surface: anti-glare (25% haze), hard coating (3H) Brightness: 200 cd/m2 (typical) Contrast Ratio: 700:1 (typical)
Display colors (transmissive): 16.7 M (6-bit + Hi-FRC)
Response time: 1/4 (typical)
(Tr/Td) (ms) View angle: 45/45/20/45 (typical) (CAR? 10) (L/R/U/D)
Frequency: 120 Hz
Lamp type: CCFL
Signal interface: LVDS (2ch, 8-bit)
Input voltage: 5.0 V (typical)
WARNING
* Make sure the original is the same as ours. The
Installation guide is not included. Consult an expert for use.
