150V 150W 20A Battery Capacity Tester DC CNC Electronic Load Tester Lithium Charge Discharge Monitor Checker
iProGadgets Repair Tools 150V 150W 20A Battery Capacity Tester DC CNC Electronic Load Tester Lithium Charge Discharge Monitor Checker
Features:
Features:
- 2.4-inch color screen, clear vision: 2.4-inch high-definition color screen, the data display is vivid and intuitive, clearly visible
- Accurate temperature control: with an NTC sensor, real-time temperature monitoring, to ensure reliable test results, prevent temperature difference error detection
- Bilingual interface: Chinese and English switch freely to meet the needs of global users, convenient and efficient operation
- Four safety protection: over-voltage, over-current, over-temperature, over-power automatic protection, to ensure safe and worry-free use
- One key to zero: simplify data management, one key to quickly zero the accumulated data, improve work efficiency
- Working voltage: DC12V Equipped with 12V 1A power adapter
- Load voltage (U): DC0~150V
- Load current (I): DC0~20A
- Load power (P): 0~150W (Maximum load 60W above 120V)
- P=U×I≤150W

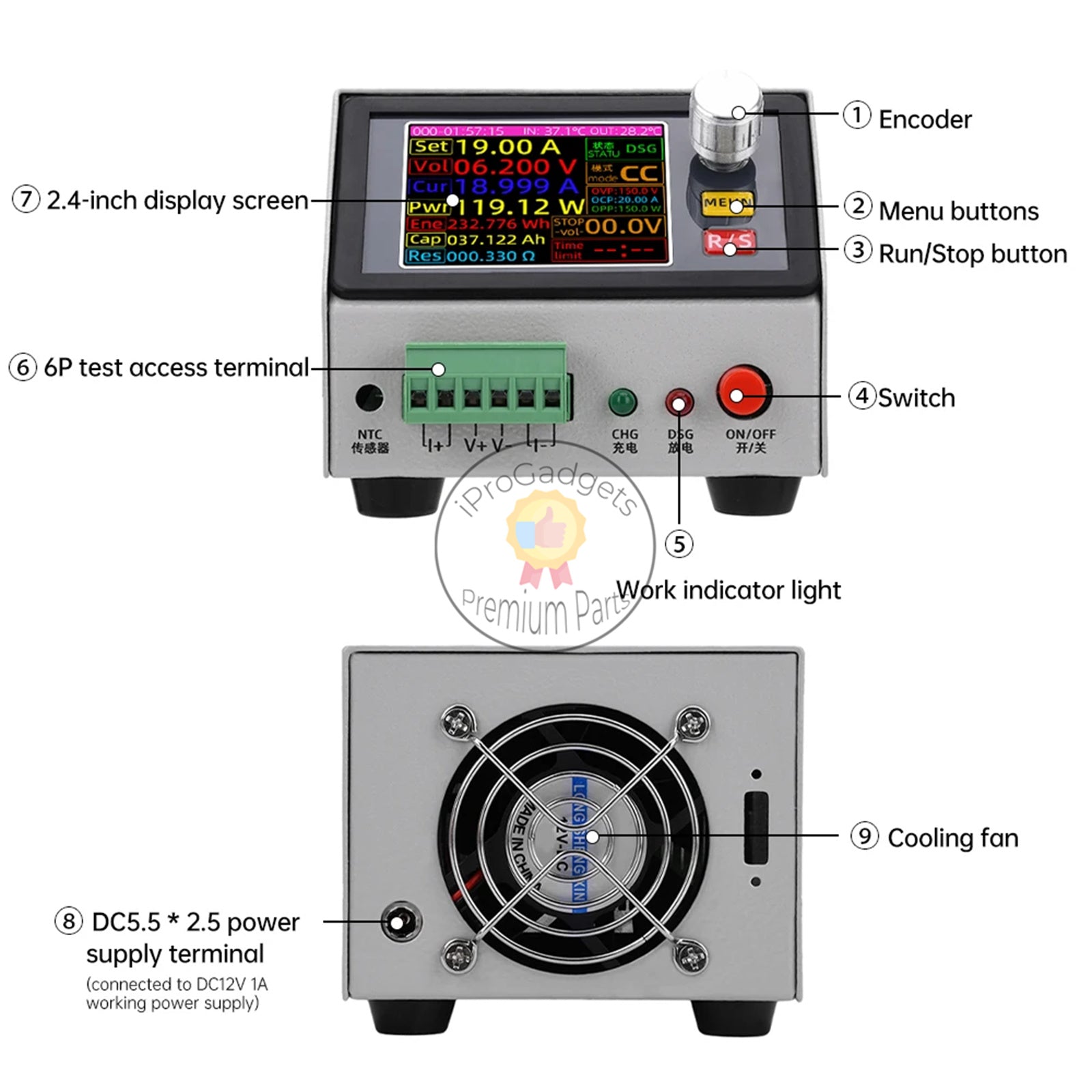

- Wiring: A+ V+ V- A- four-wire system, downward compatible with the two-wire system
- Electricity metering limit: 999999.9Wh
- Capacity metering upper limit: 999999.9Ah

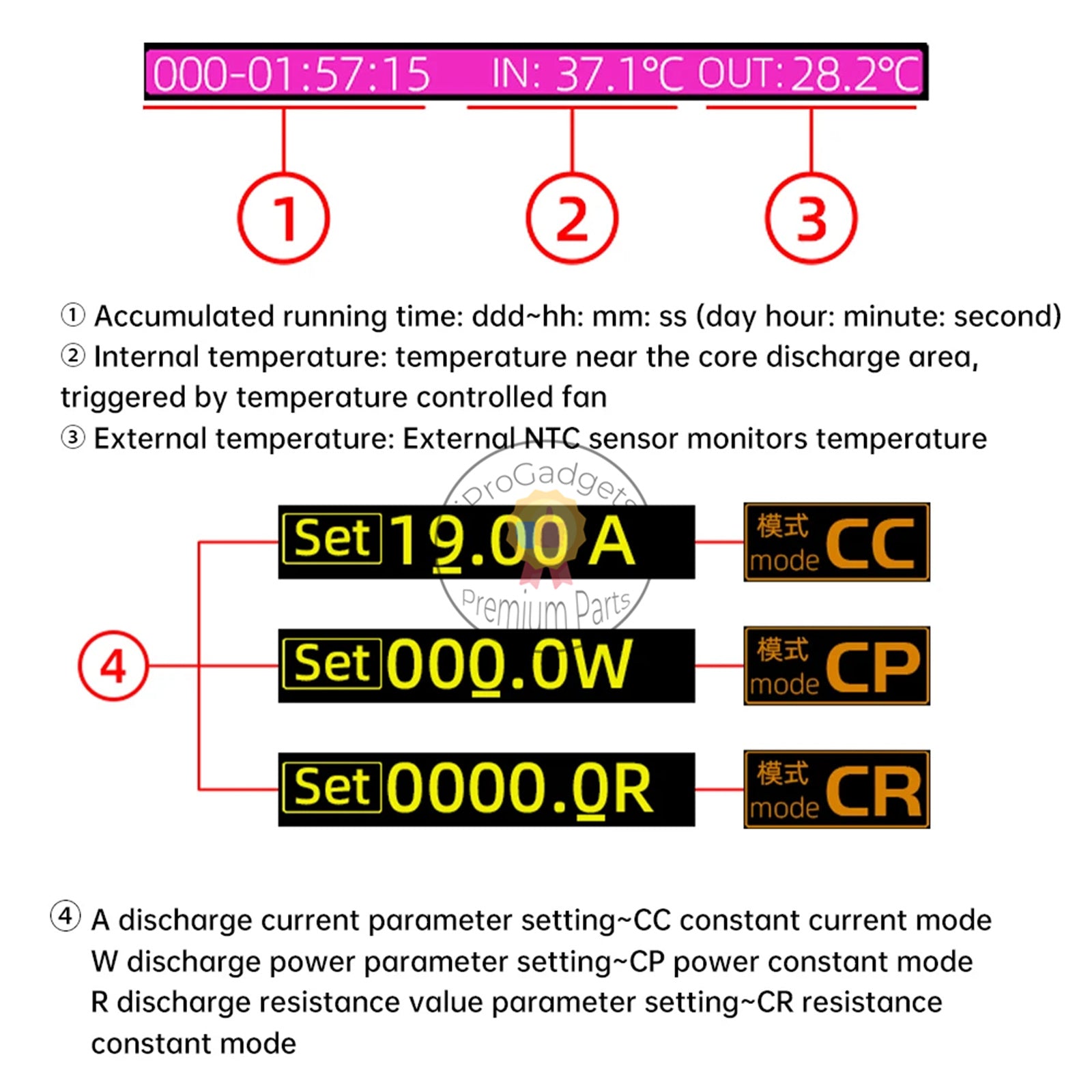

- Accumulative timing range: ddd:hh:mm:ss (days:hours:minutes:seconds)
- Operating modes: Three modes
- CC-constant current mode CP-constant power mode CR-constant resistance mode
- Over-voltage protection: Support maximum 150V adjustable over-voltage protection
- Over-current protection: Support for maximum 20A adjustable over-current protection
- Over-power protection: Support maximum 150W adjustable over-power protection
- Over-temperature protection: Internal temperature >75℃, trigger over-temperature protection
- Voltage limit discharge: Also called low voltage protection, support, the default is not limited to voltage discharge, according to the demand for their own settings
- Time-limited discharge: support up to 99 hours: 59 minutes time-limited discharge
- Heat dissipation mode: Programmable fan, automatic operation when internal temperature ≥40℃ or current >3A
- External Temperature Measurement: Connect the NTC 3950 10K 1% temperature sensor to measure and display the temperature of 0~100℃
- Chinese and English interface switching: Support
- Zeroing accumulated data: Support
- Voltage and current no-load zeroing: Support
- Voltage open calibration: Support
- Current Open Calibration: Support
- Screen Brightness Adjustment: Support
- Screen sleep standby setting: Support
- PC software online: Not support
- Restore factory settings: Support

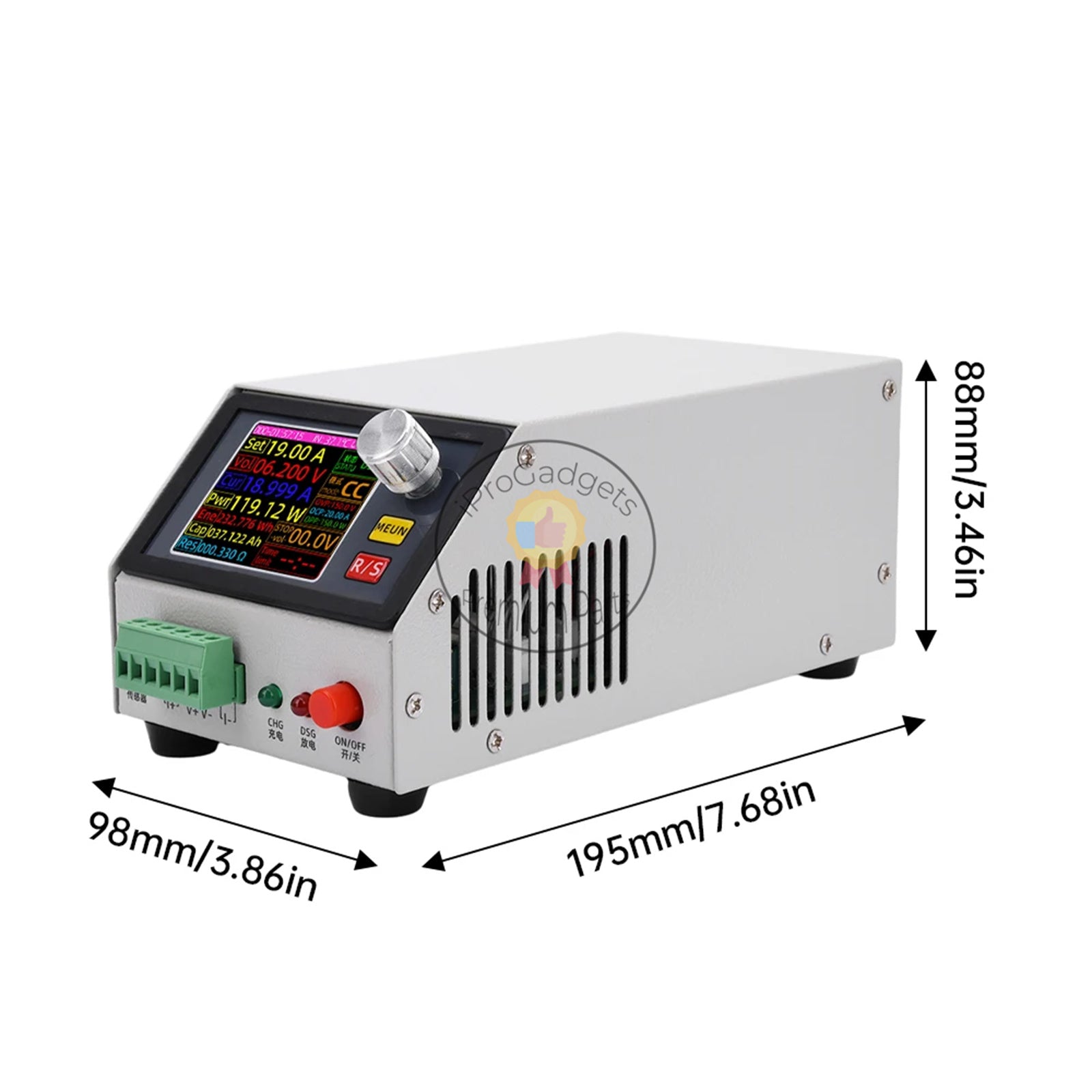

- Product size: 195*98*88mm

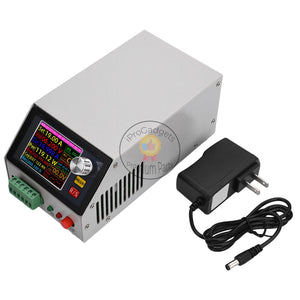

- 1 x Electronic Load Tester
- 1 x Power Cable
