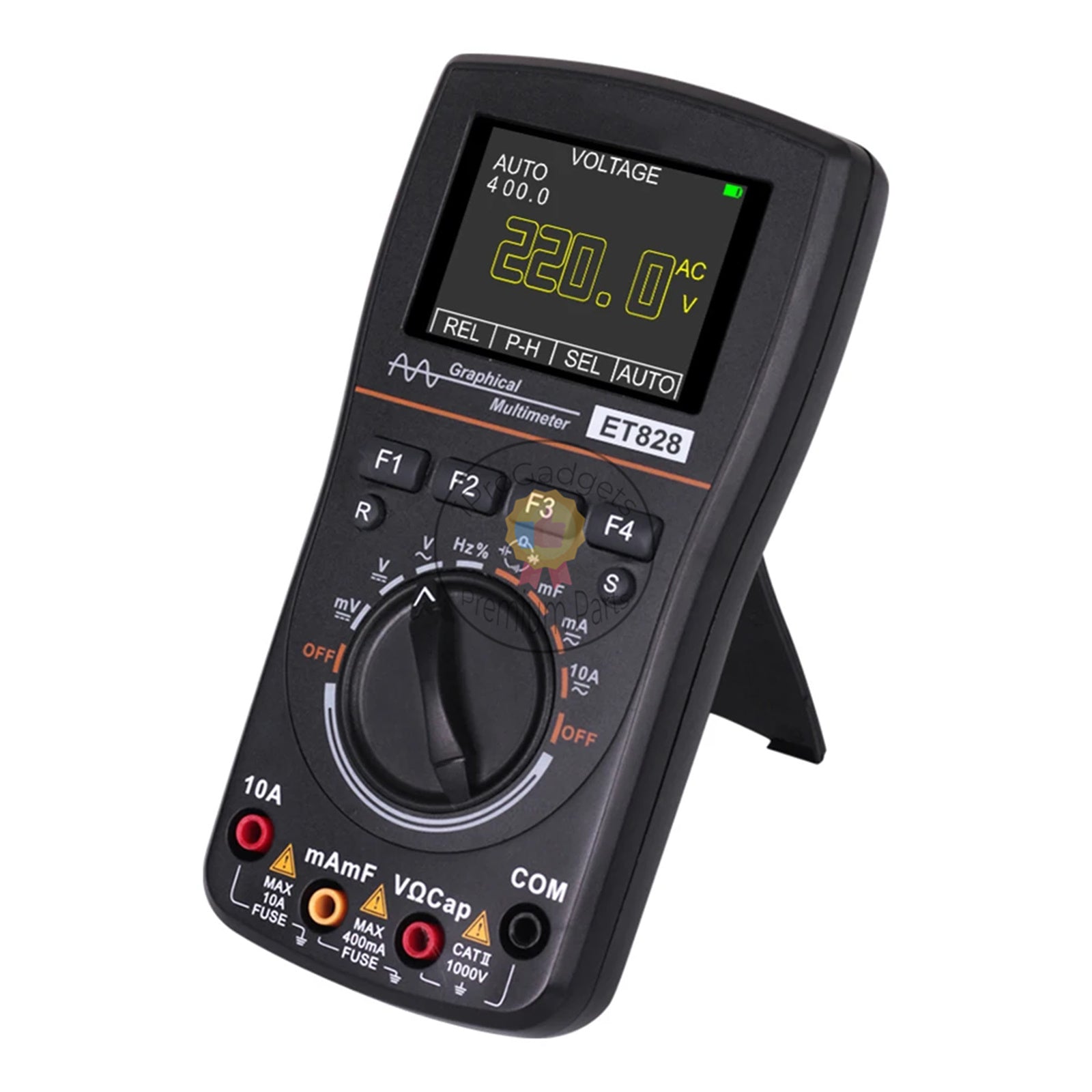

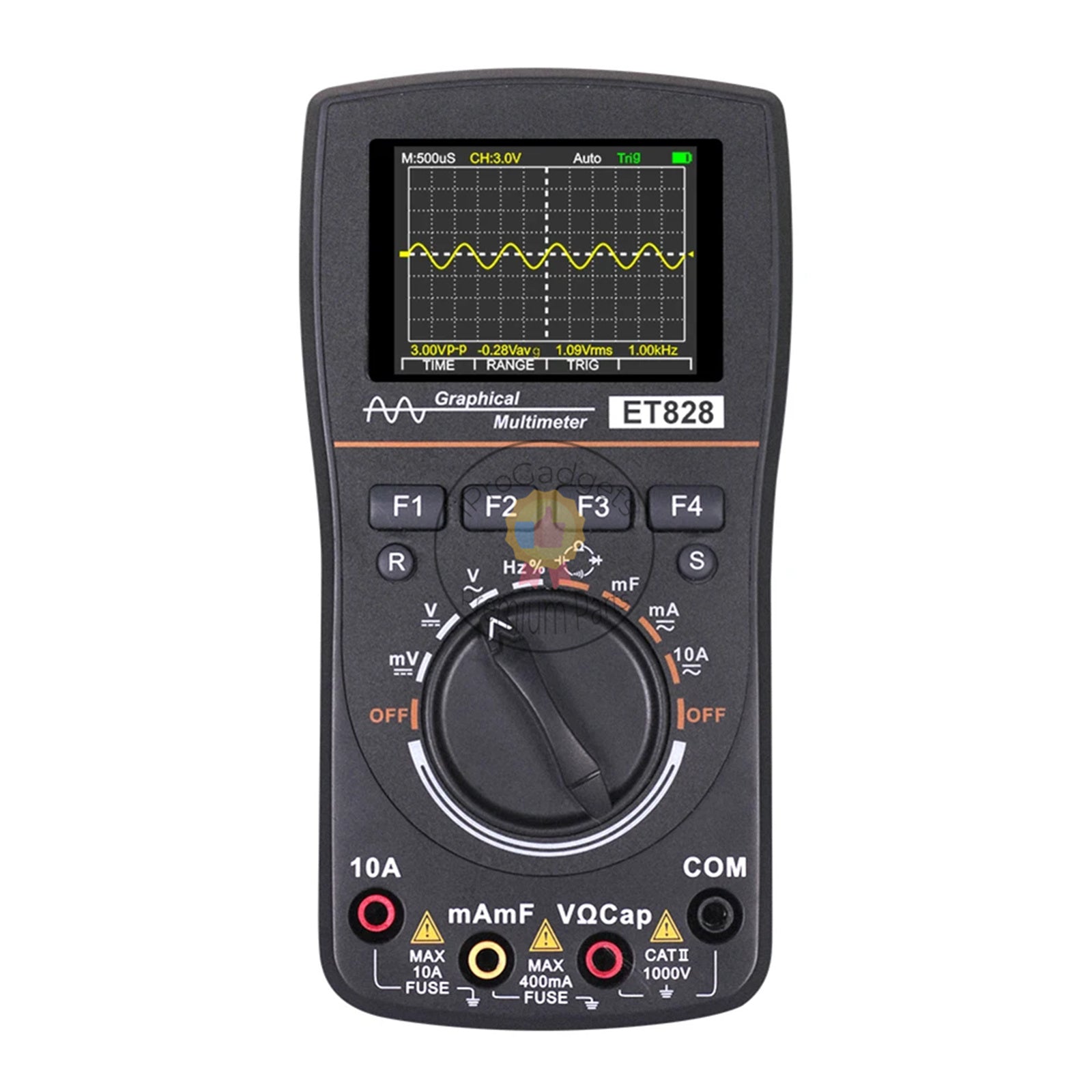

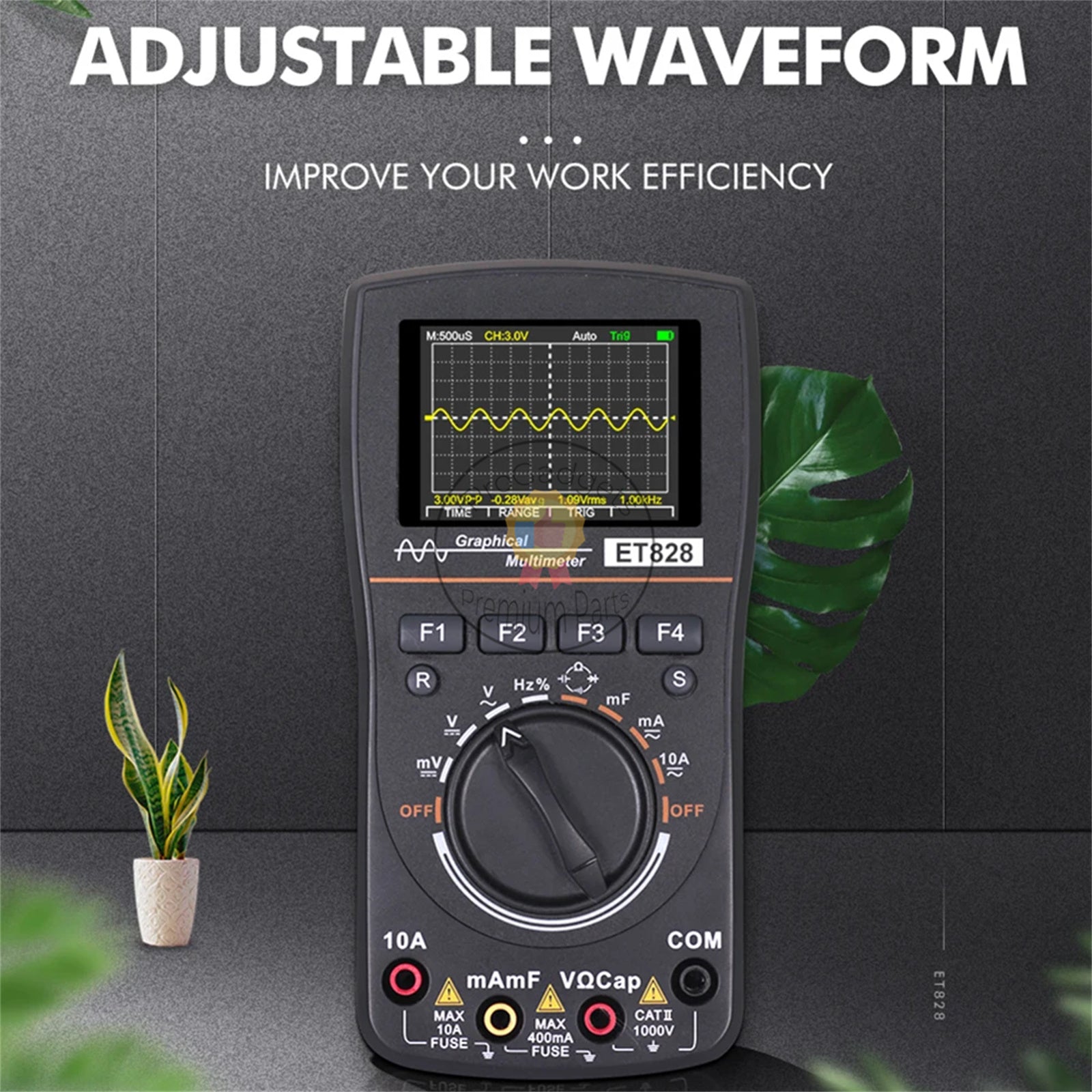

ET828 2 in 1 Oscilloscope Multimeter 2.5Msps Digital 1MHz Strong Toughness Electric Portable Resistance Test Meter

  • $43.00
    Einzelpreis pro


iProGadgets Repair Tools ET828 2 in 1 Oscilloscope Multimeter 2.5Msps Digital 1MHz Strong Toughness Electric Portable Resistance Test Meter

Features:
  • One-button waveform capture, intelligent and easy to use, improves work efficiency

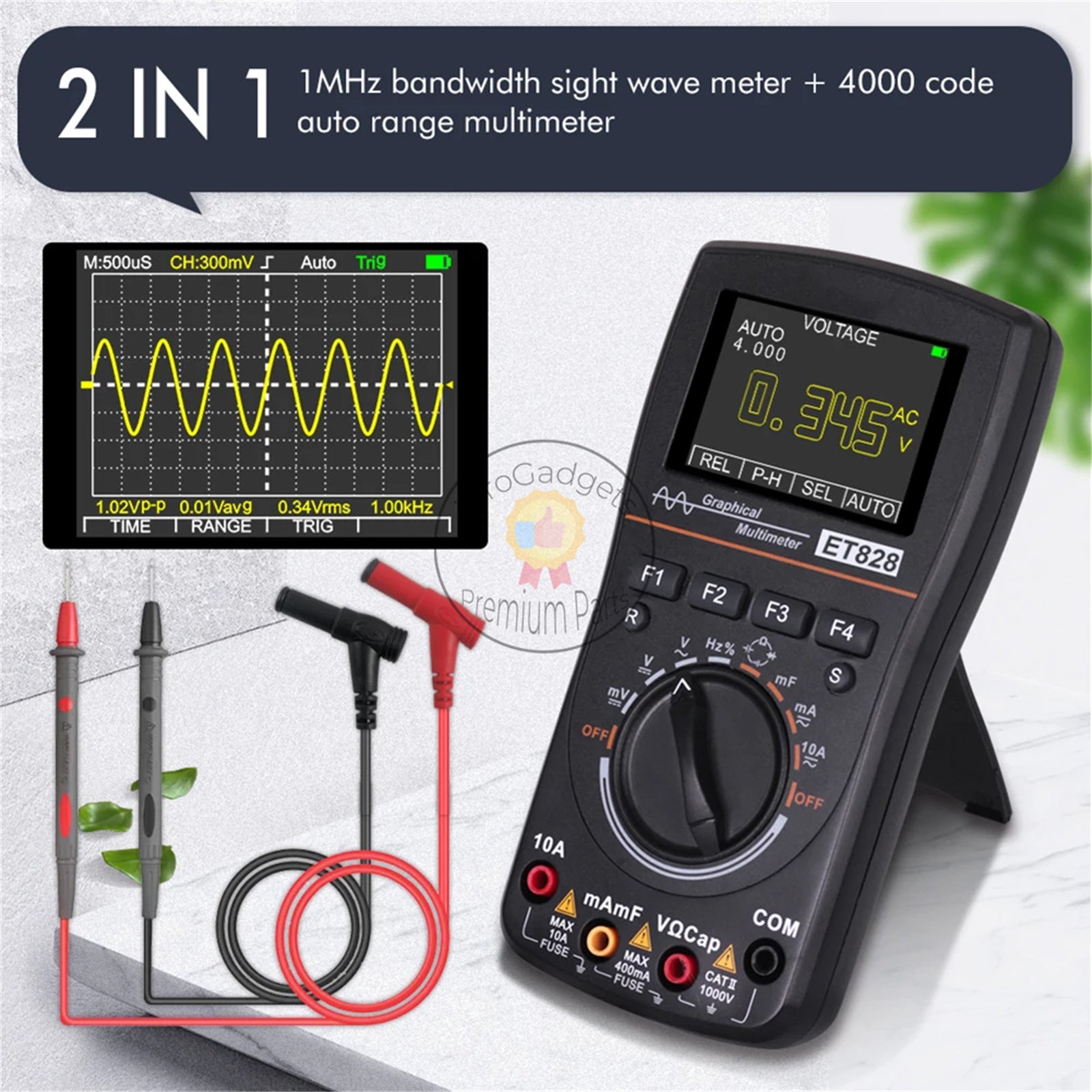

  • 2-in-1:  2.5Msps high-speed sampling, 1MHz analog bandwidth Oscilloscope +  4000 counts display digital multimeter
  • Powerful uses: it can be used in different applications such as DIY electrical design, car overhaul, production line, equipment maintenance, and power system
  • Color screen display: 2.4-inch color screen, clear waveform display

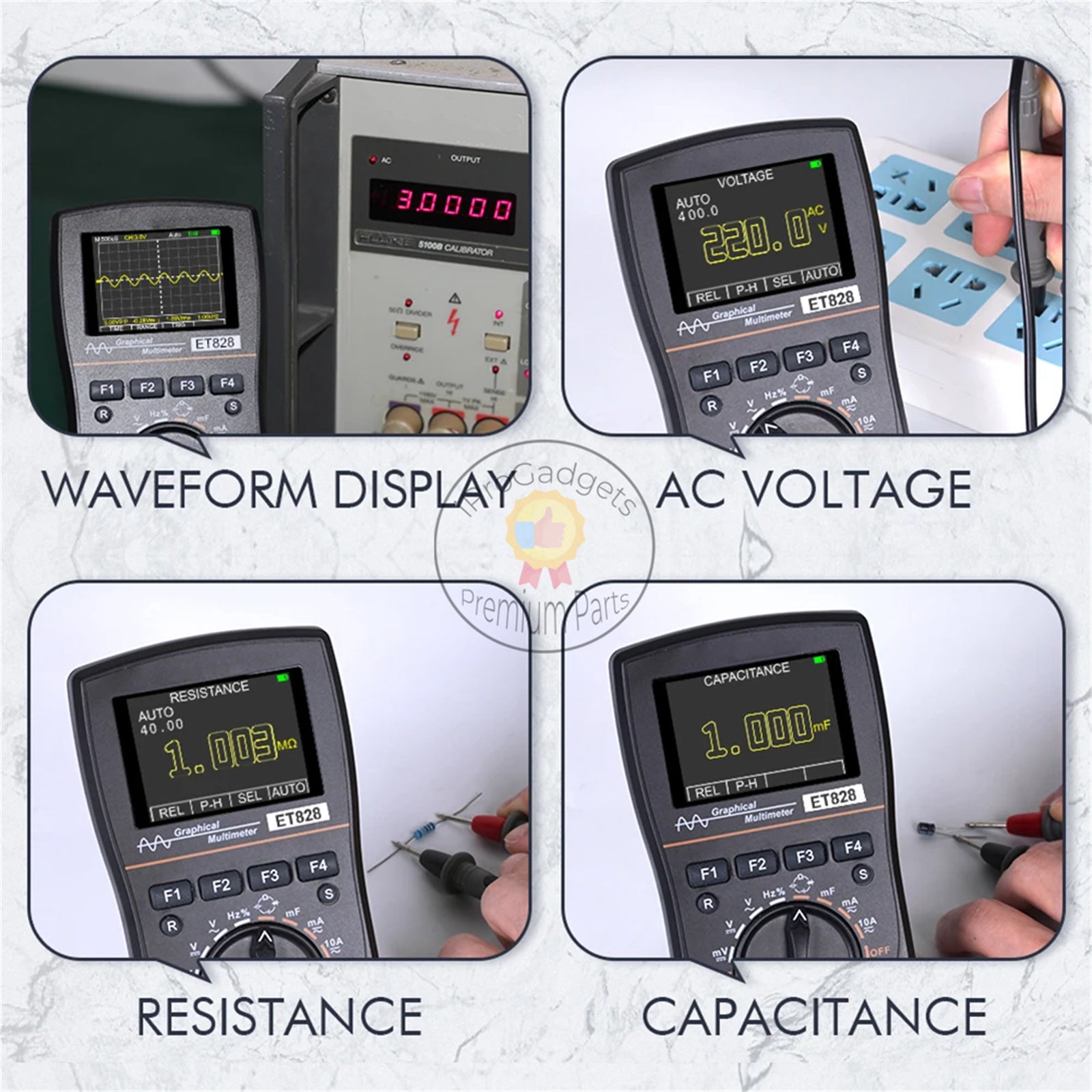

  • Multi-function multimeter: 4000 counts display,  fast and accurate measurement of AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity

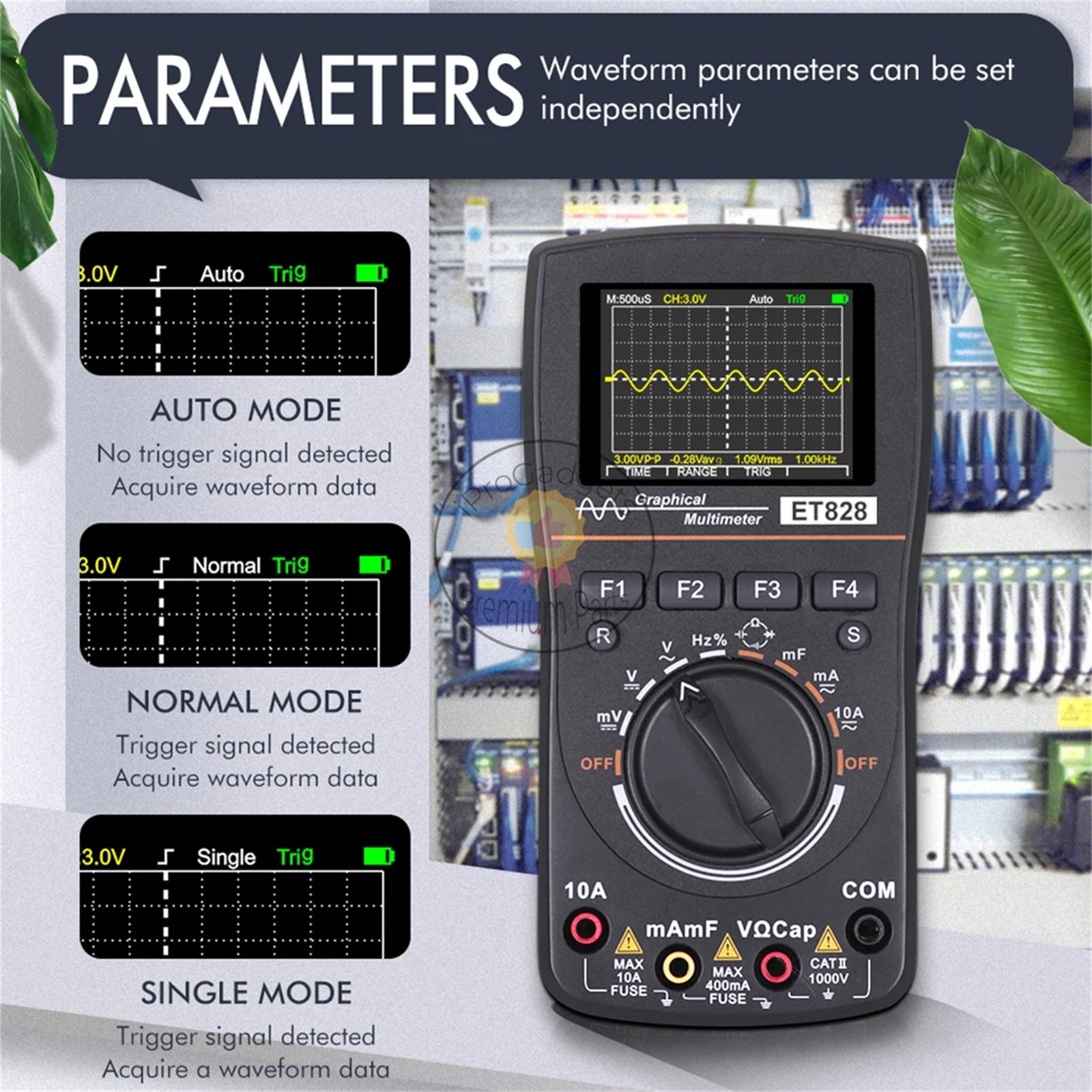

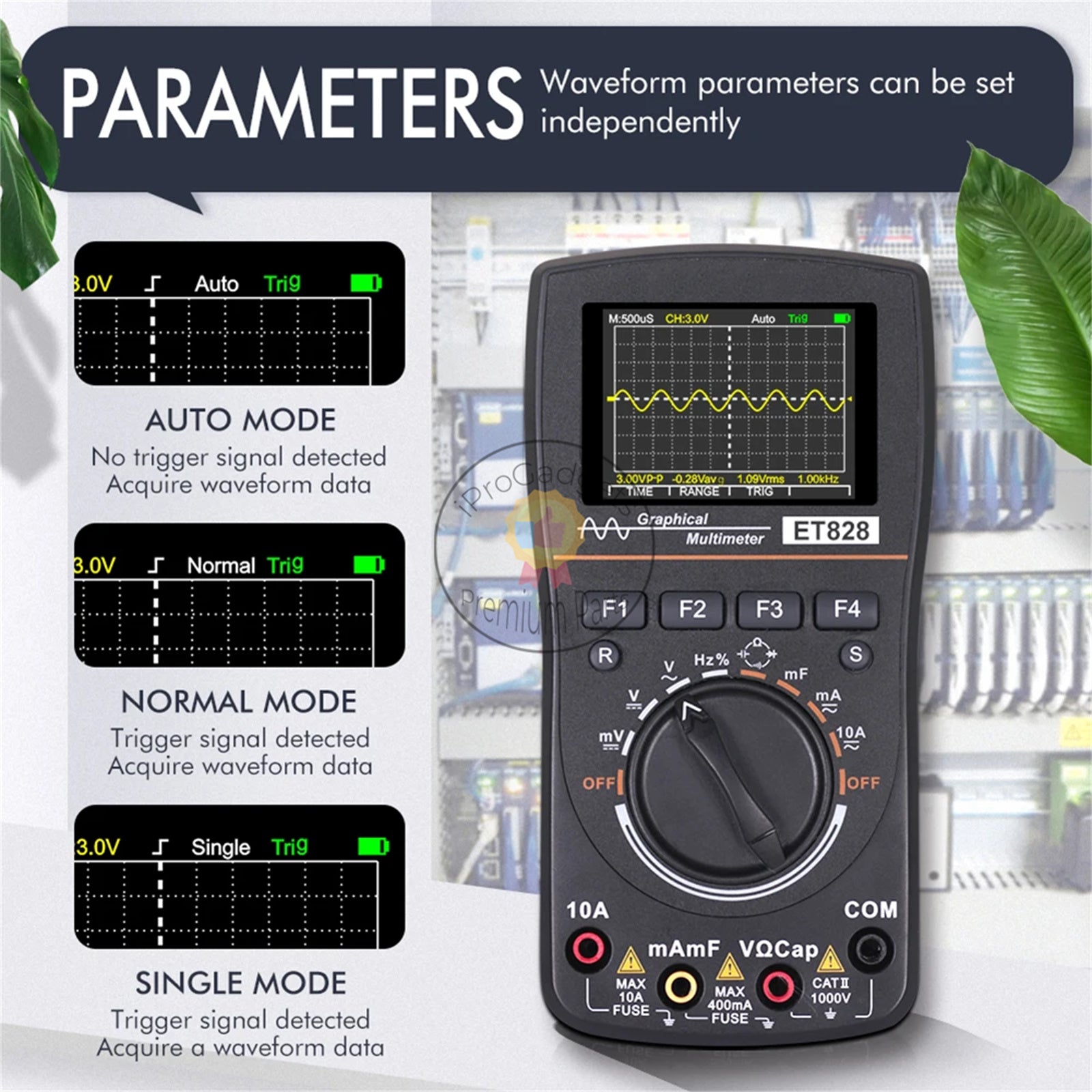

  • Oscilloscope parameter independent setting: Auto/Normal/Single scanning modes, time base, amplitude, rising edge, falling edge, and level

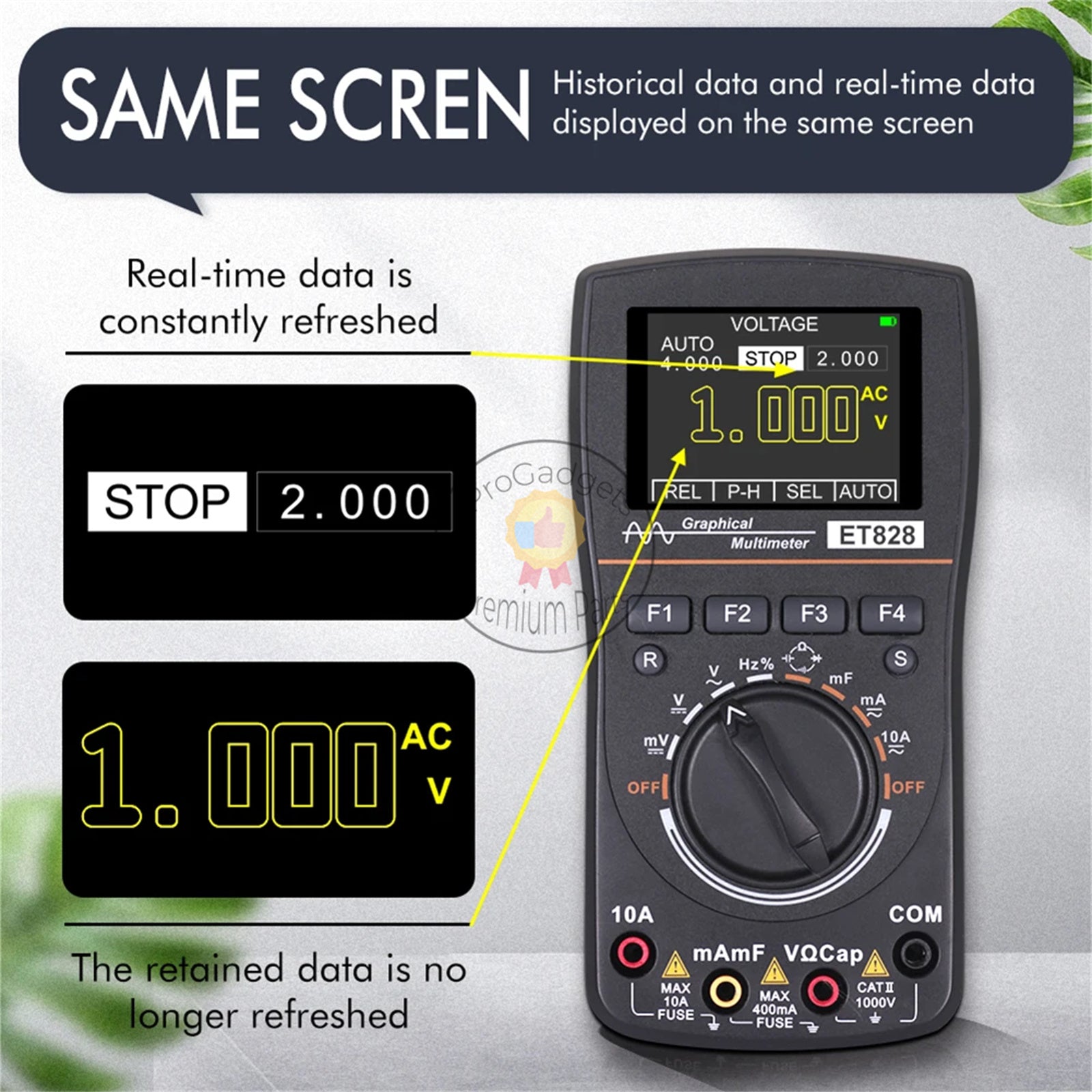

  • Can store 100 sets of data and 10 sets of waveform. Historical data and real-time display can be displayed on the same screen, greatly facilitating the analysis of data
  • Panel calibration and memory calibration coefficients do not need potentiometer adjustment and higher reliability
  • Overload protection 500mA/10A double fuse, double protection meter

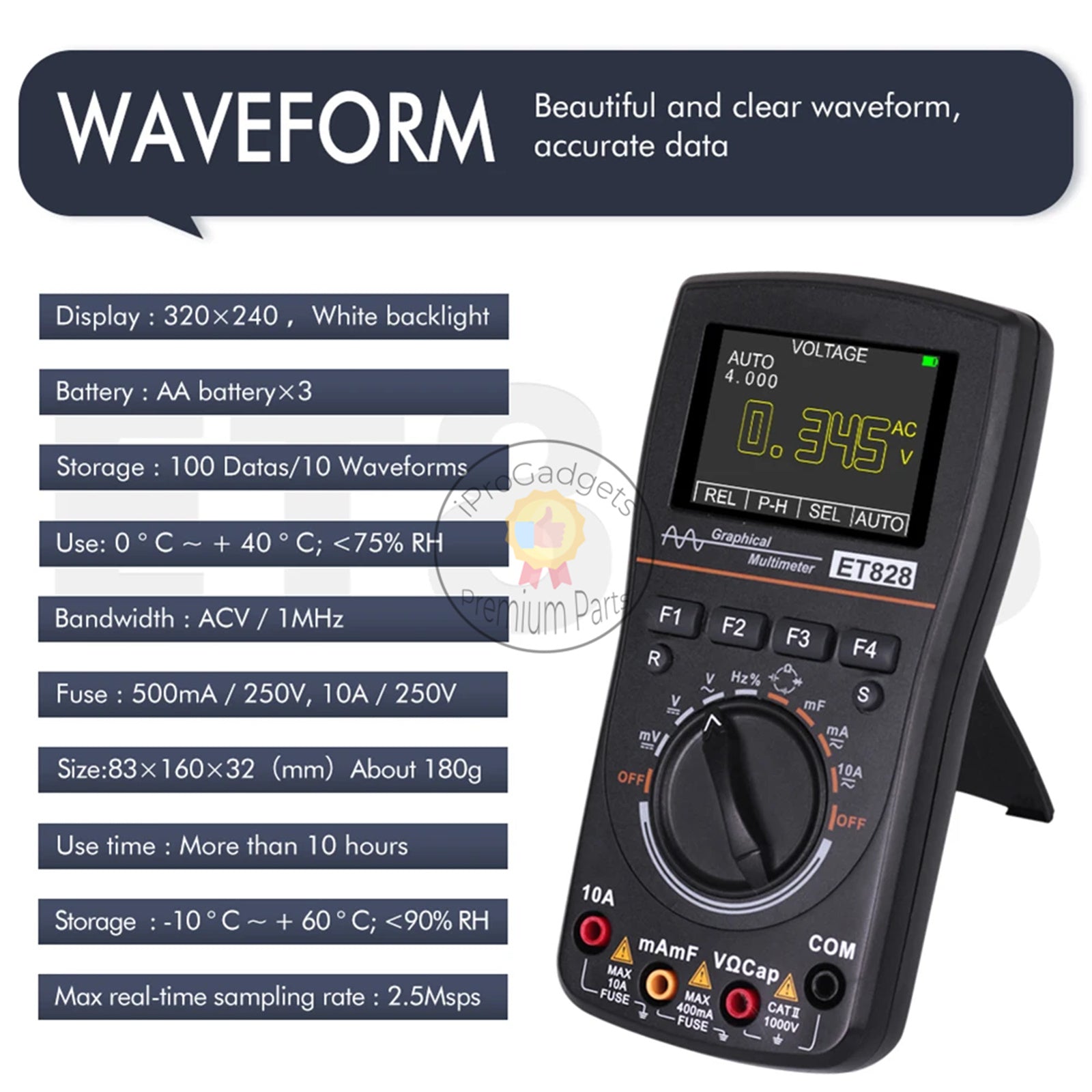

Specification:
  • Display: 240 x 320 LCD Screen
  • Display area: About 2.4 inches
  • Backlight: White
  • Input resistance: 10MΩ
  • Battery: AA battery x 3(Not  included)
  • Power consumption: About 80mA
  • Use time: Low light about 5 hours
  • Storage: 100 Data, 10 Waveforms
  • Use: 0℃~40℃; <75% RH
  • Storage: -10℃~60℃; <90% RH
  • Size: 83*160*32(mm)
  • Weight: About 195g (without battery)
Oscilloscope Characteristics:
  • Analog bandwidth: 1MHz (limited to ACV oscilloscope)
  • Maximum real-time sampling rate: 2.5Msps
  • Number of channels: One
  • Input impedance: about 10MΩ
  • Vertical sensitivity range: 300mV - 100V/grid
  • Time base range: 2.5us~10s/div
  • Vertical amplitude accuracy: ±(5%+ 0.2div)
  • Time base accuracy: ±(0.01% + 0.1div)
  • Scan mode: Auto/Normal/Single
  • Trigger edge selection: Rising edge/Falling edge
  • Automatic setting: Automatically set the time base and vertical amplitude
  • Automatic measurement function: Vpp, Vavg, Vrms, Hz

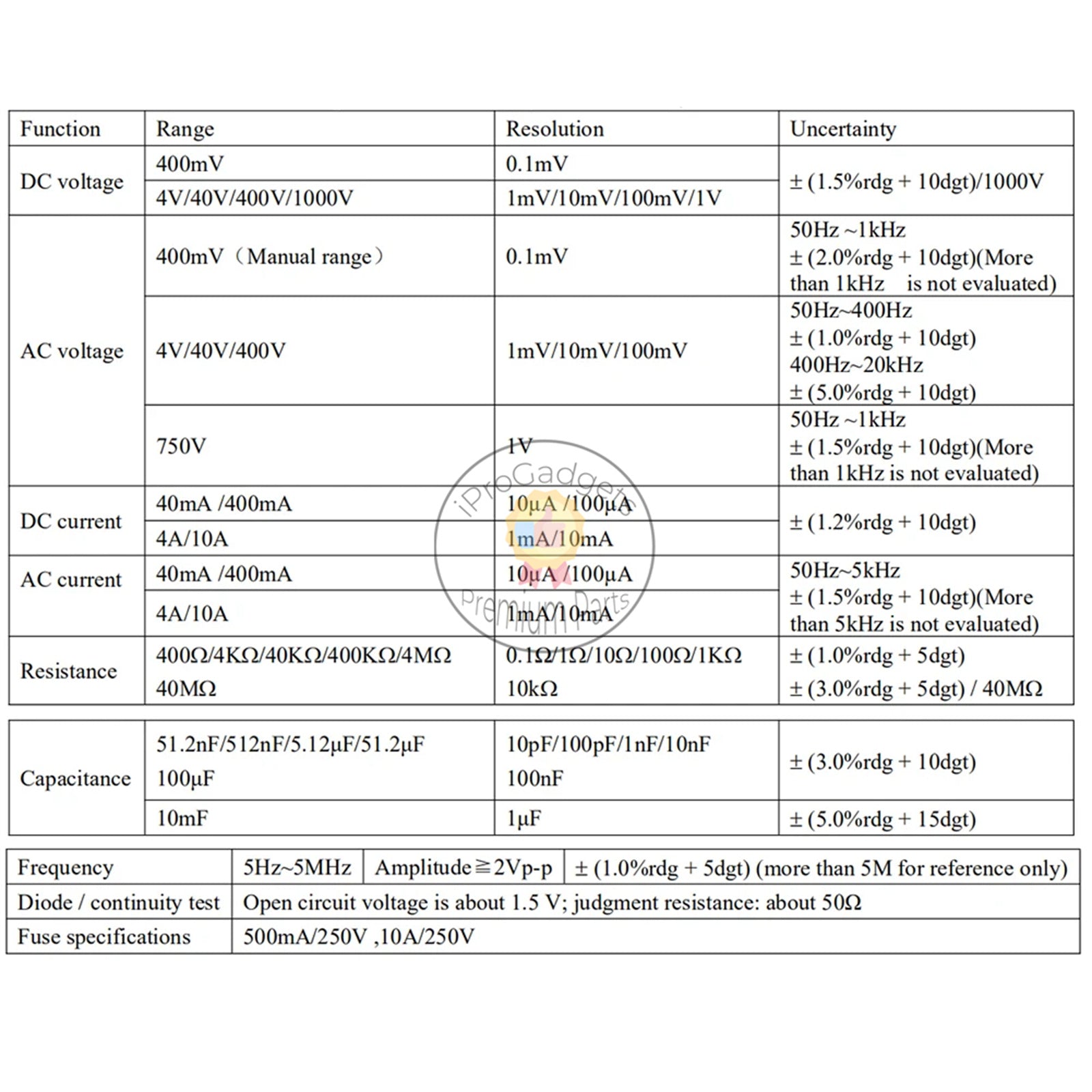

Multimeter Characteristics:
  • DC voltage: 400mV/4V/40V/400V/1000V ±(1.5%+10dgt)
  • AC voltage: 400mV/4V/40V/400V/750V ±(1.0%+10dgt)
  • DC Current: 40mA/400mA/4A/10A ±(1.2%+10dgt)
  • AC Current: 40mA/400mA/4A/10A ±(1.5%+10dgt)
  • Resistance: 400.0Ω~40.00MΩ ±(1.0%+5dgt)
  • Capacitance: 51.2nF~100uF, 10.00mF ±(3.0%+5dgt)
  • Frequency: 5Hz~5MHz ±(1.0%+5dgt)
  • Diode test: Voltage is about 1.5V
  • Continuity test: Judgment Resistance about <50Ω beep
  • Fuse: 500mA/250V, 10A/250V
Package includes:
  • 1 x Oscilloscope Multimeter (without Battery)
  • 1 x Test Pen
