Sunshine P2 PRO DC Power Supply Variable 30V 10A Adjustable Switching Regulated DC Bench Power Supply for Mobile Phone Repair
iProGadgets Repair Tools Sunshine P2 PRO DC Power Supply Variable 30V 10A Adjustable Switching Regulated DC Bench Power Supply for Mobile Phone Repair
Features:
Features:

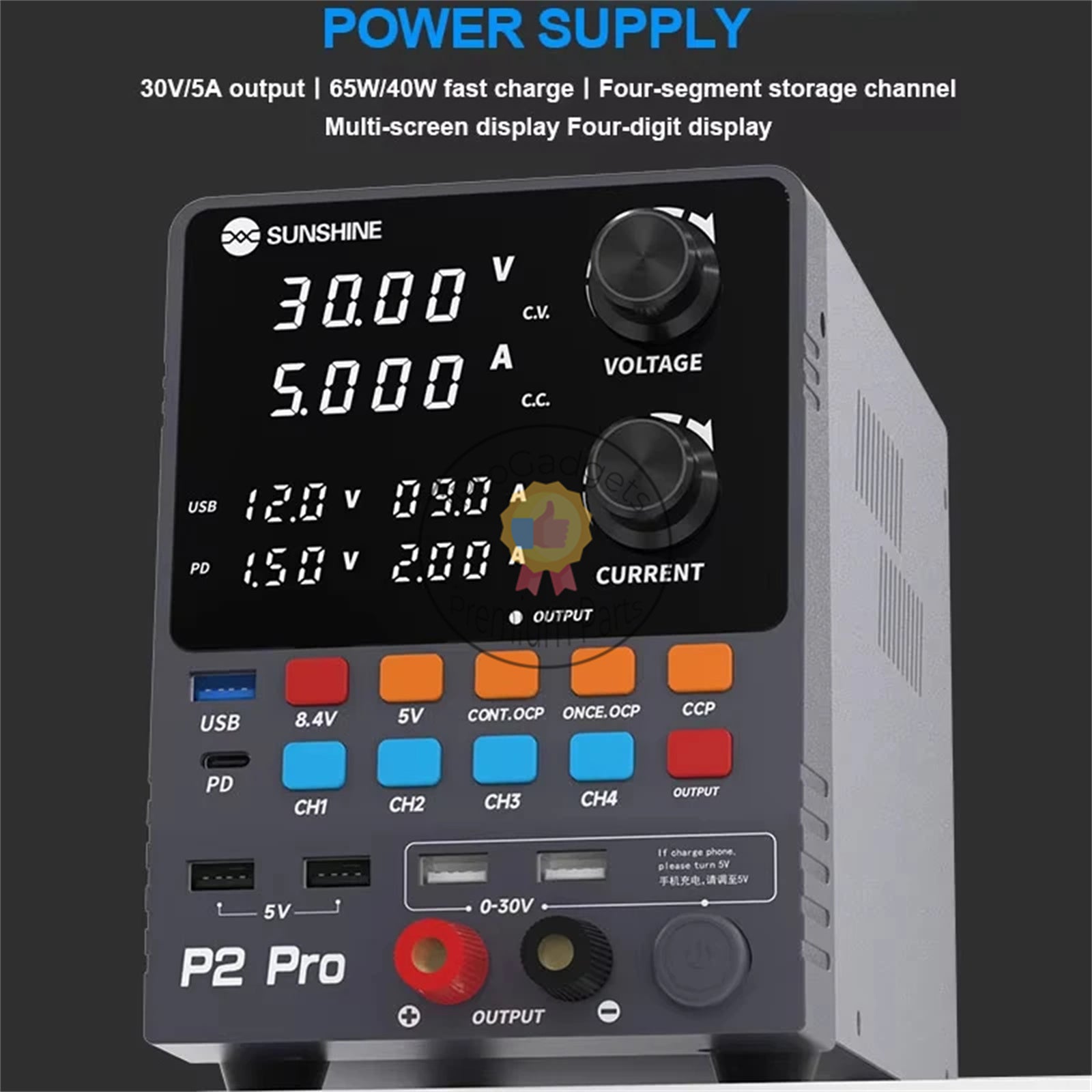

- P2 Pro Toroidal Transformer adjustable DC power supply, 30V/5A high-frequency output, precise value, Four sets of storage channels

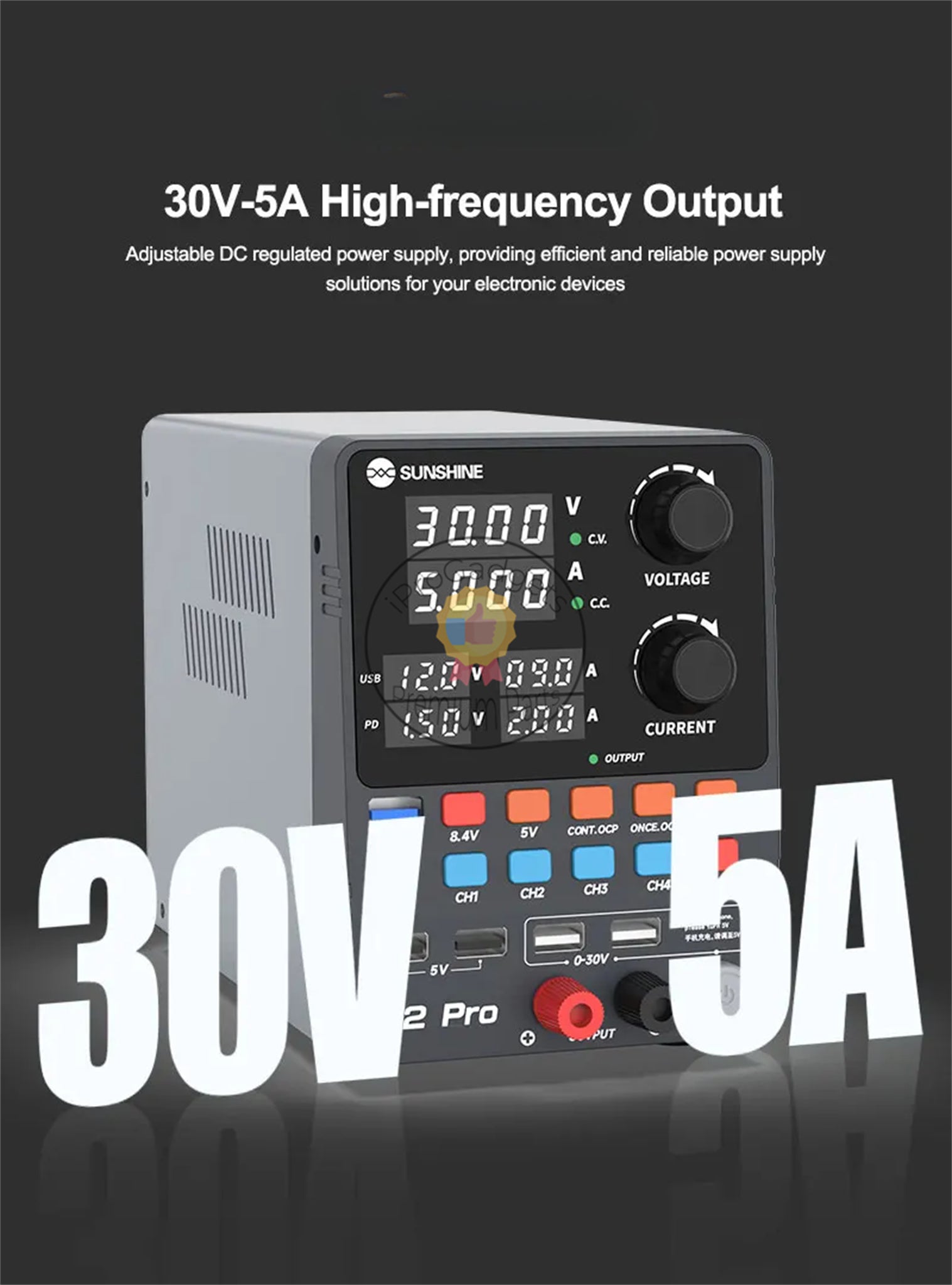

- 30V-5A high-frequency output, adjustable DC-regulated power supply, providing efficient and reliable power supply solutions for your electronic devices
- Sufficient power, made of high-quality pure copper wire, clean overall layout, built-in 265W toroidal voltage regulator

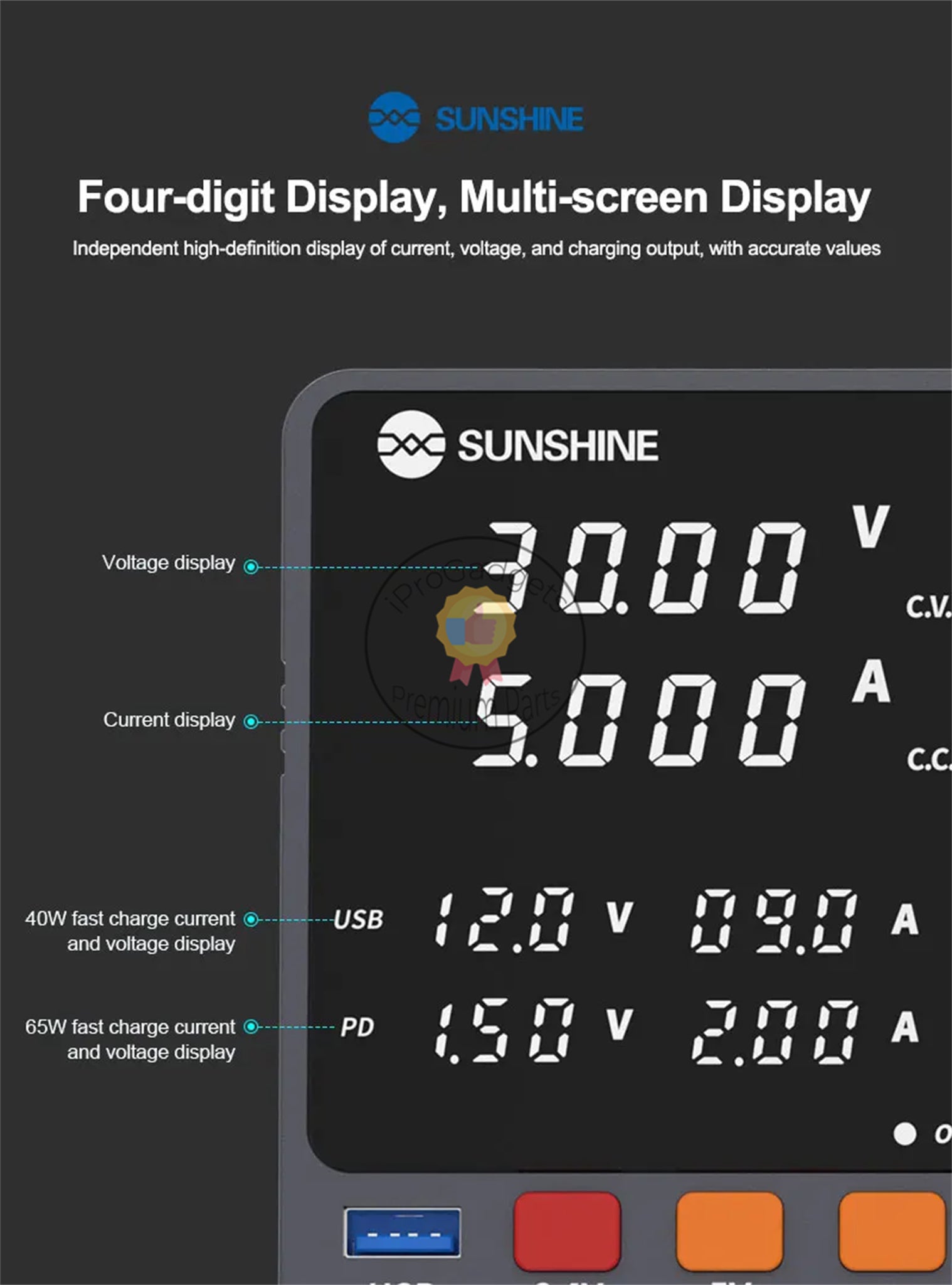

- Four-digit display, multi-screen display, independent high-definition display of current, voltage, and charging output, with accurate values
- 65W fast charge Type-C/40W fast charge USB interface, compatible with multiple device protocols

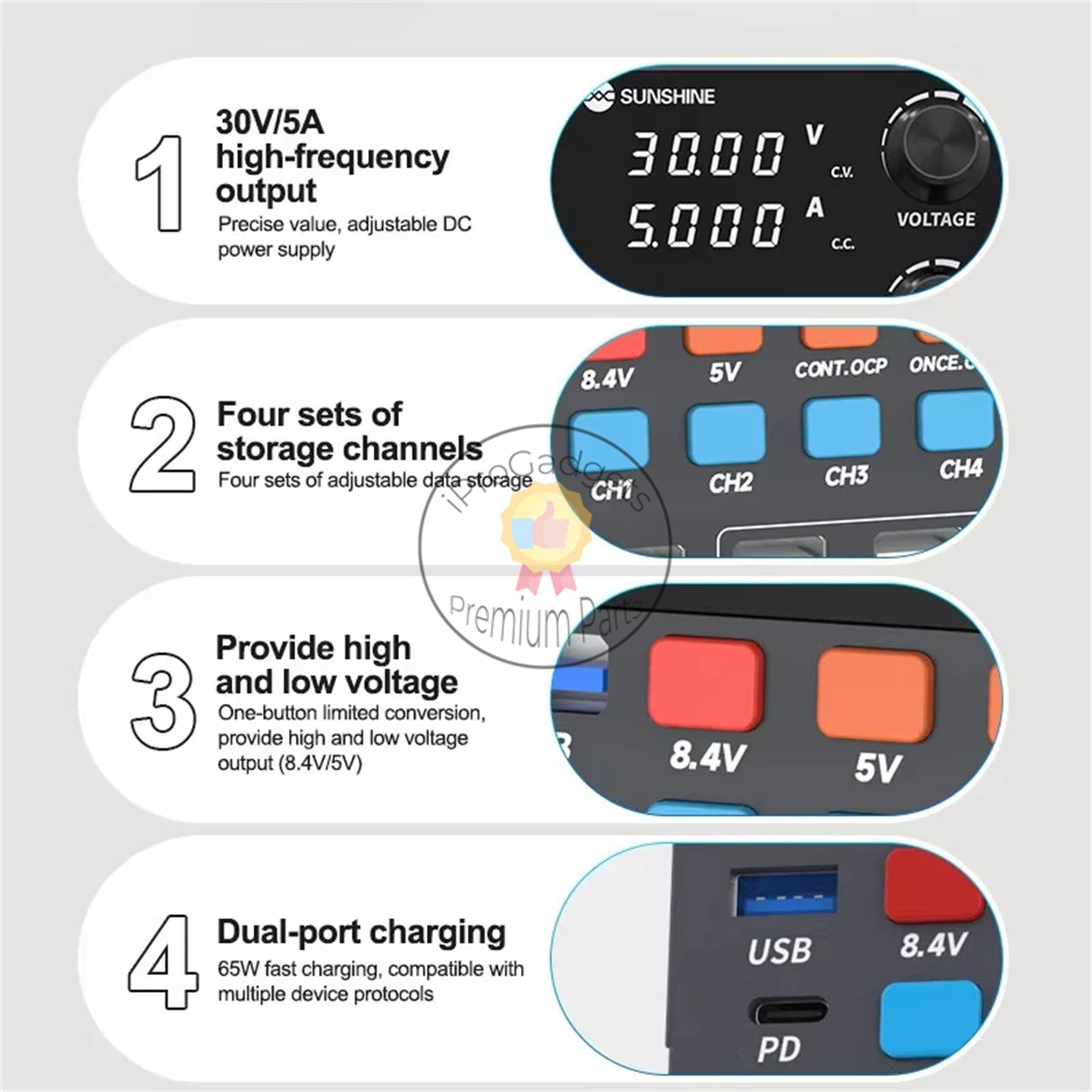

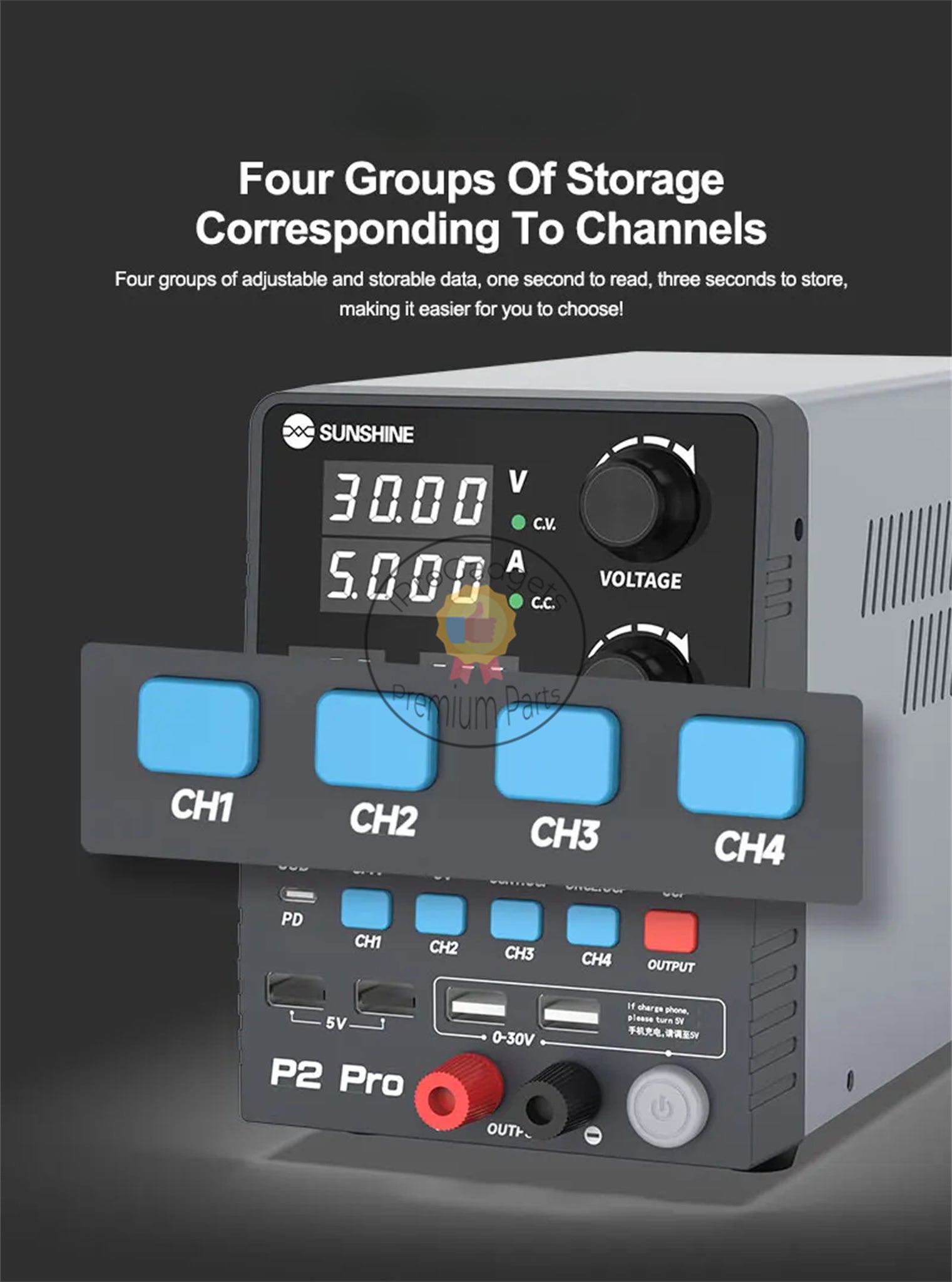

- Four groups of storage corresponding to channels, four groups of adjustable and storable data, one second to read, and three seconds to store, making it easier for you to choose
- One-button limited conversion of high and low voltage, (5/8.4V) limited conversion, 8.4V is suitable for laptop repair
- One-touch switch for multiple modes, with constant current output, over-current stop output, and over-current protection recovery mode, you can choose the appropriate mode according to the usage scenario
- 0-30V intelligent output, 5V/2A fixed output
- Low noise and low ripple, low ripple, intelligent system fan cooling
- Highly integrated chip, using a double-sided solderable highly integrated chip circuit board, the stability is greatly improved

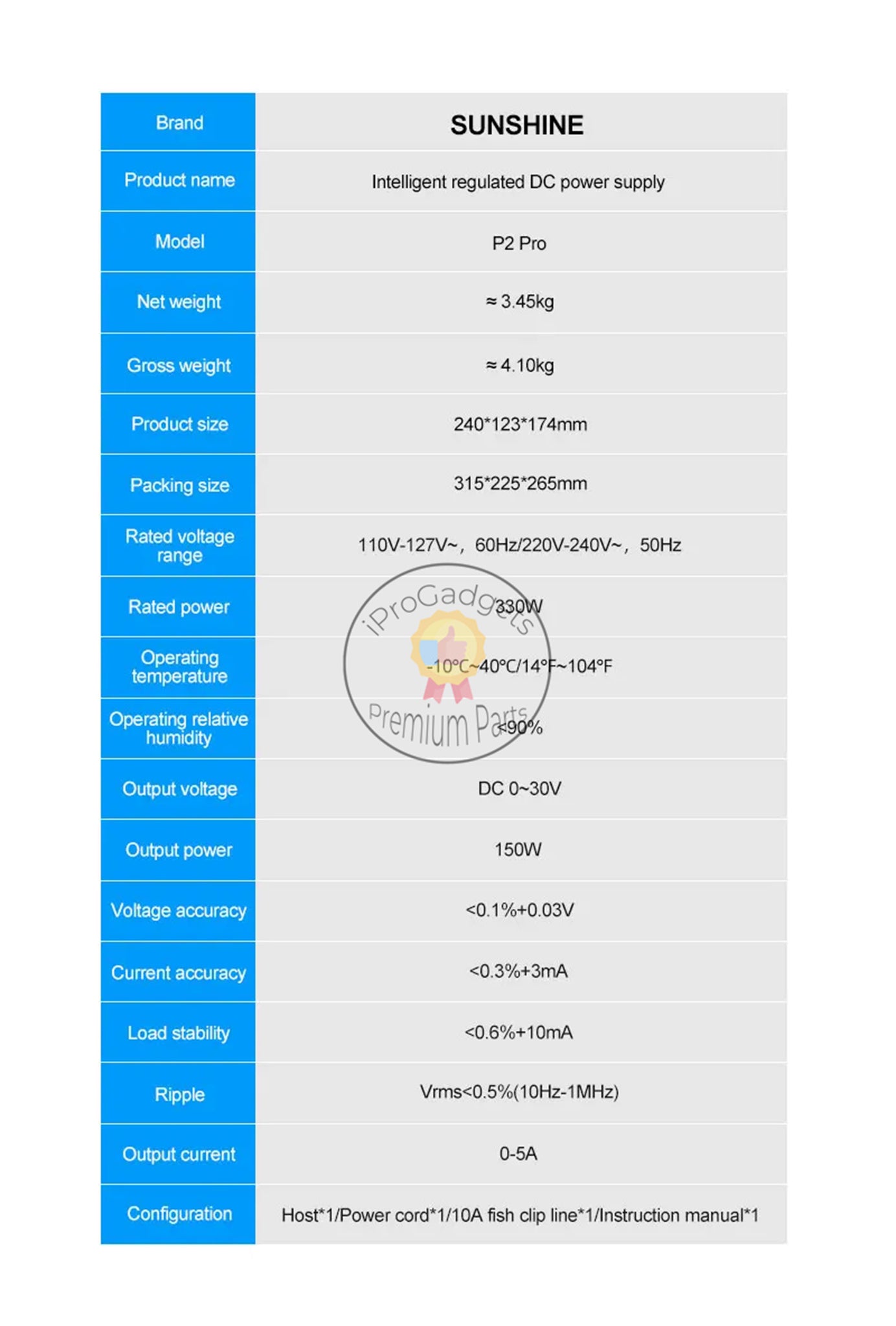

- Brand: Sunshine
- Product name: Intelligent regulated DC power supply
- Model: P2 Pro
- Net weight: 3.45kg

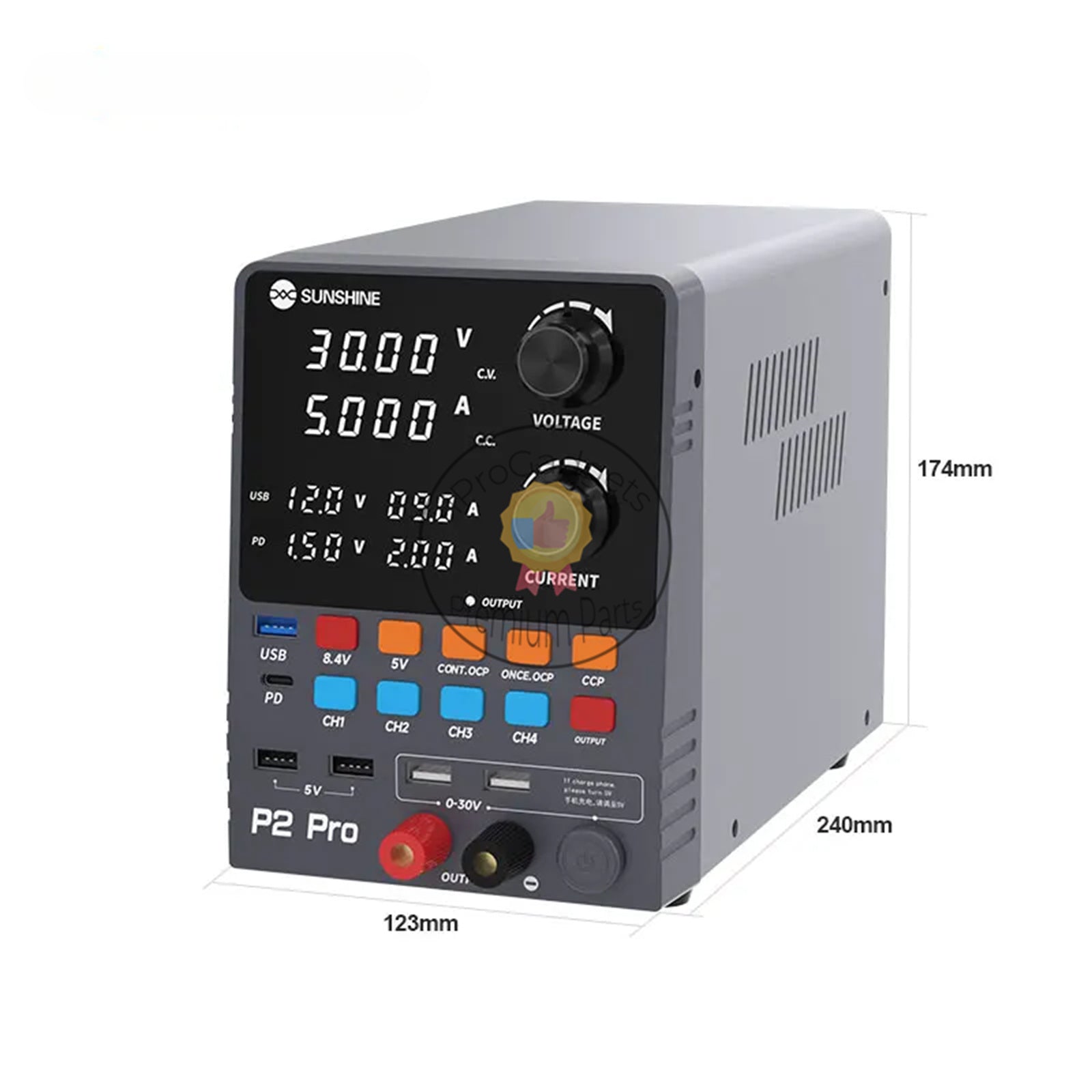

- Product size: 240*123*174mm
- Packing size: 315*225*265mm
- Rated voltage range: 110V-127V, 60Hz/220V-240V~, 50Hz
- Rated power: 330W
- Operating temperature: -10℃~40℃/14℉-104℉
- Operating relative humidity: <90%
- Output voltage: DC 0~30V
- Output power: 150W
- Voltage accuracy: <0.1%+0.03V
- Current accuracy:<0.3%+3mA
- Load stability: <0.6%+10mA
- Ripple: Vrms<0.5%(10Hz-1MHz)
- Output current: 0~5A
- 1 x Power Supply
- 1 x Test Cable
- 1 x Power Cable
