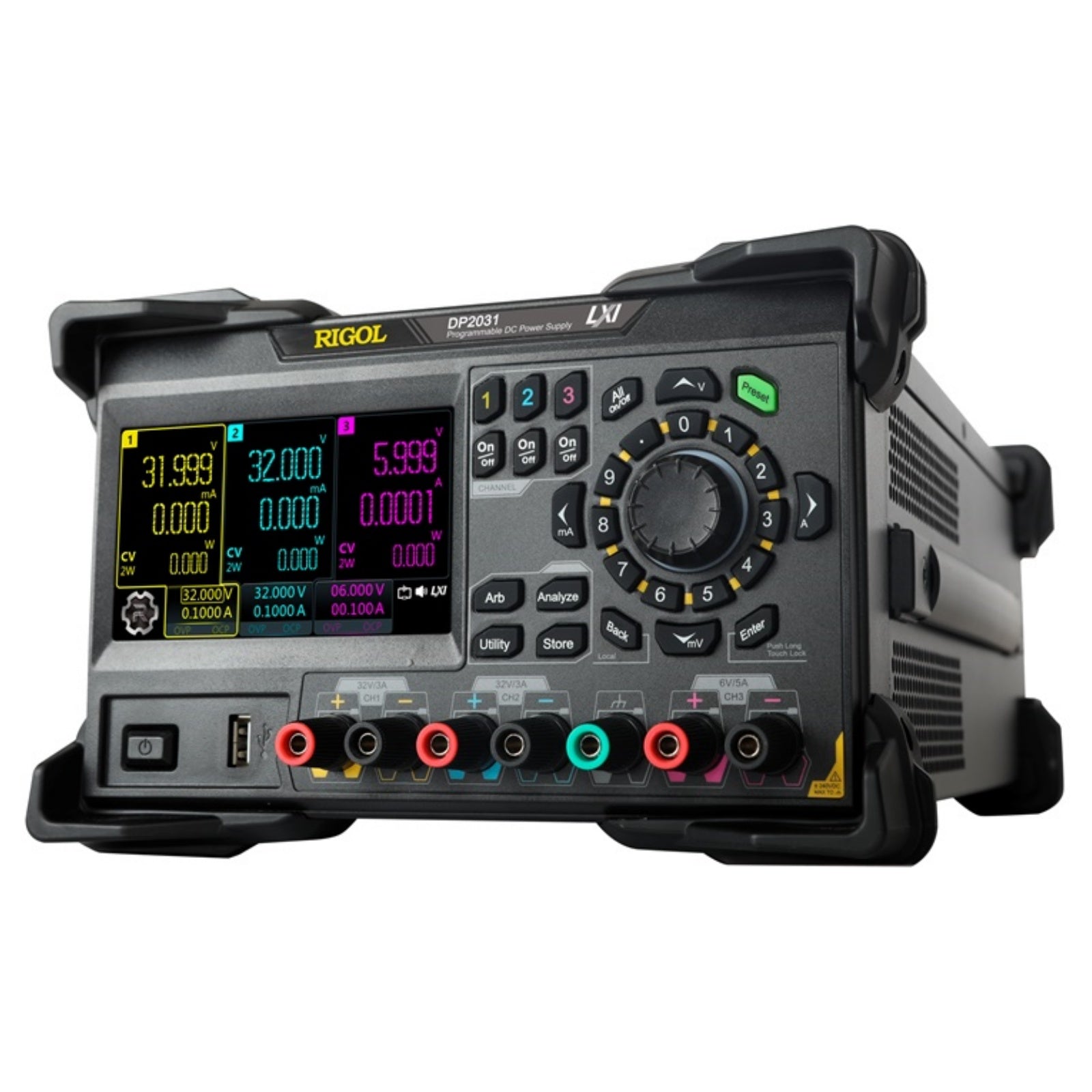

Rigol DP2031 - 3 Channel Programmable Linear DC Power Supply 222W
Rigol DP2031 3-Channel Programmable Linear DC Power Supply, 222W, 32V/3A & 6V/5A, High Precision
Key Specifications:
Channels: 3 isolated independent channels
Output Ratings:
Channel 1: 0–32 V / 0–3 A
Channel 2: 0–32 V / 0–3 A
Channel 3: 0–6 V / 0–5 A (optional 0–10 A with DP2000-10A upgrade)
Total Power: 222 W
Ripple and Noise: <350 μVrms / 2 mVpp (20 Hz–20 MHz bandwidth)
Transient Response Time: <50 μs
Programming/Readback Resolution:
Voltage: <0.01% + 2 mV
Current: <0.01% + 250 μA
Current Measurement Resolution: 1 μA (low range), with 28 μA accuracy
Display Resolution: 0.1 mV / 0.1 mA
Command Processing Time: <10 ms
Features

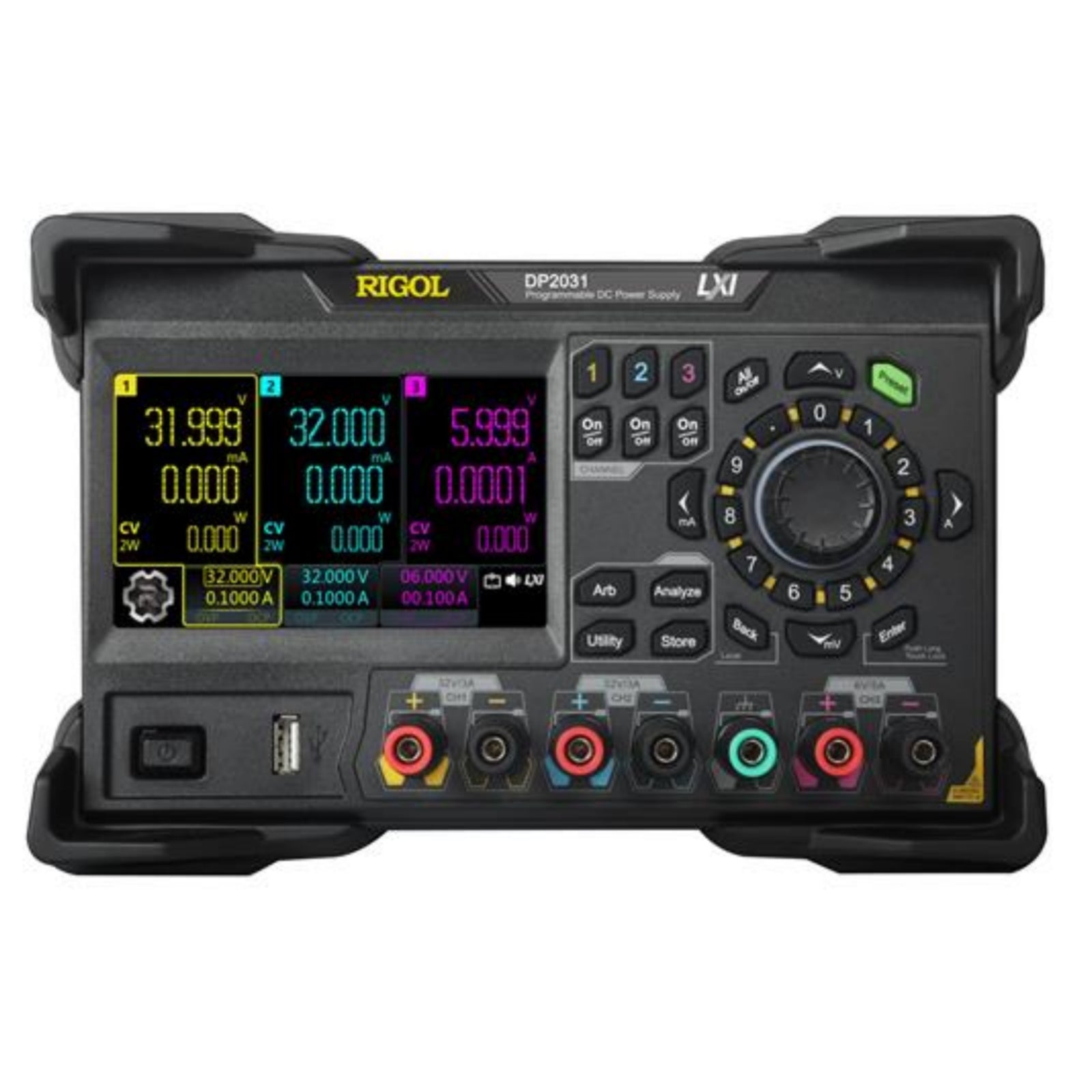

Display: 4.3-inch LCD color touch screen, displaying voltage, current, and power as digital values or signal curves
Internal Connections: Series/parallel connections for CH1 and CH2 (internal, no external cabling needed)
Arbitrary Waveform Generation:
Up to 512 arbitrary points with dwell time as low as 1 ms
Built-in basic waveforms
High-speed arb function (up to 1000 updates/second)
Remote Sense: 2-wire or 4-wire remote sense for accurate voltage delivery
Low Current Measurement: Capable of measuring 1 ms pulse currents and wide dynamic current ranges
Timer Control: Programmable output sequences with up to 2048 steps
Analysis Functions:
Timing output
Energy consumption analysis (ideal for IoT testing)
Data logging and analysis
Protection Features:
Overvoltage protection (OVP)
Overcurrent protection (OCP)
Overtemperature protection (OTP)
Output Terminals: Front and rear output terminals for CH1 and CH2
Form Factor: 3U, 1/2-rack size

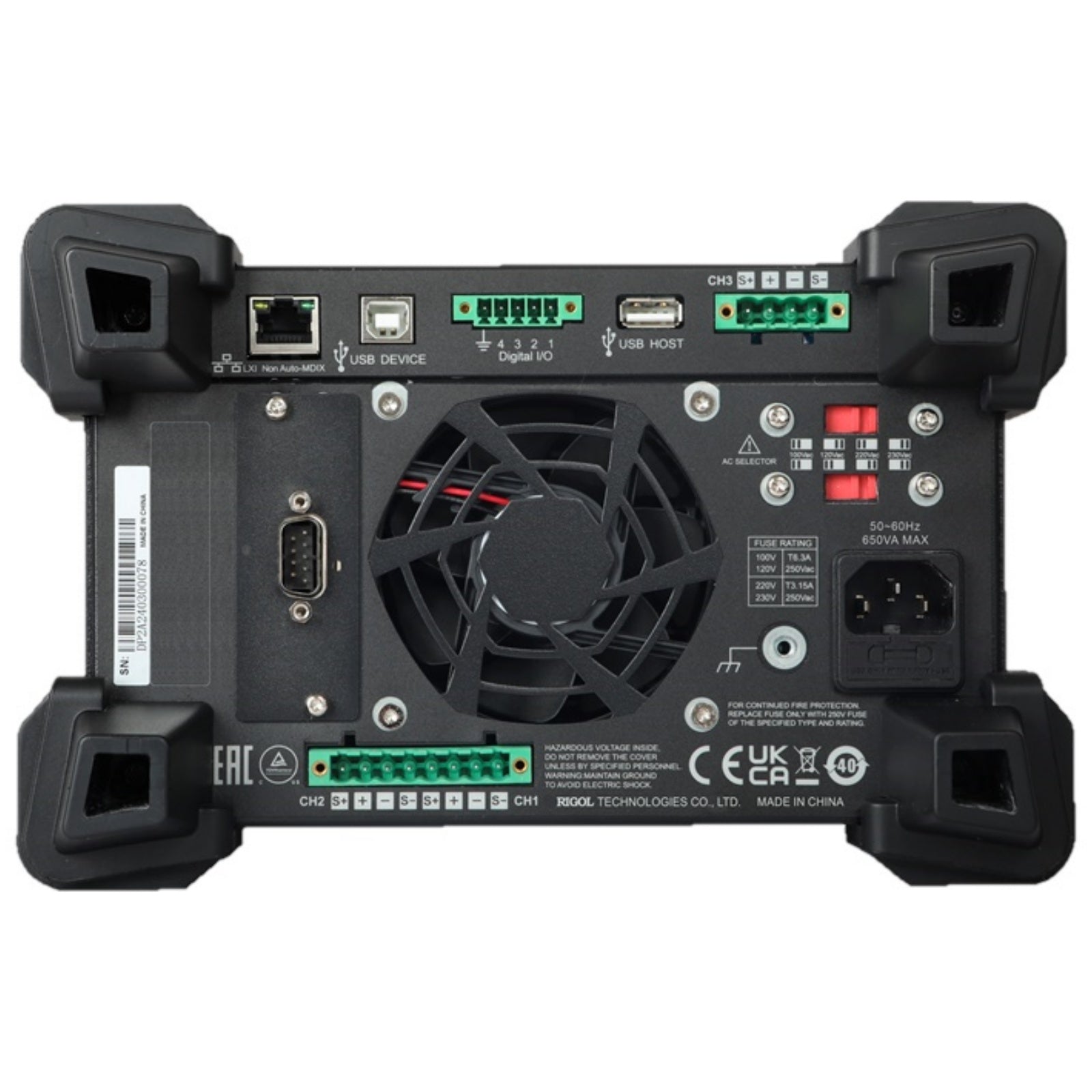

Interfaces
Standard: USB Host, USB Device, LAN, RS232, Digital I/O
Optional: GPIB (with DP2000-GPIB module)
Software: Supports Ultra Sigma and software control for programming and automation
Optional Upgrades
DP2000-10A: Extends Channel 3 to 6 V / 10 A
DP2000-HADC: 7.5 kSa/s high-speed sampling option
DP2000-GPIB: GPIB interface module
Additional Notes
Accuracy and Stability: Excellent programming and readback accuracy, with automatic switching between low and high current ranges.
Applications: Suitable for lab testing, IoT device testing, battery emulation, and precision electronics due to its low noise, high precision, and microamp measurement capabilities.
Physical Dimensions: Approximately 9.41 x 16.5 x 6.18 inches; weight ~21.94 lbs.
