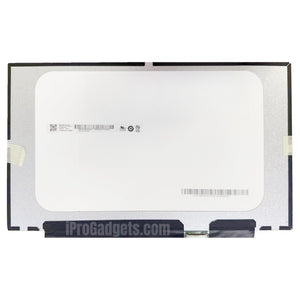

Replacement New Display B133HAK02.3 13.3 inch FHD LCD Touch Screen Panel 60hz
iProGadgets Repair Parts B133HAK02.3 13.3 inch Laptop LCD Screen Panel Matrix 1920*1080 40 PINS 60hz Touch Version
Panel Type: a-Si TFT-LCD, AHVA
Size: 13.3 inches (diagonal)
Resolution: 1920 x 1080 (Full HD, approximately 166 PPI)
Pixel Format: RGB Vertical Stripe
Display Colors: 16.7 million
Response Time: 25 ms (Typical, Tr+Td)
Refresh Rate: 60 Hz
Backlight: WLED (White LED), 15,000 hours lifespan, with LED driver
Surface: Hard coating (3H), Matte/Anti-glare finish
Touch Panel: Includes touch functionality (digitizer included, supports PCAP touch)
Signal Interface: eDP (Embedded DisplayPort), 2 lanes, 40-pin connector, 0.5mm pitch
Input Voltage: 3.3V (Typical)
Operating Temperature: -20 to 60°C
Storage Temperature: -20 to 60°C
Production Status: In production (as of last known data)
Applications: Primarily used in laptops
The B133HAK02.3 is a Class I display, designed for high compatibility as a replacement screen for laptops, with a matte finish and IPS-like wide viewing angles due to its AHVA technology.
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
