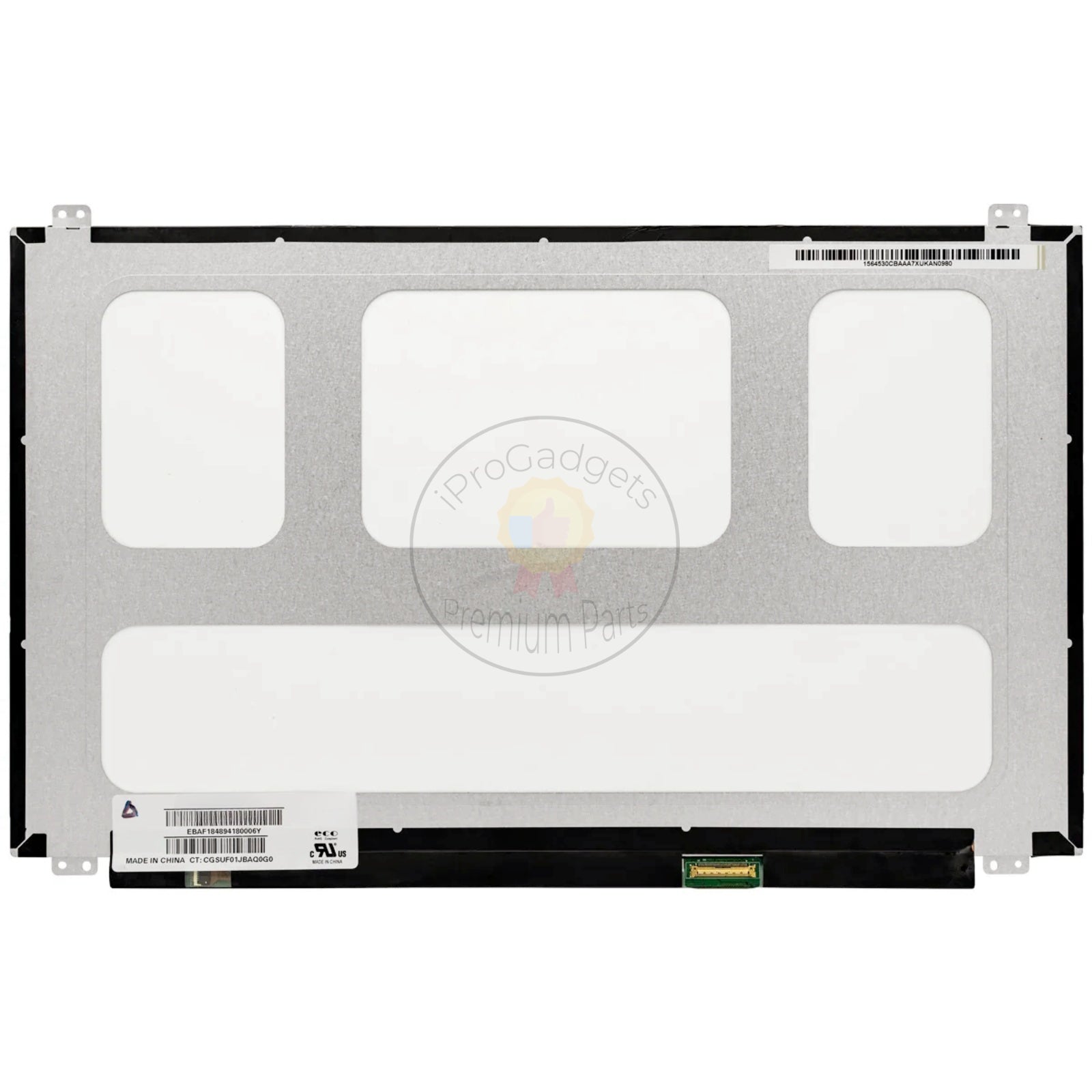

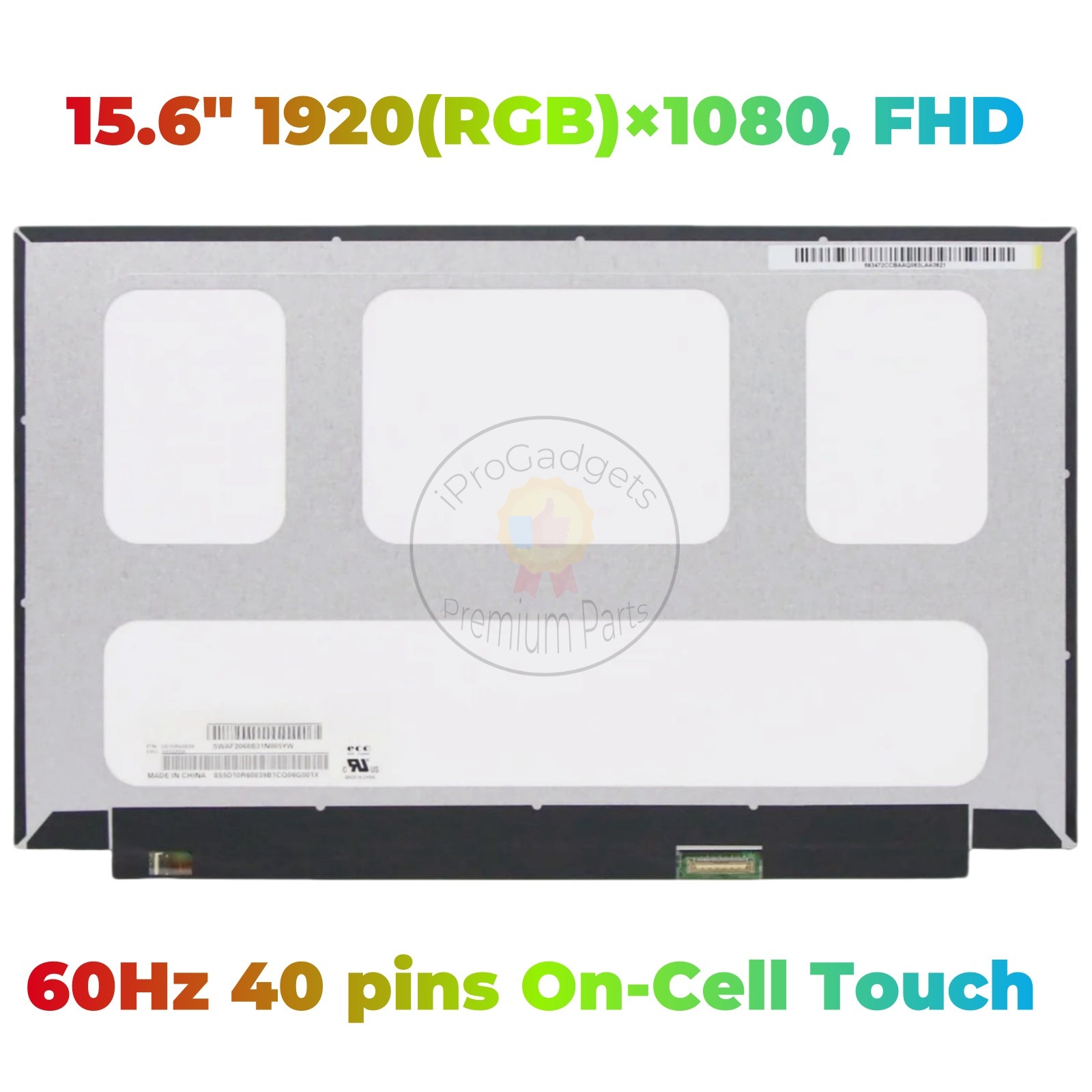

Replacement 15.6 inch FHD LCD Touch Screen For Lenovo S340-15IWL S340-15API S340-15IIL 5D10R60839 5D10R59145
Compatible Models: S340-15IWL S340-15API S340-15IIL Touch SCREEN
FRU: 5D10R60839 5D10R59145
Screen Size: 15.6 inch
Screen Type: IPS
Touch Screen: Yes
Pixel Number: 1920(RGB)x1080 , FHD, 141PPI.
Frequency: 60Hz
Display Colors: 16.2M, 45% NTSC.
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10).
Surface: Matte, Hard coating (3H).
Backlight: WLED.
Signal Interface: eDP (2 Lanes), eDP1.2, 40 pins Connector.
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
