Owon CP024 4A-400A Probe Oscilloscope Probe Kit Oscilloprobe Oscilloscope Sonde

  • $162.00
    Prix unitaire par
Frais de port calculés à l'étape de paiement.


iProGadgets Repair Tools Owon CP024 4A-400A Probe Oscilloscope Probe Kit Oscilloprobe Oscilloscope Sonde

Features:
[Quick and Accurate AC/DC Amp Oscilloscope Probe] is based on hall effect technology and is designed to be used in conjunction with multimeter for ac and dc current measurements.
[Max. Jaw Opening] The clamp measures the AC current in a conductor up to 23mm without interrupting the circuit.
[Multifunctional & Easy to Use] Range switch, used to turn on/ off the current probe as well as to select the desired,range, ZERO button, AC/DC button.
[Handheld Electrical Tester] AC/DC current probe oscilloscope probe, it's suitable for the electrical repair,quality assurance
[Portable & Widely Used] Whether you're working on home appliances, cars, motorcycles, RVs, laboratories, or industrial equipment maintenance, this AC/DC clamp meter is your trusty companion. From battery power detection to power plant maintenance and railroad repairs, it's your one-stop piece of equipment for all your measurement needs.

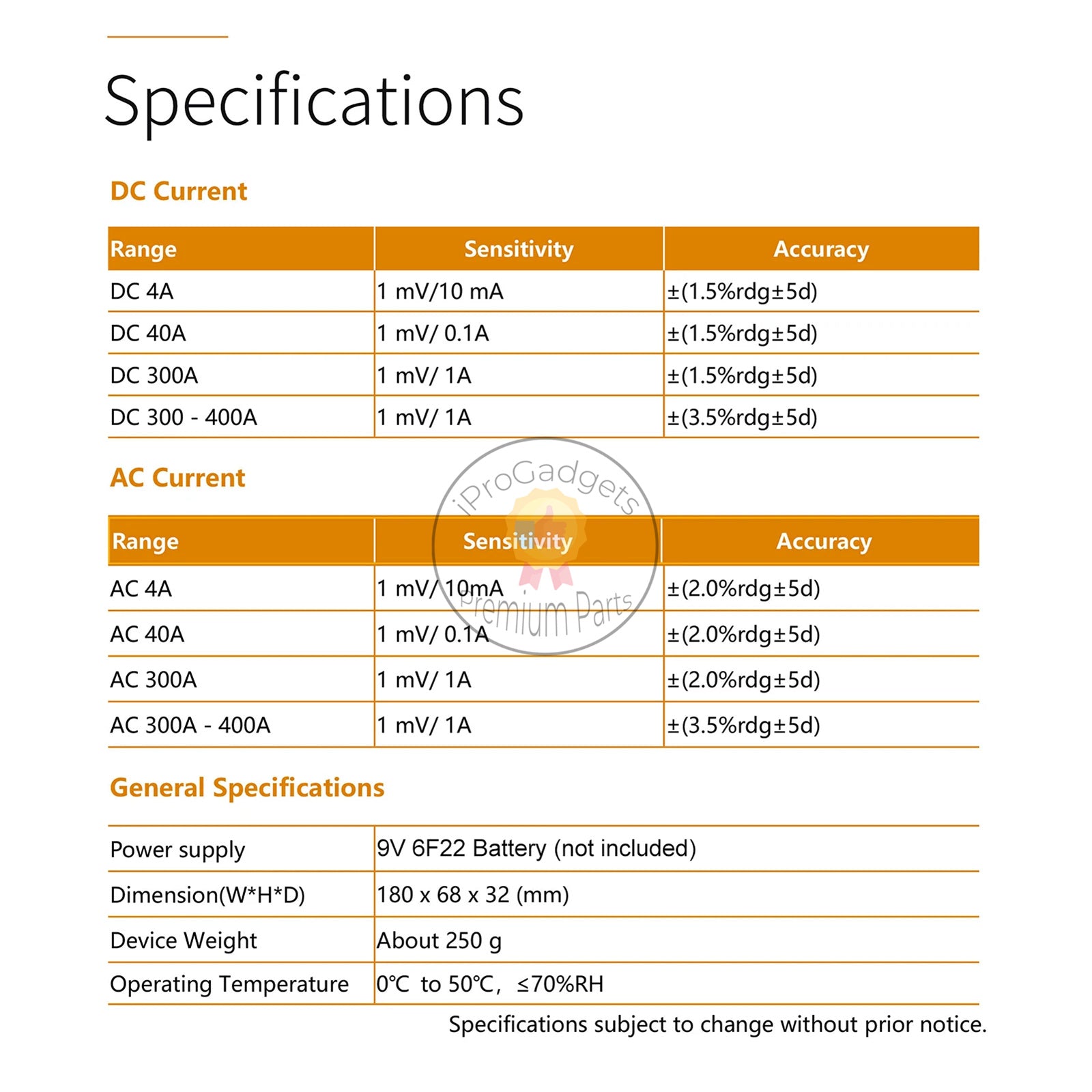

Specifications:
Material: ABS

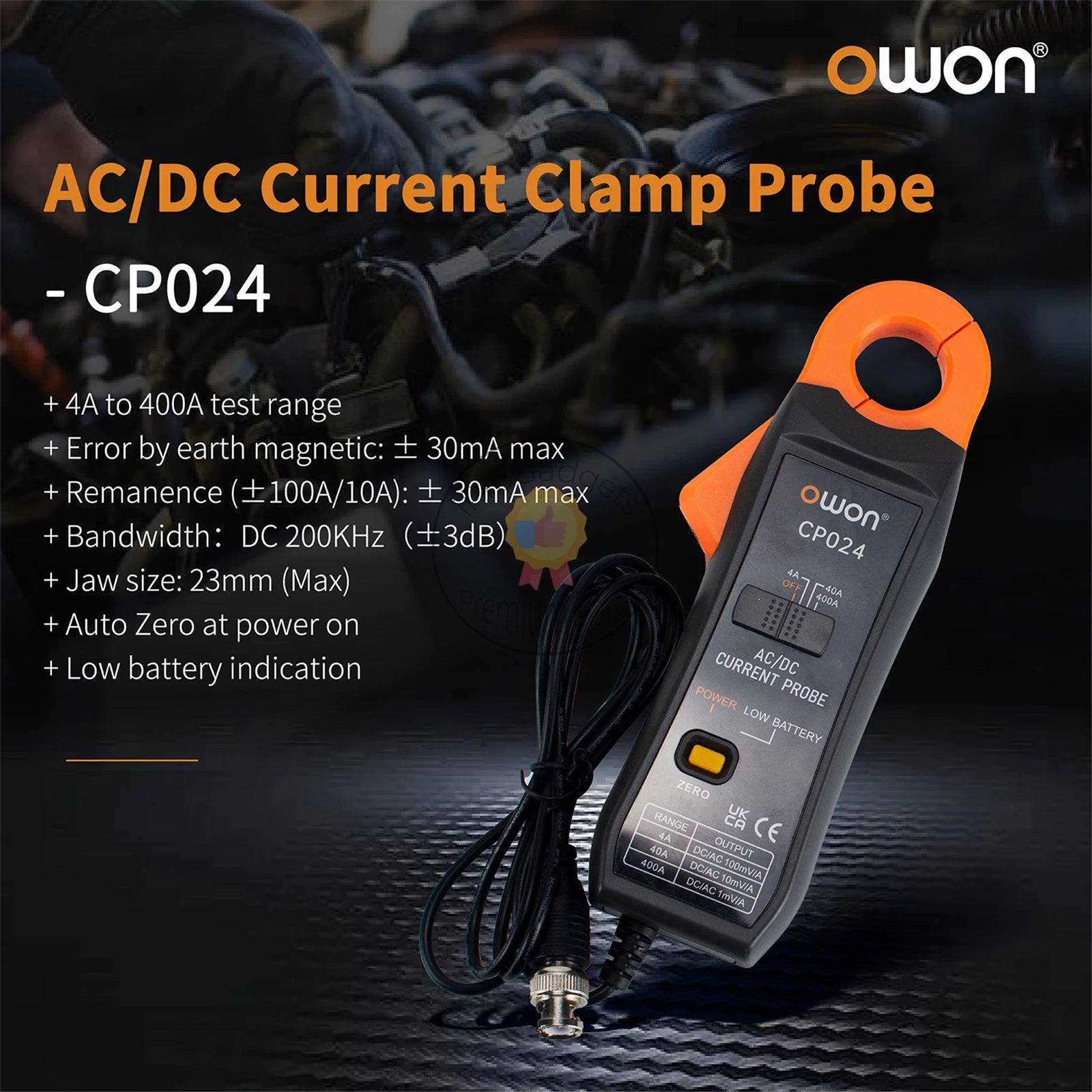

Test Range: 4A to 400A
Error By Earth Magnetic : ±30MA Max
Remanence (± 100A/10A) : ±30MA Max
Bandwidth : DC 200KHZ (± 3db)

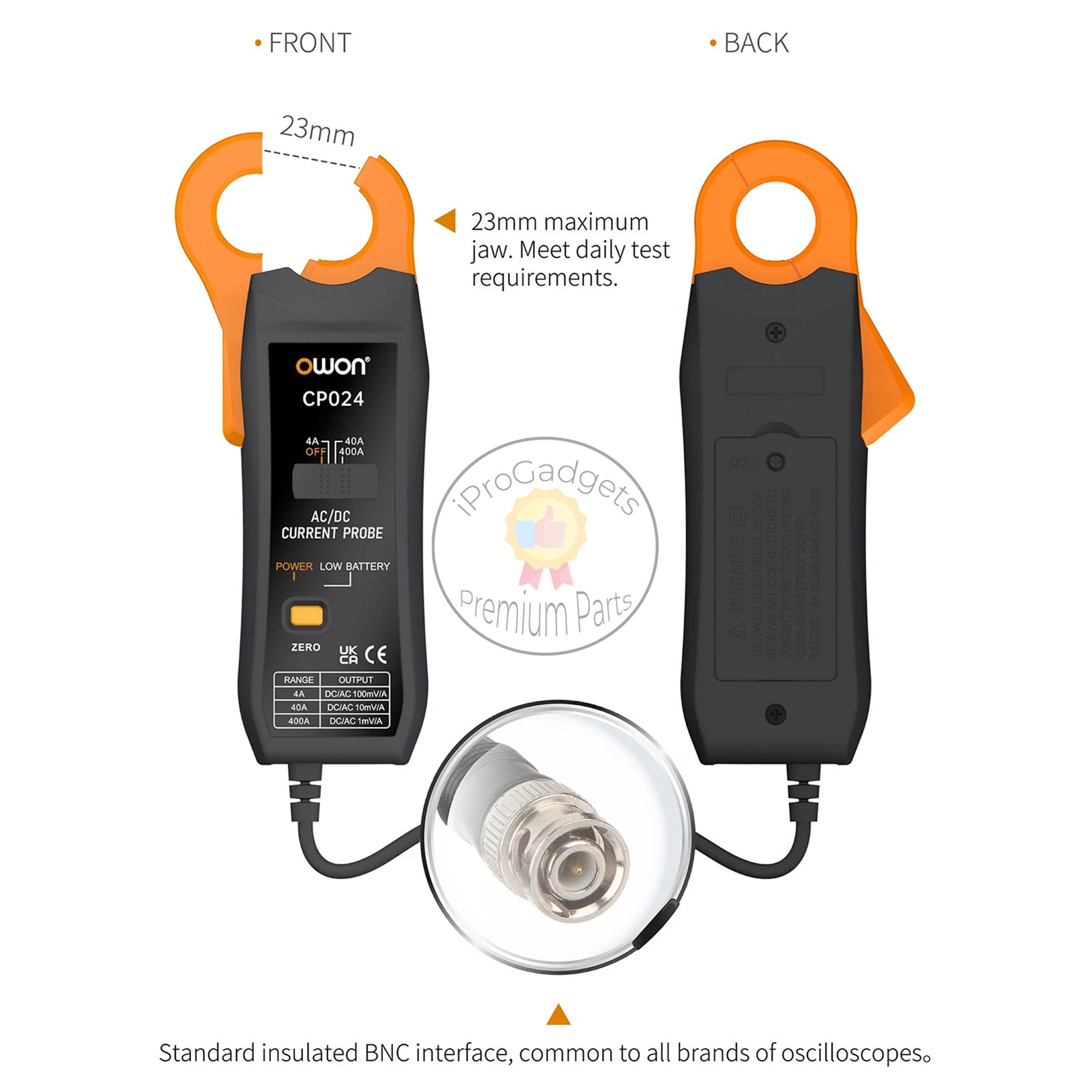

Jaw size : 23mm (Max)
Auto Zero at Power on
Low Battery Indication
Power supply: 9V 6F22 Battery (not included)
Operating Temperature: O ℃ to 50 ℃ , ≤ 70 % RH

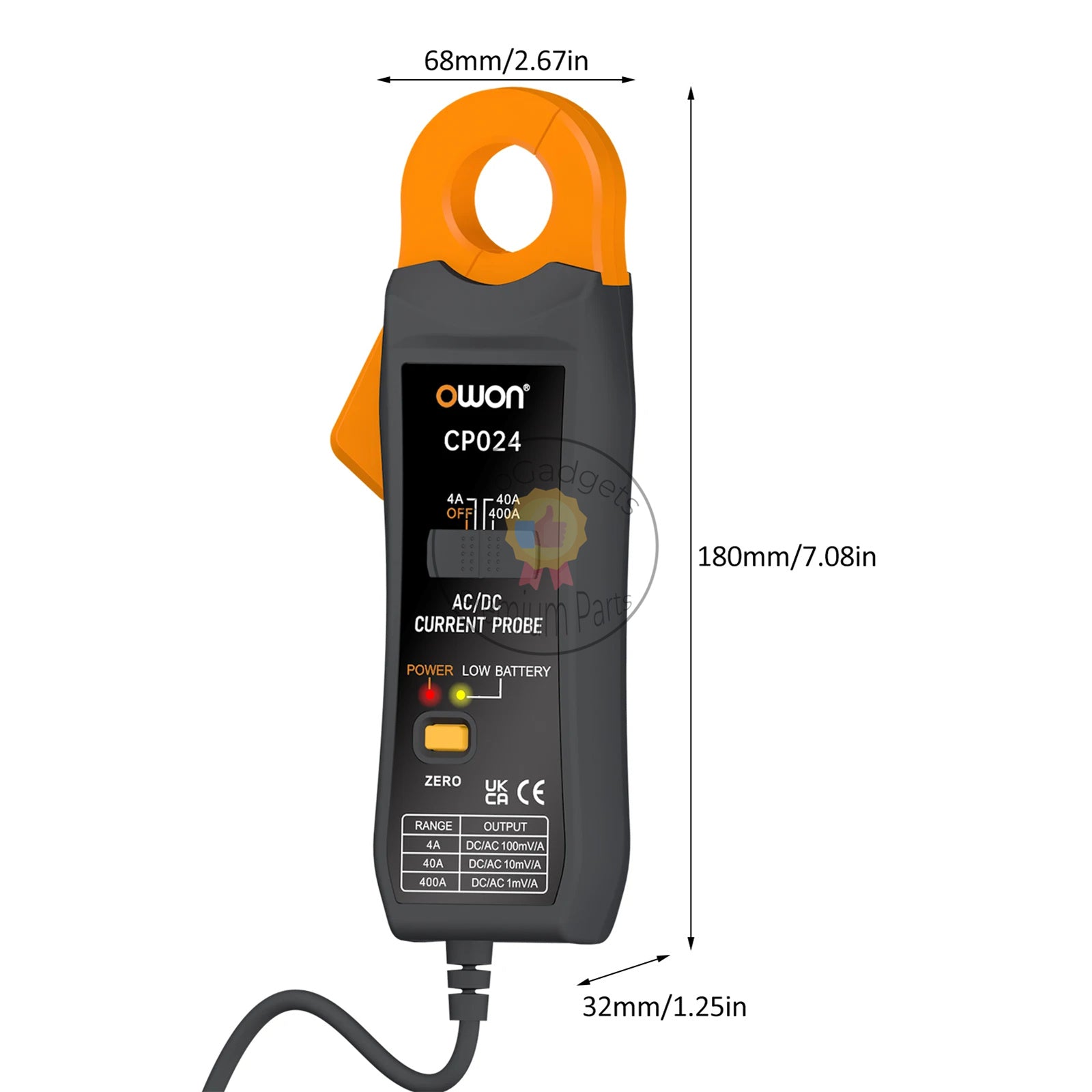

Item Size: 180 * 68 * 32 mm / 7.09 * 2.68 * 1.26 inch
Item Weight: 250g / 8.82oz
Packing Size: 22 * 10.5 * 4.8 cm / 8.66 * 4.13 * 1.89 inch
Packing Weight: 400g / 14.11oz

Packing List:
1 * Current Probe
1 * Cloth Bag
1 * Manual (English)
