Fnirsi LCR-ST1 Smart Tweezer LCR SMD ESR Mini Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools
iProGadgets Repair Tools Fnirsi LCR-ST1 Smart Tweezer LCR SMD ESR Mini Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools
Features:
Features:

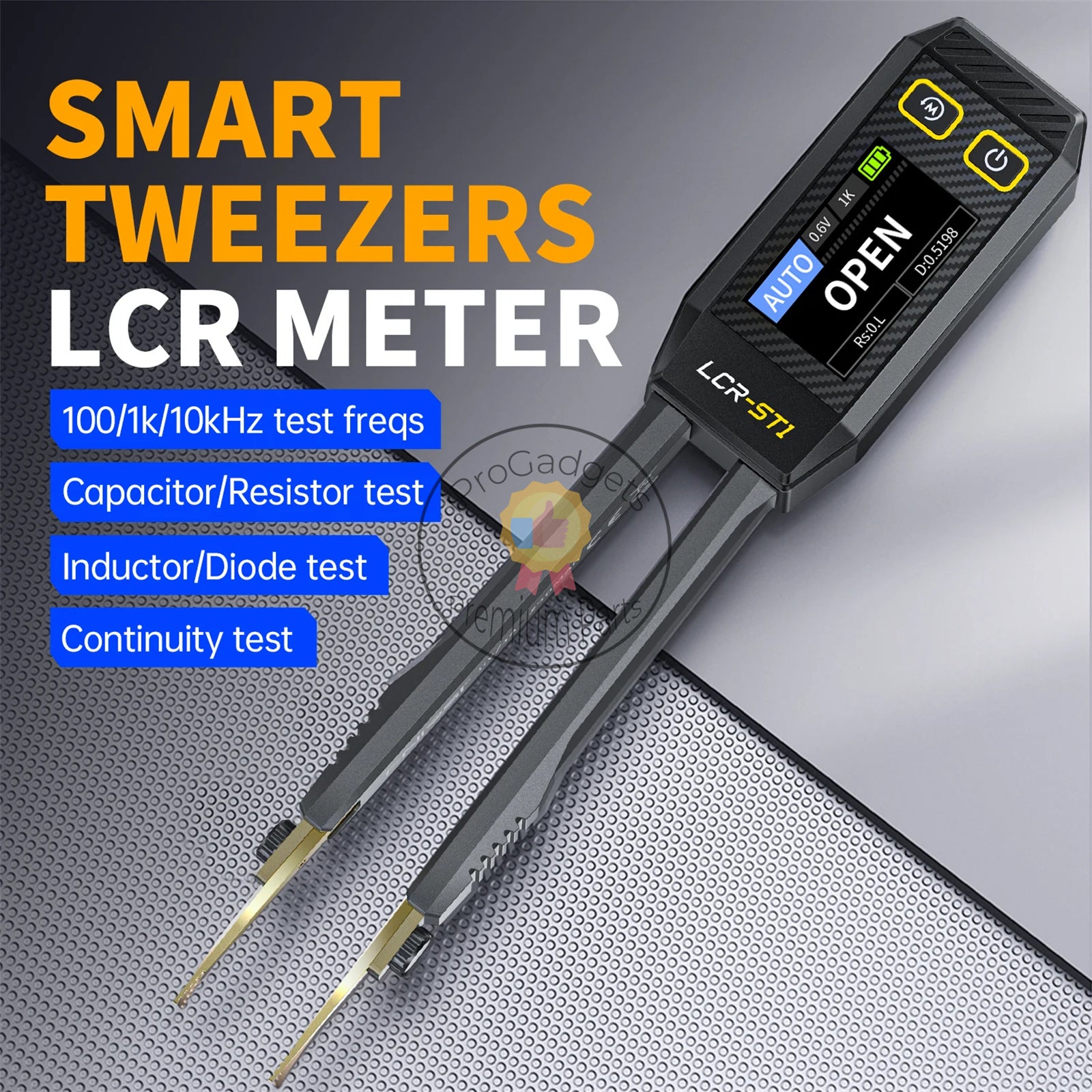

- The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument

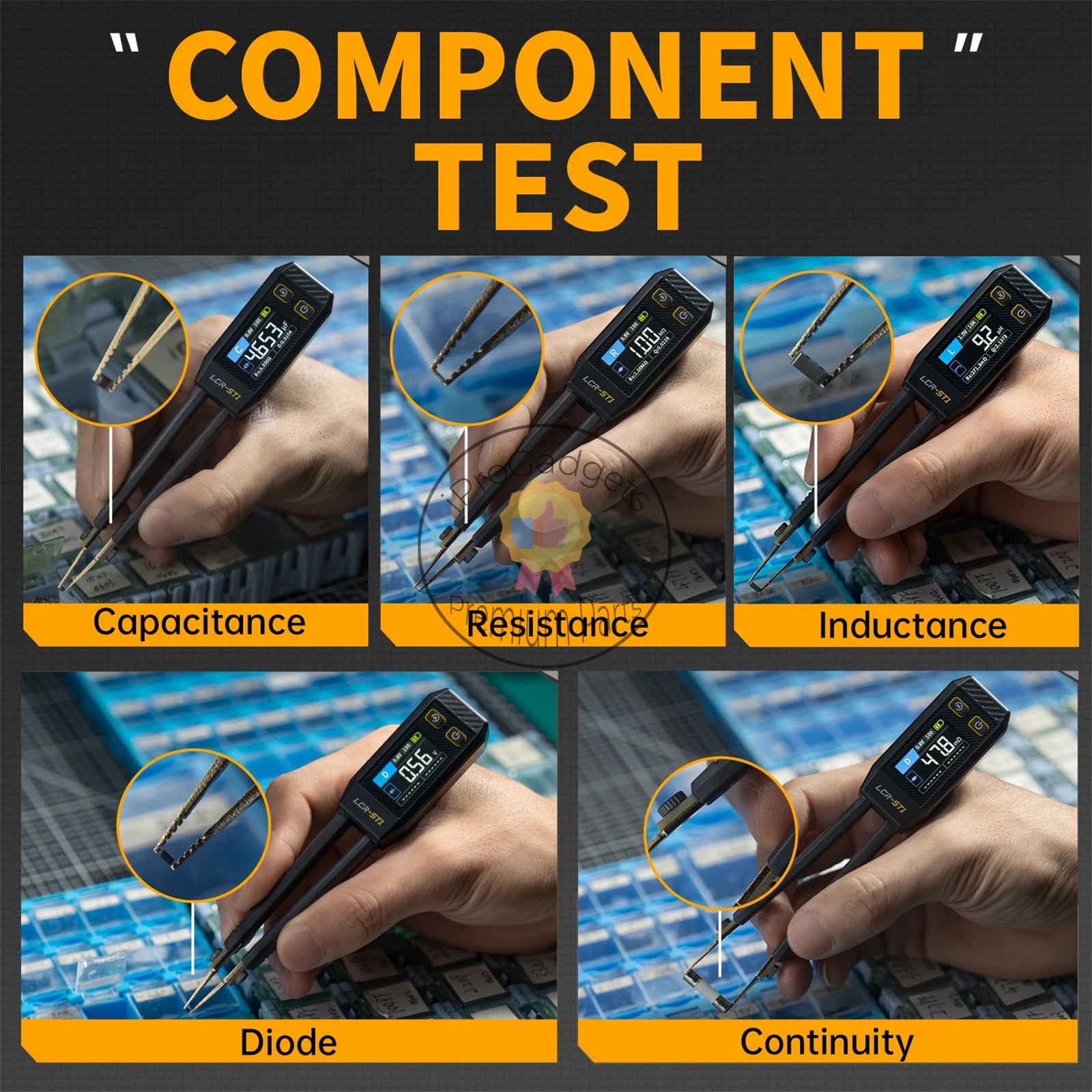

- It supports precise automatic measurements of resistance, capacitance, inductance, diodes, and Continuity.
- This product adopts advanced measurement technology to ensure high accuracy and stability
- Its 1.14-inch color screen display and magnetic adsorption function enhance the convenience of use
- The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
- The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components
- The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
- Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately
- Model: LCR-ST1
- Capacitance range: 1pF-22mF
- Inductance range: 1μh-10H
- Resistance range: 10mΩ-10MΩ
- Diode: On voltage 0.7V
- Frequency test: 100Hz, 1kHz, 10KHz
- Level test: 0.3V, 0.6V RMS

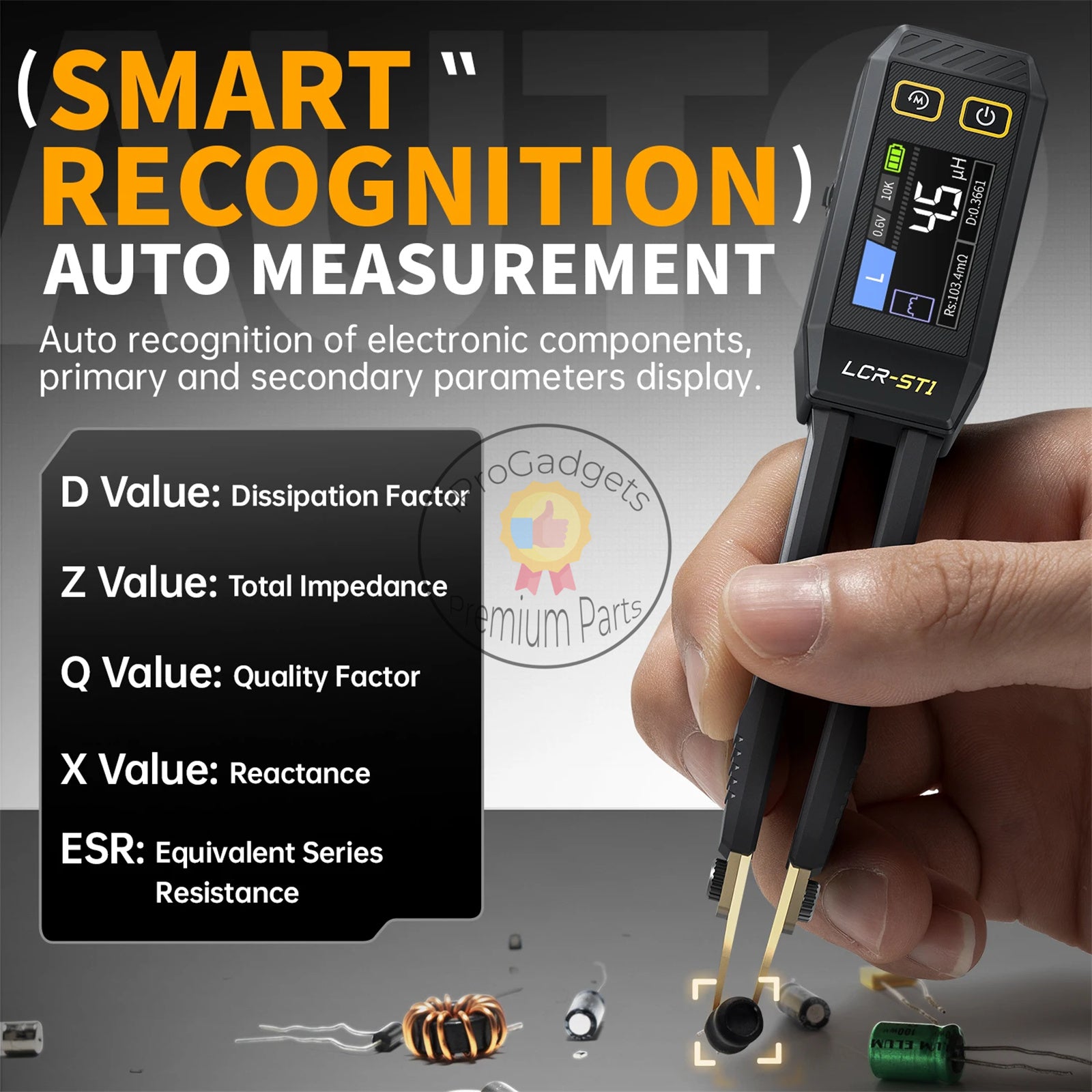

- Parameter display: ESR, D value, Q value, Z value, X value
- Display: 1.14'' color screen
- Charging Interface: Type-C, 5V/A
- Power Supply: 250mAh lithium battery
- Auto recognition measurement: Support

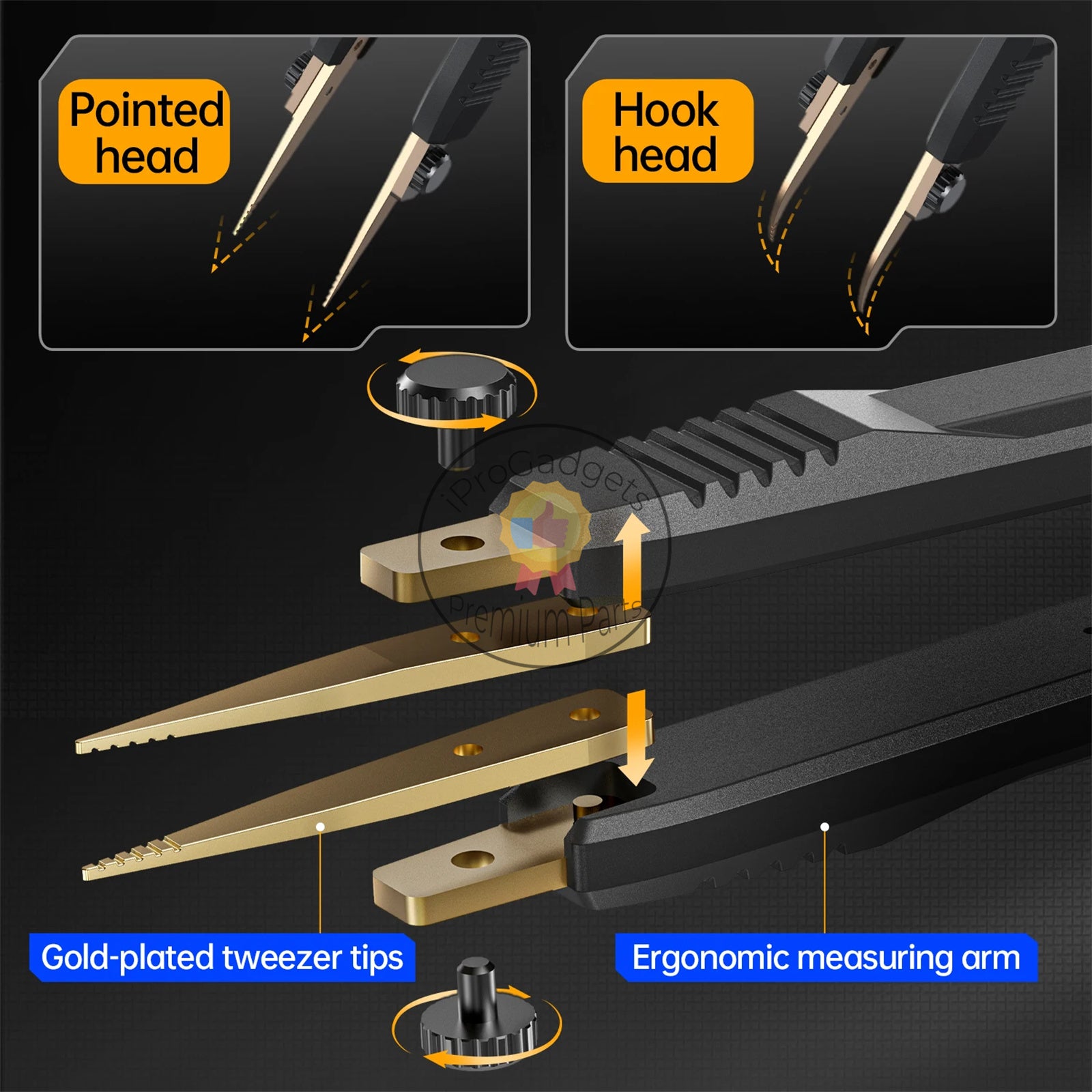

- Replaceable tweezer head: Support
- Auto shutdown: Support
- Data hold: Support

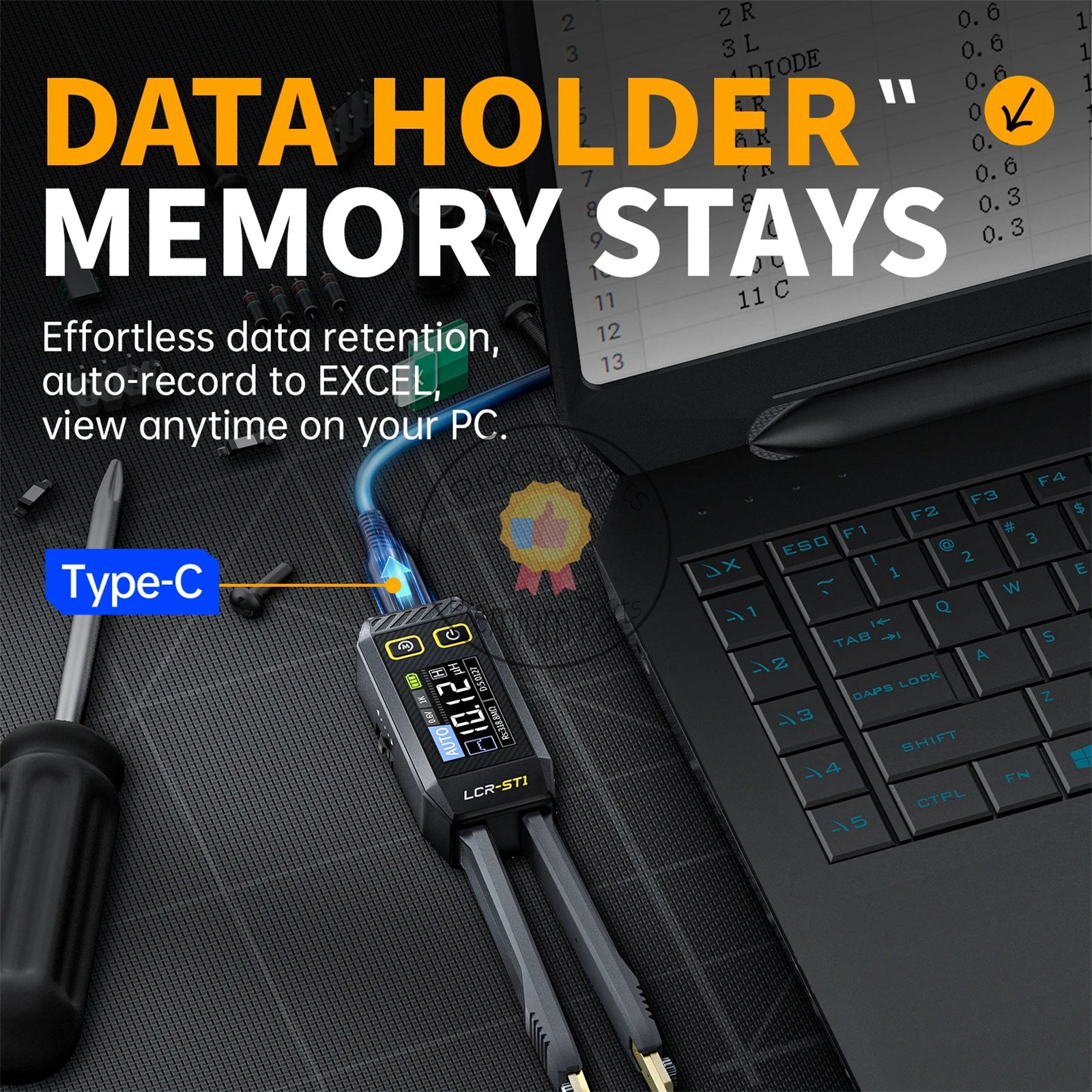

- History record: Connect to PC to view and export
- Language: Chinese, English
- Size: 28*19*150mm

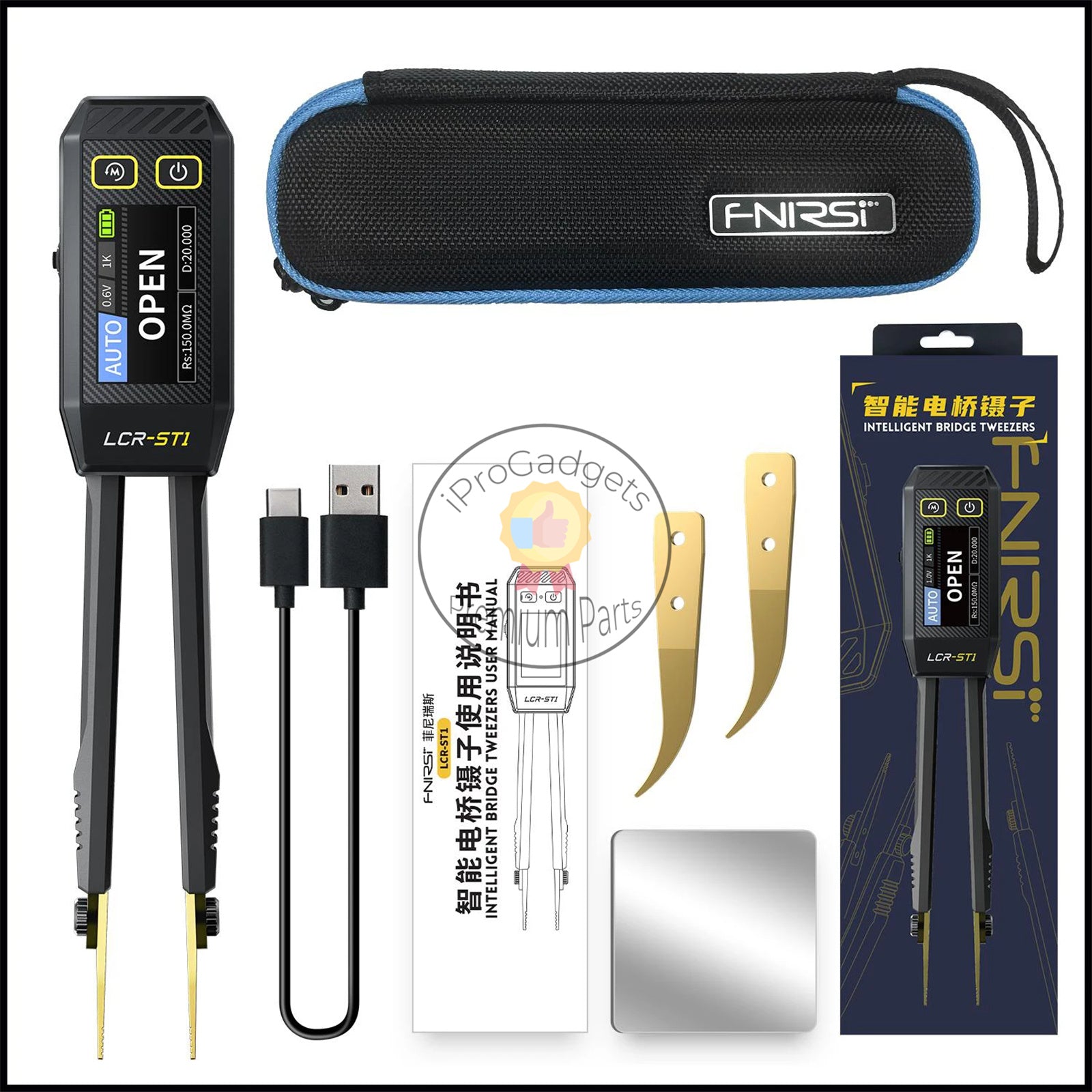

- 1 x Tweezers
- 1 x Pair of Gold Plated Tweezers with Curved Feet
- 1 x USB Cable
