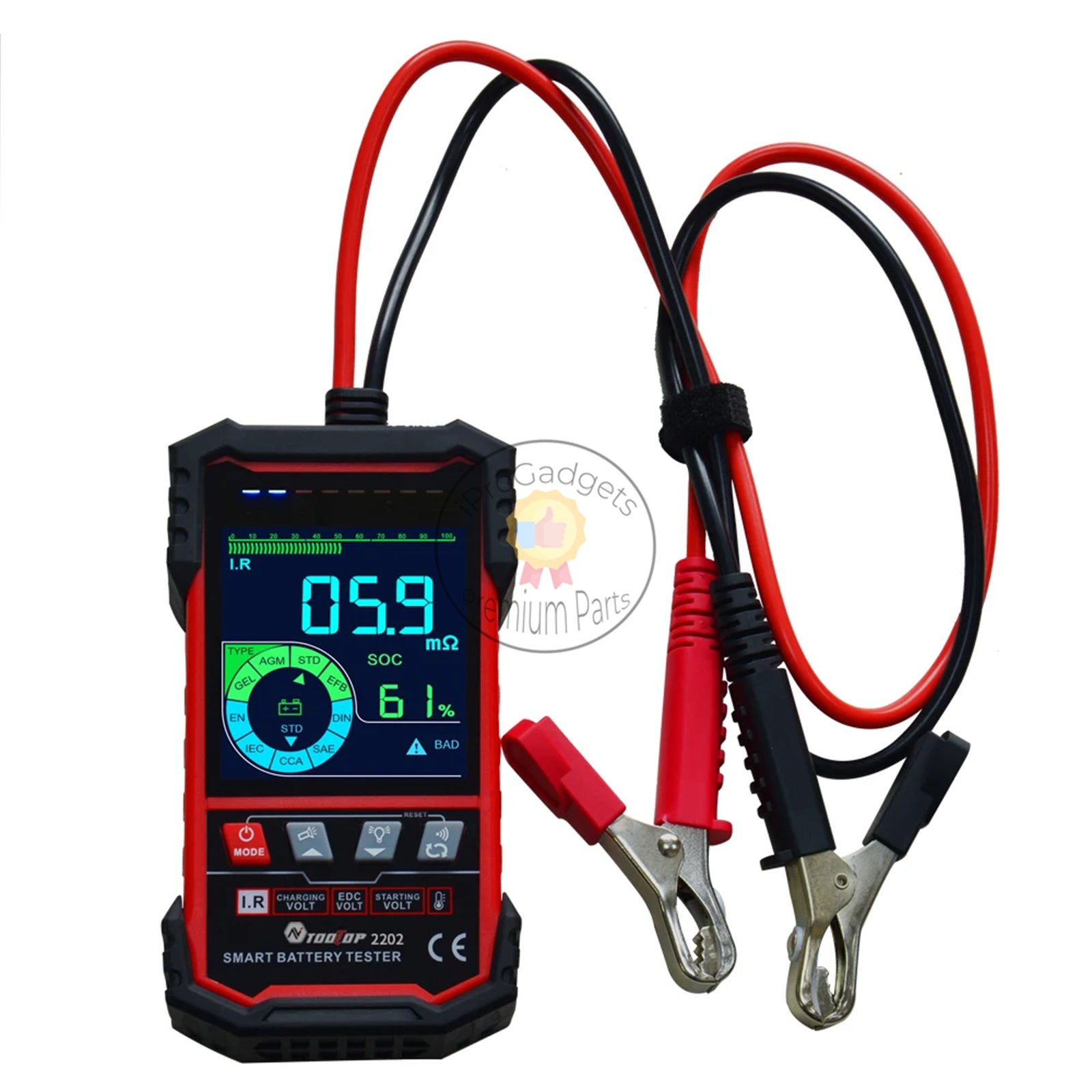

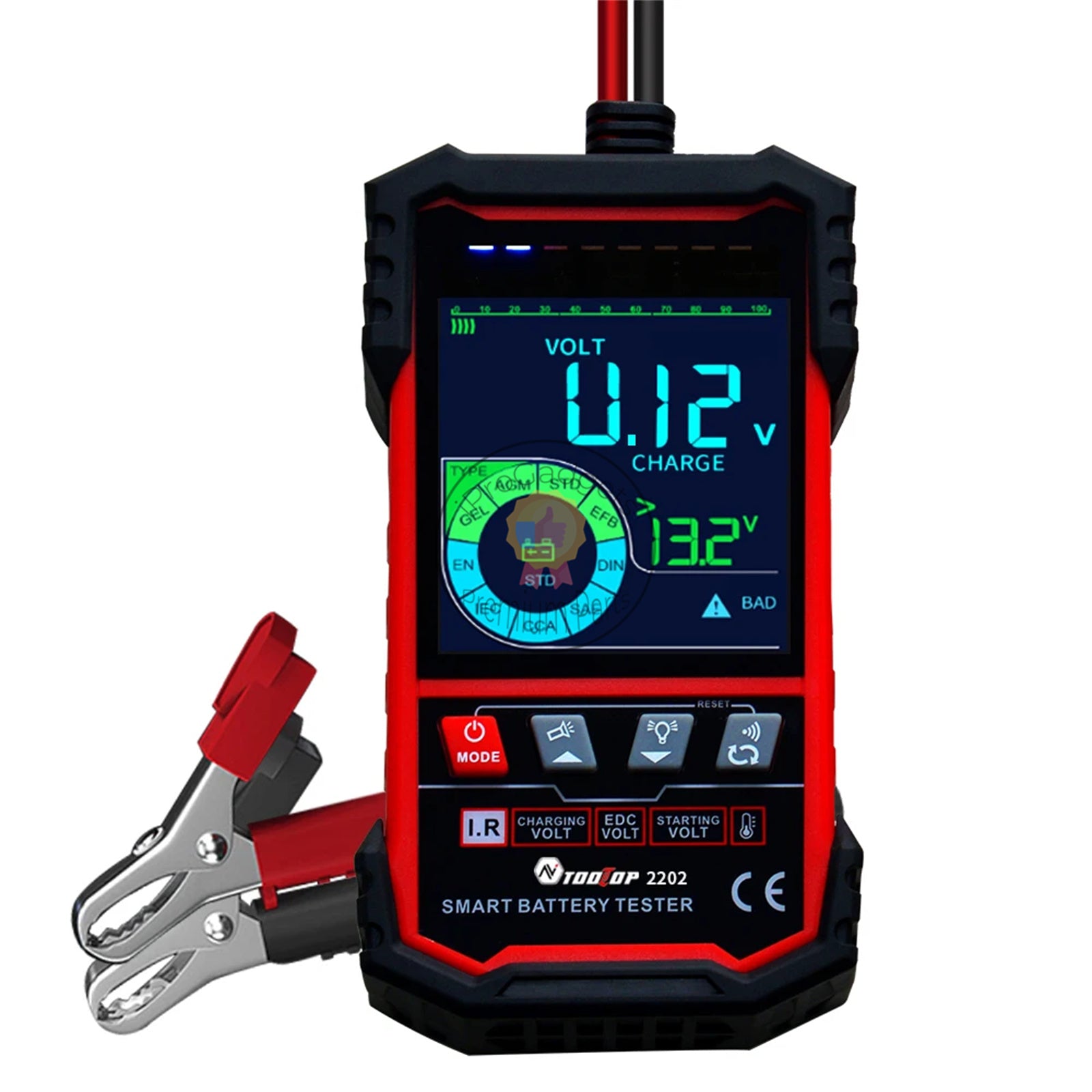

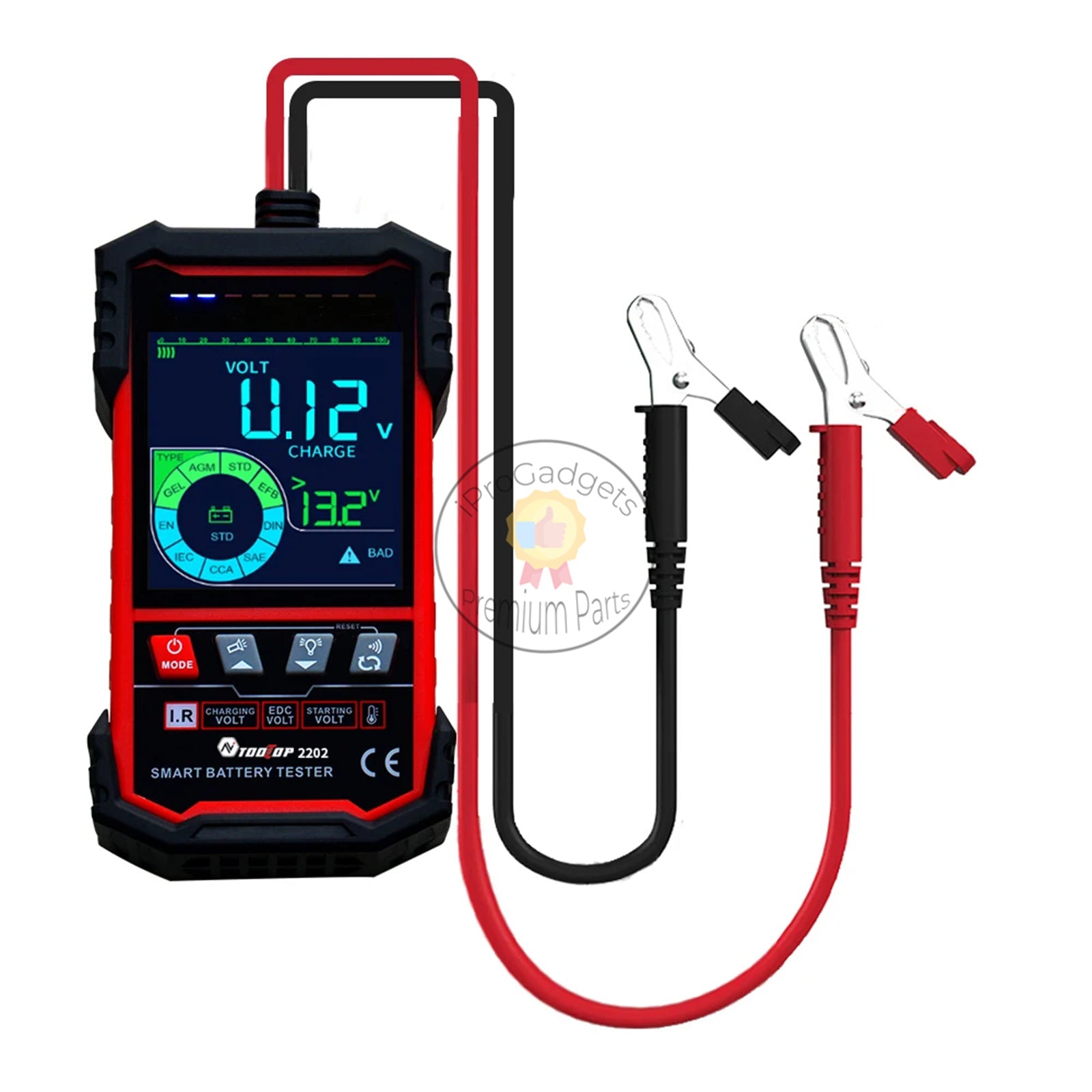

ET2202 12V/24V Vehicle Lead Acid Battery Tester Internal Resistance Charging Discharge Battery Life Auto Car Start Tester
iProGadgets Repair Tools ET2202 12V/24V Vehicle Lead Acid Battery Tester Internal Resistance Charging Discharge Battery Life Auto Car Start Tester
Features:
Specification:
Package includes:
Features:
- Support for battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance) function
- Can check the battery status and the discharging ability, by applying low-frequency signal will not damage the battery by applying large loading for discharging, support continuously
- Automatically identify 12.0V or 24.0V batteries, one-button selection of intelligent measurement
- Support input overvoltage, reverse polarity connection, high voltage connection protections, and poor contacts of test clip
- Convenient for engine temperature and air conditioning temperature measurement, more practical.
- 3.2-inch large LCD color screen for display functions status measuring results, the analog bar graph shows the battery lifespan after finishing tests
- The housing is made of TPR materials, is more comfortable to use, and has more comprehensive protections
- Allow to connect batteries in cars, It does not need to take the battery out for a test
- Various types of batteries EN, IEC, CCA, SAE, DIN
- All copper material of red and black wire clamp, more than 10000 occlusion tests, more reliable to use
Specification:
- Name: Intelligent Battery Tester
- Material: TPR+Plastics+Metal
- Type: ET2202
- Battery support: 12.0V/24.0V activated leadacid battery
- Internal resistance measurement: Support
- Current of discharge: Support
- Analysis of lifespan: Support
- Electric quantity detection: Support
- Ability to start: Support
- Quality of battery: Support
- Function of lighting: Support
- Car starting test: Support
- Temperature detection: Support
- Vehicle charging capacity: Support
- Vehicle load measurement: Support
- Range CCA: 100-1999
- Range of capacity: ЗАН-250AH
- Test method: Four-wire Kelvin test
- Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN
- Power supply: storage battery power supply/power supply
- Other: White backlight, overvoltage protections, reverse input protections
- Screen size: 55*57mm
- Package size: 216*145*49mm
Package includes:
- 1 x Tester
- 1 x Temperature Probes
- 1 x Power Cord
