Adjustable Power Supply KA3005D 30V 5A Precision Digital Programmable Laboratory Switching DC Power Supply 220V
Adjustable Power Supply KA3005D 30V 5A Precision Digital Programmable Laboratory Switching DC Power Supply
220V
Weight: 9.5 lbs. (4.3 Kg)
220V
Main features:
Compact Design

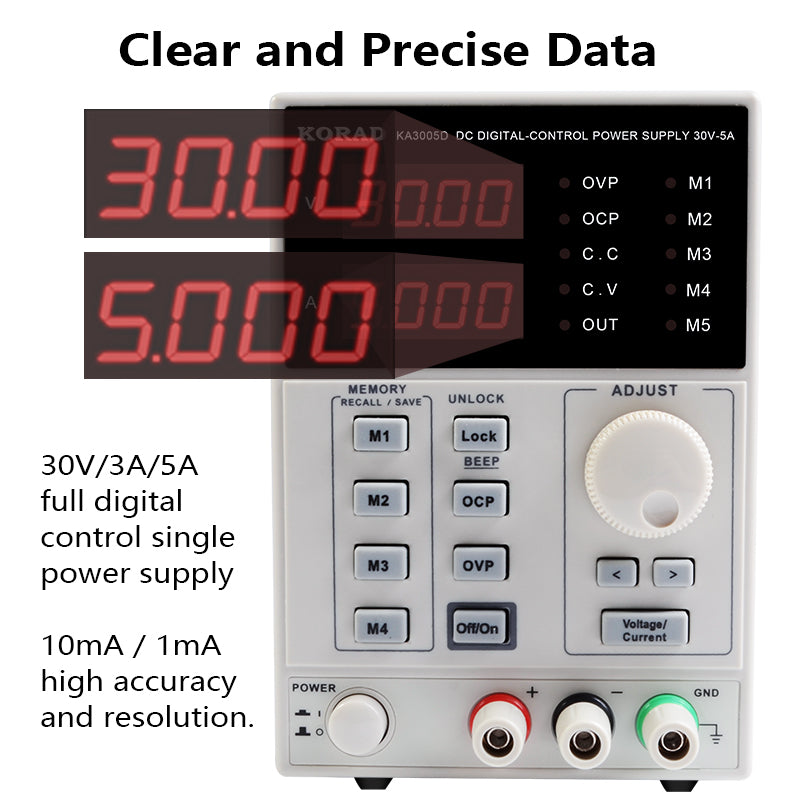

Dual 4 Digit LED Displays
Digital Controls
Output switch control
4 sets of parameters can be stored inside for fast recall

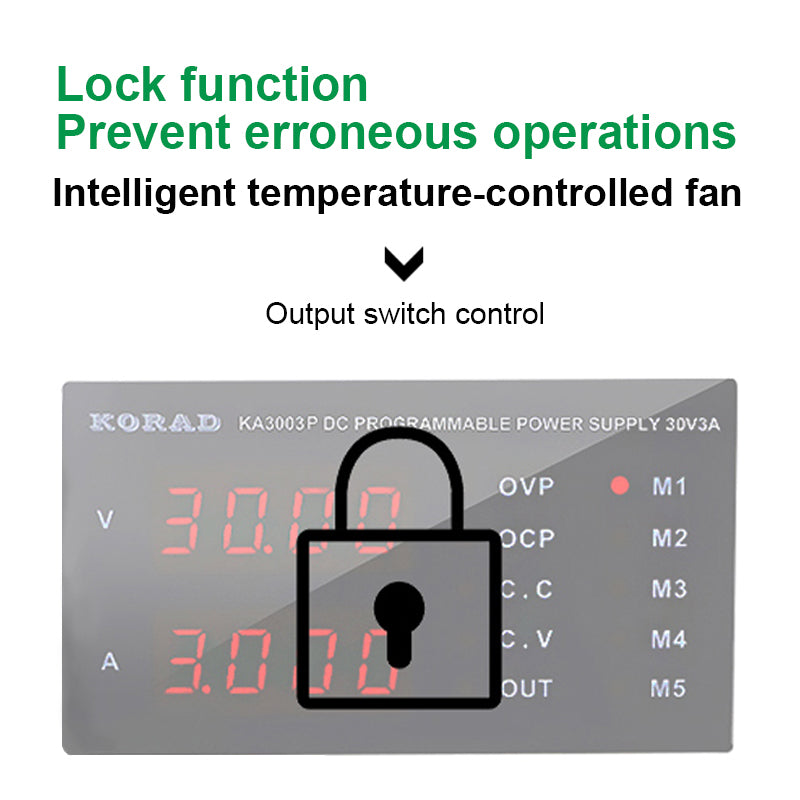

Keyboard Lock to prevent accidental changing of set parameters
Circuit protection for over load, short circuit and over temperature.
Automatic switching between mA and A display

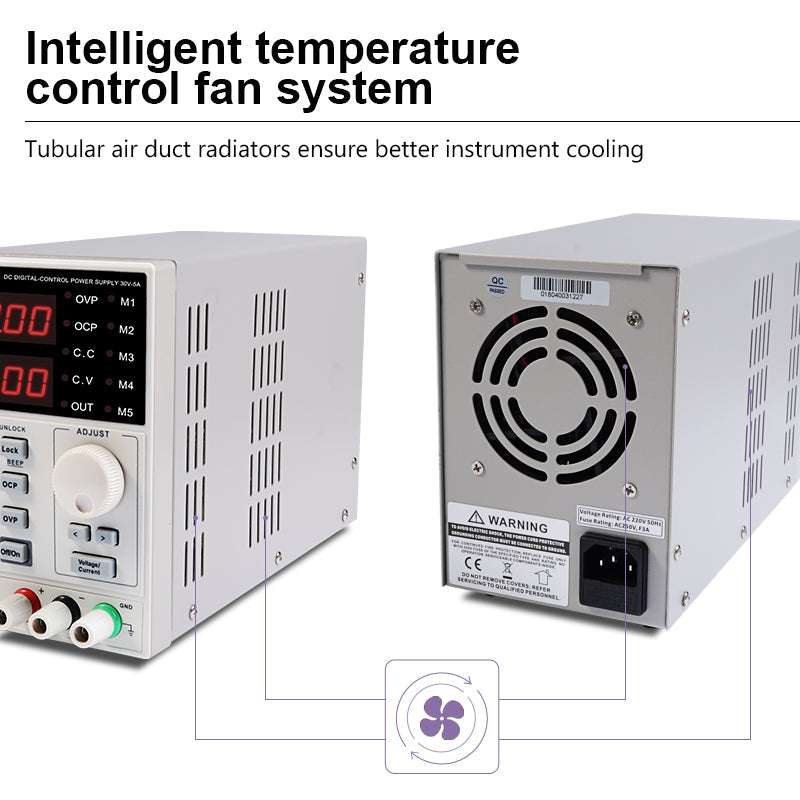

Quiet variable speed fan
Operating Conditions:
Input voltage: 220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F (0-40 ºC)
Operating temperature: 32-104 F (0-40 ºC)
Operating humidity: < 80%RH
Storage temperature: 32-158 F (0-70 ºC)
Storage humidity: < 70%RH

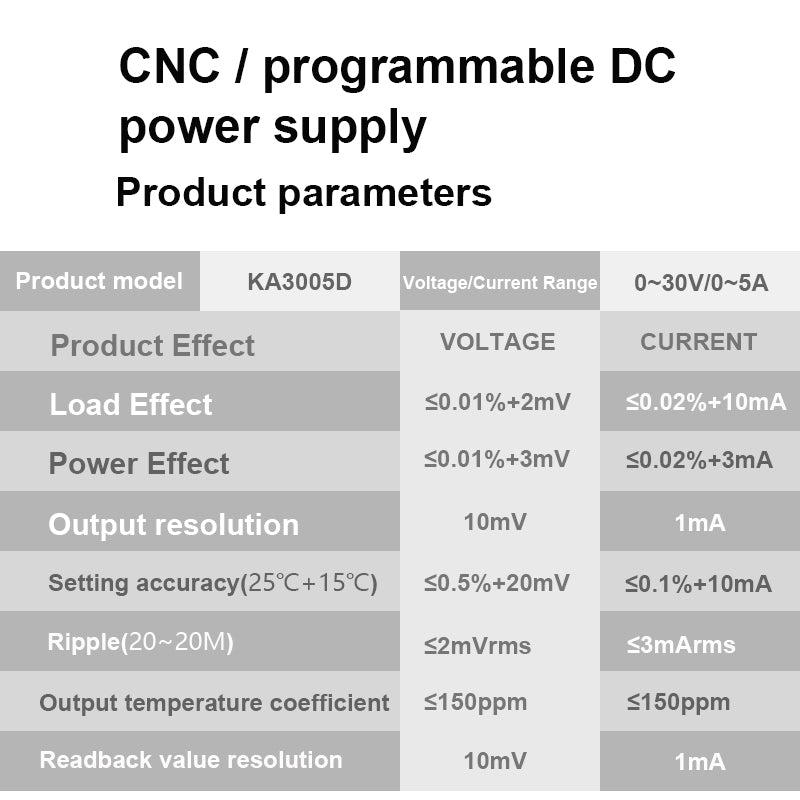

Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV
Setup Resolution: 10 mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10 mV
Stable Current:
Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3 mA
Ripple: < 3mARMS
Read back Accuracy: 1 mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5 mA
Weight: 9.5 lbs. (4.3 Kg)

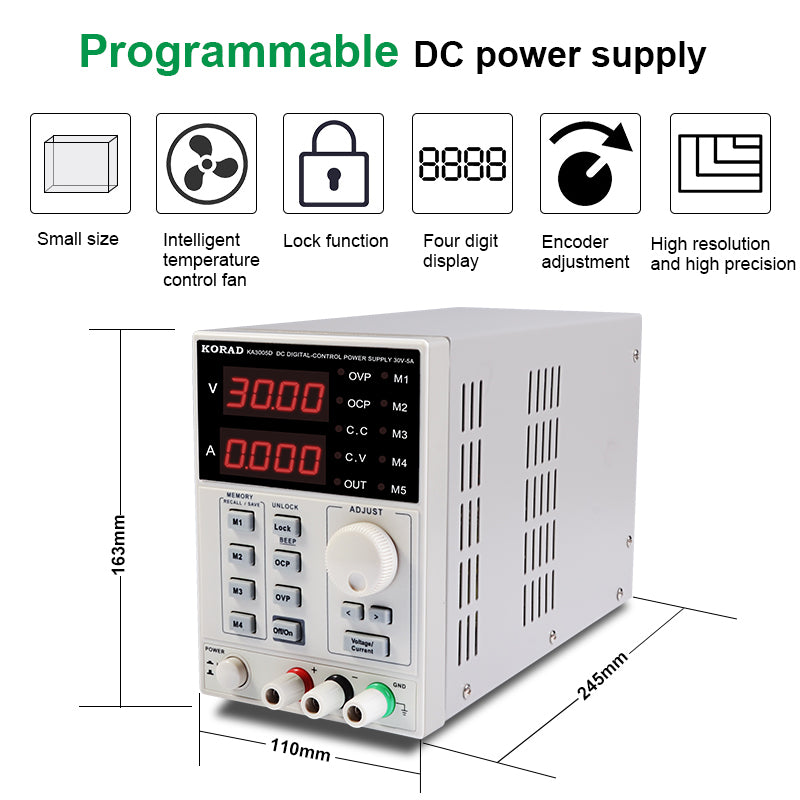

Dimensions: 4.3 x 6.1 x 10.25 inches (110 x 156 x 260mm)

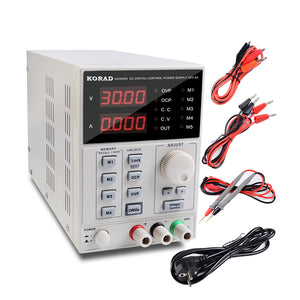

20A meter probe
Before Shipping:
Our QC Will Test the LCD and Assure it is 100% Good Function Before Shipping.
Before Shipping:
Our QC Will Test the LCD and Assure it is 100% Good Function Before Shipping.
