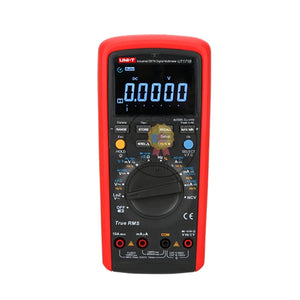

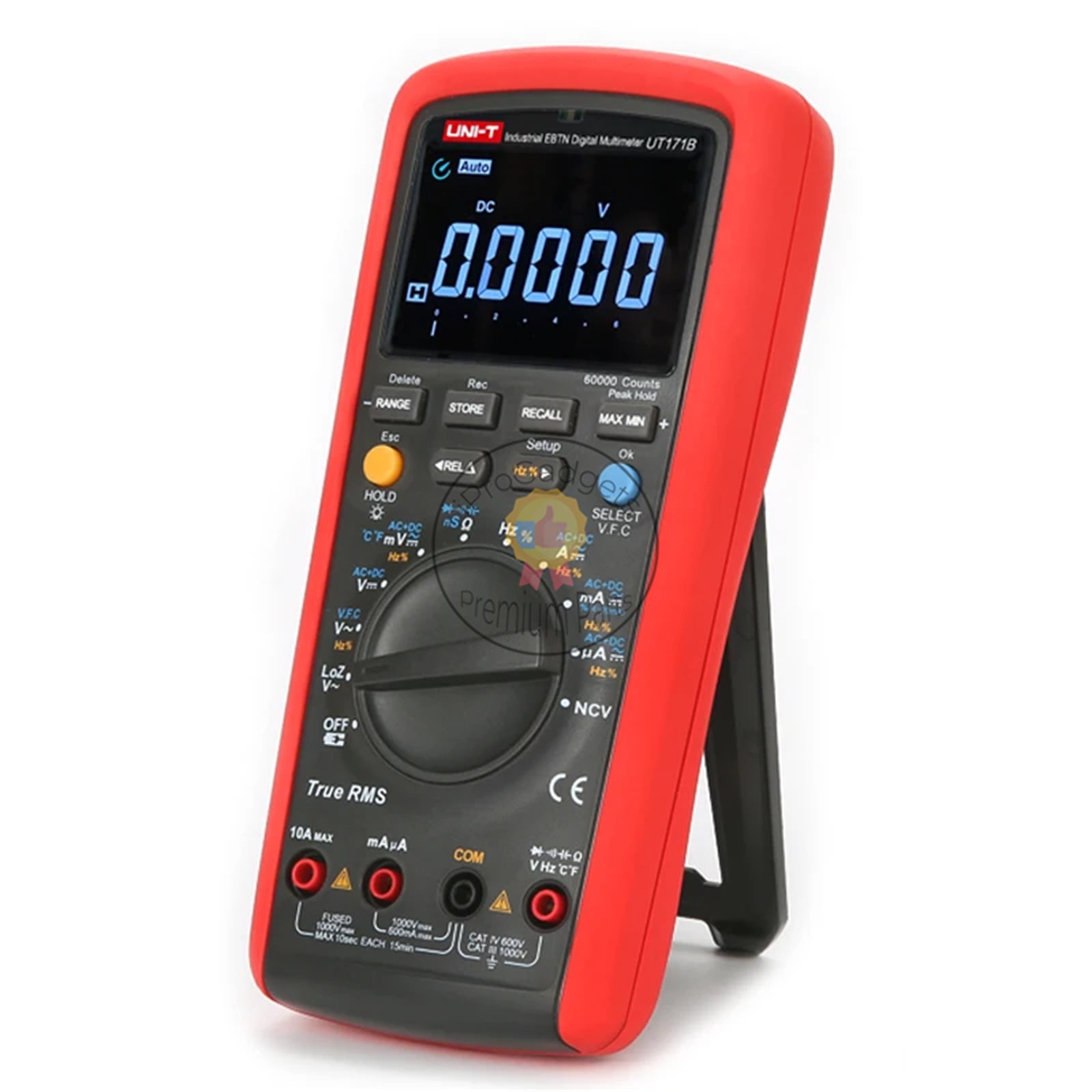

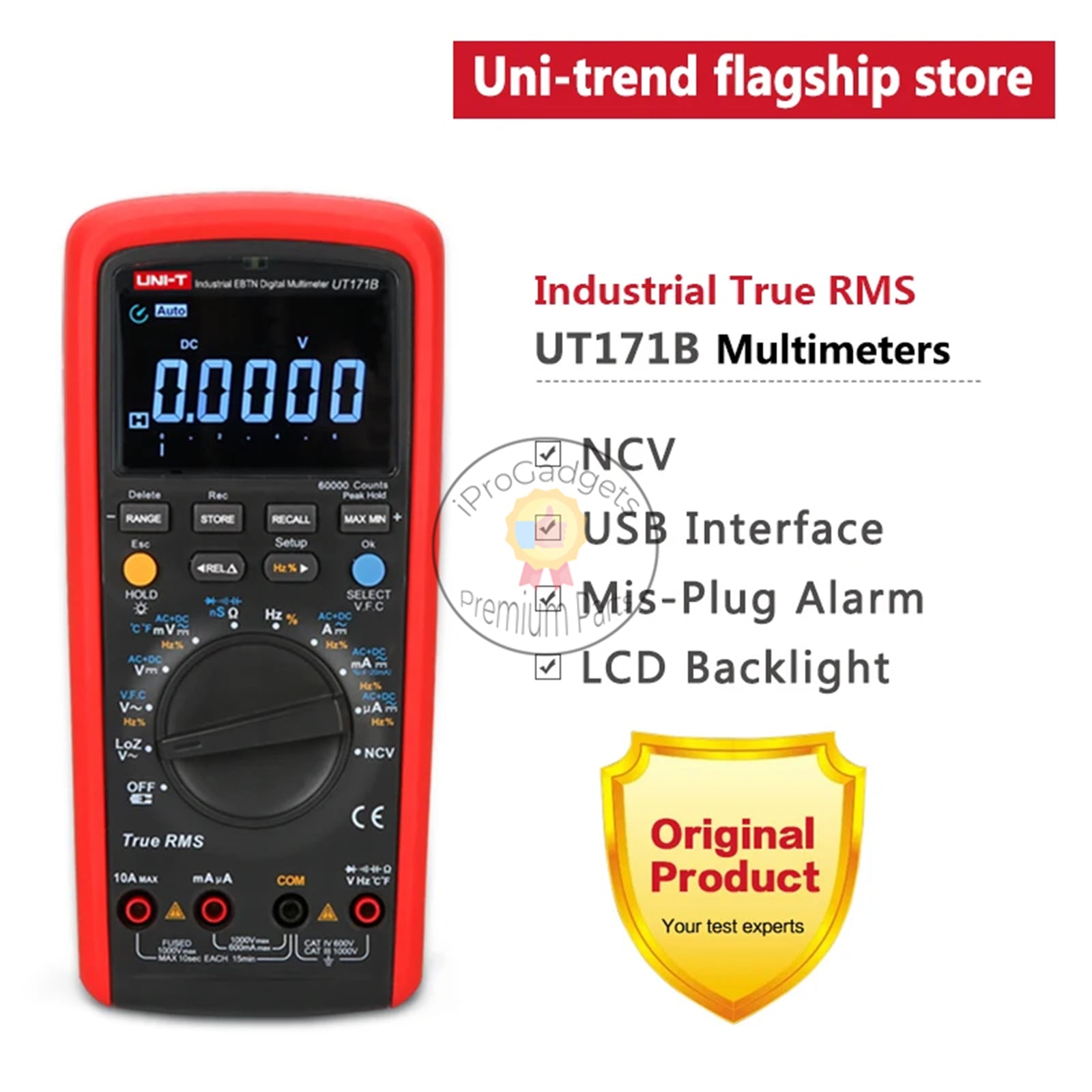

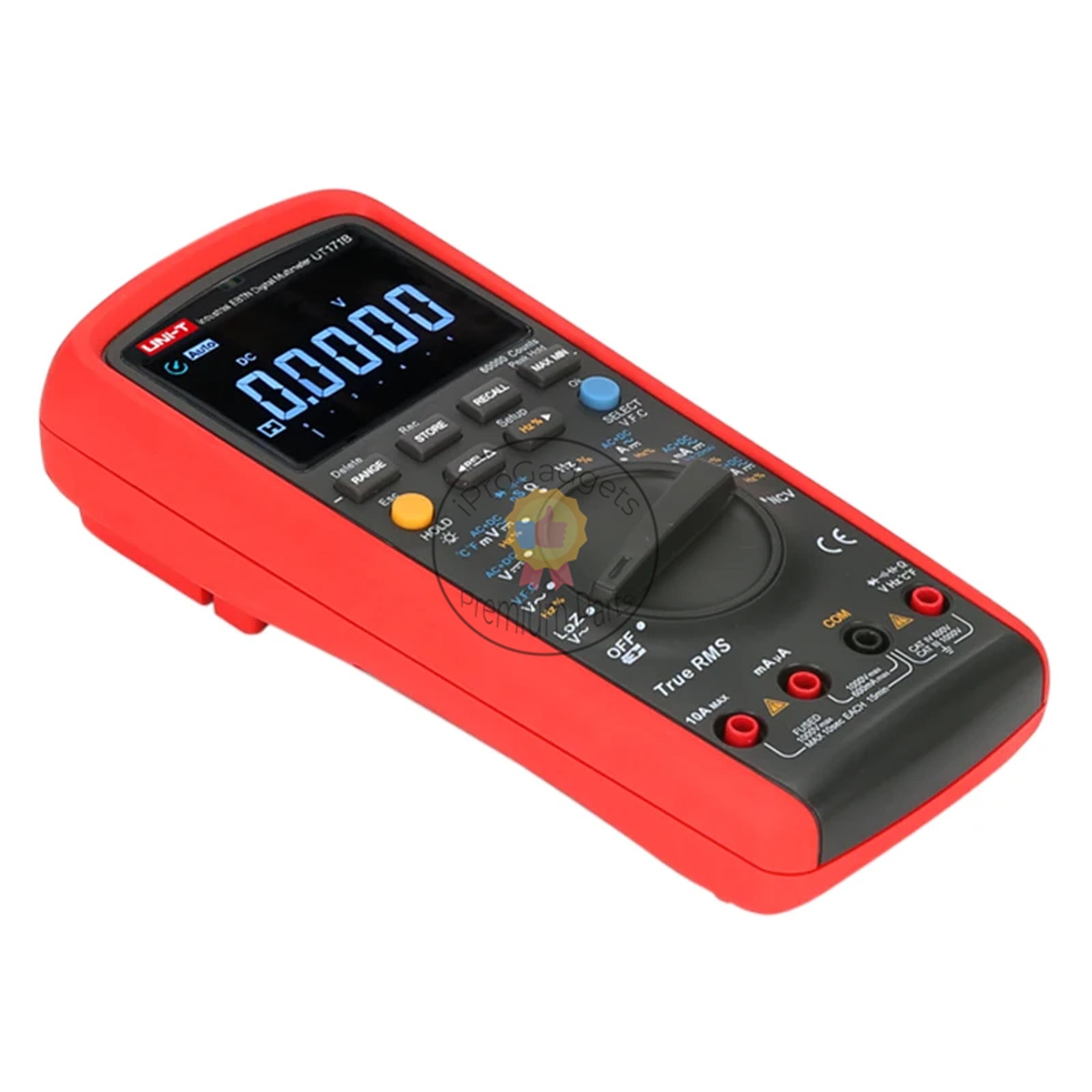

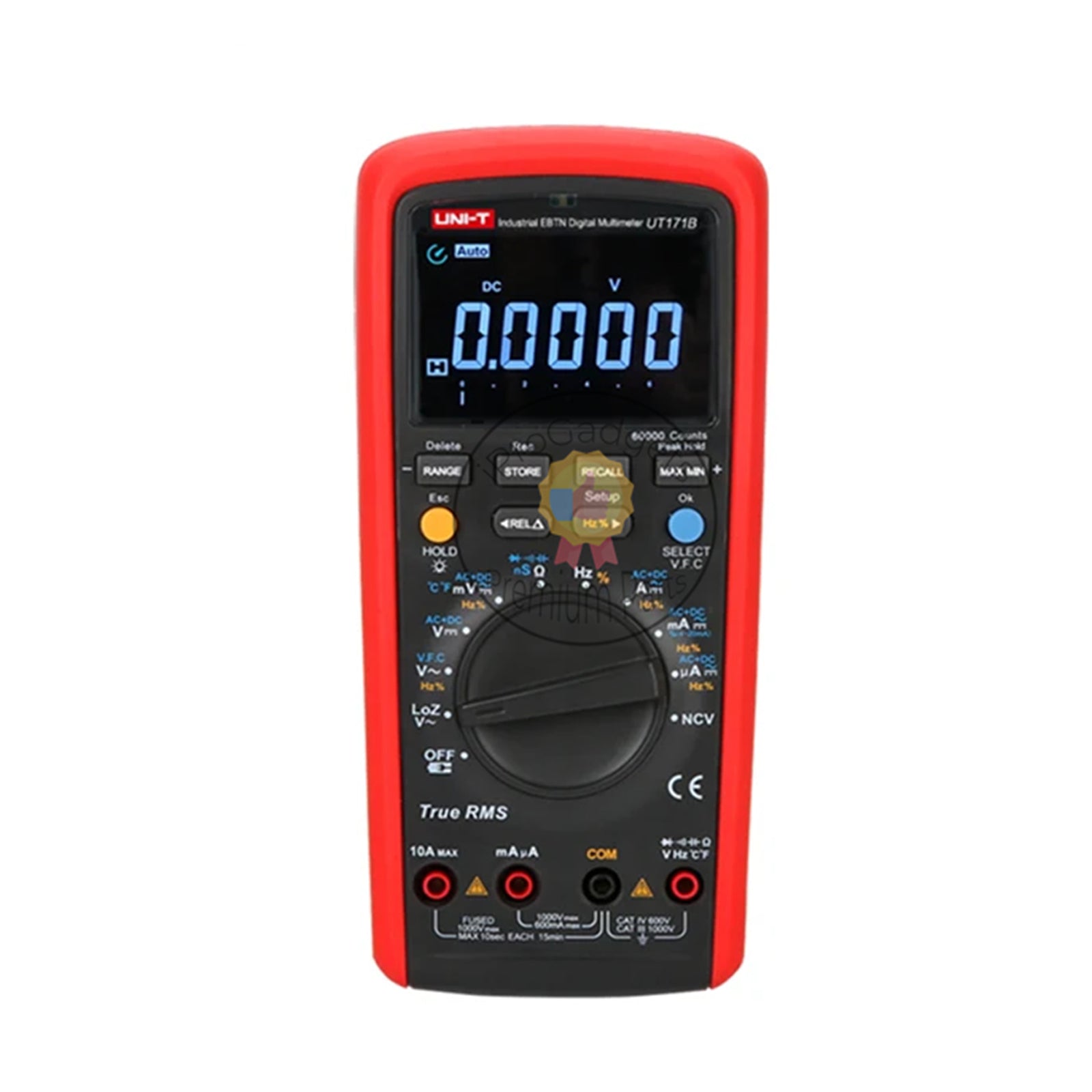

UNI-T UT171B Industrial True RMS Digital Multimeters Admittance 60K Counts Resistance Tester Original Measure EBTN LCD USbbB

  • $173.00
    Precio unitario por
Los gastos de envío se calculan en la pantalla de pagos.


iProGadgets Repair Tools UNI-T UT171B Industrial True RMS Digital Multimeters Admittance 60K Counts Resistance Tester Original Measure EBTN LCD USbbB

Features:
  • Measuring speed (5 times/s) is two times the speed of the other ten thousand meters
  • Variable square wave signal output (frequency 0~4800Hz 0.5Hz, low impedance)
  • Counts 40000/60000/RMS True
  • LoZ AC voltage test
  • uA/mA/A AC/DC current test
  • AC+DC measurement model
  • Resistance, electrical conductivity measurement nS
  • VFC household industrial frequency conversion voltage test
  • Built-in lithium battery 7.4V/1800mA, charging tips circuit
  • Temperature test -40~1000℃
  • IIl 1000V/CAT IV600V CAT
  • With electronic storage records 1000/10000
  • Support USB/Bluetooth transmission mode
  • Anti misplugging alarm
  • It can be used for large current 20A measurement
Specification:
  • Model: UT171B
  • DC Voltage (V): 600mV/6V/60V/600V/1000V ±(0.025%+5)
  • AC Voltage (V): 600mV/6V/60V/600V/750V ±(0.4%+40)
  • DC Current(A): 600uA/6000uAV60mA/600mA/6A/10A ±(0.15%+2)
  • AC Current (A): 600uAW6000uA/60mA/600mA/6A/10A ±(0.75%+5)
  • Resistance (Q): 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.05%+2)
  • Admittance(nS): 60nS ±(1.0%+10)
  • Capacitance(F): 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(2.5%+40)
  • Frequence (Hz): 10Hz~10MHz ±(±0.01%+5)
  • Temperature(C): 40℃~1000℃ ±(1.0%+30)
  • Temperature(F): 40℉~1832℉±(1.5%+50)
  • Display Count: 60000
  • Auto/Manual Range: Yes
  • True RMS: Yes
  • Bandwidth(Hz): Yes
  • AC DC: Yes
  • V.F.C: Yes
  • 4-20mA Loop: Yes
  • LoZ(ACV): Yes
  • Diode: Yes
  • Continuity Buzzer: Yes
  • Duty Cycle: Yes
  • NCV: Yes
  • Data Hold/MAX/MIN: Yes
  • Relative Mode: Yes
  • Peak Hold: Yes
  • Data Storage: Yes
  • Data Comparsion Function: Yes
  • USB Interface: Yes
  • Display Type: Yes
  • CD Backlight: Yes
  • Analogue Bar Graph: Yes
  • Mis-plug Alarm: Yes
  • Low Battery Indication: Yes
  • Rechargeable Battery: Yes
  • Auto Power Off: Around 15 Minutes
  • Input Protection: Yes
  • Input Impedance for DCV: Around 1GΩ
  • Power: 4V 2000mAh Li-ion Battery
Package includes:
  • 1 x Multimeter
  • 1 x Test Lead
  • 1 x Point Contact Temperature Probe
  • 1 x USB Interface Cable
