RF4 RF-C39L Dual Spectrum Thermal Imager With Fixed Bracket Infrared Thermal Imaging Mobile Phone Detection and Repair

  • $340.00
    Precio unitario por
Los gastos de envío se calculan en la pantalla de pagos.


iProGadgets Repair Tools RF4 RF-C39L Dual Spectrum Thermal Imager With Fixed Bracket Infrared Thermal Imaging Mobile Phone Detection and Repair

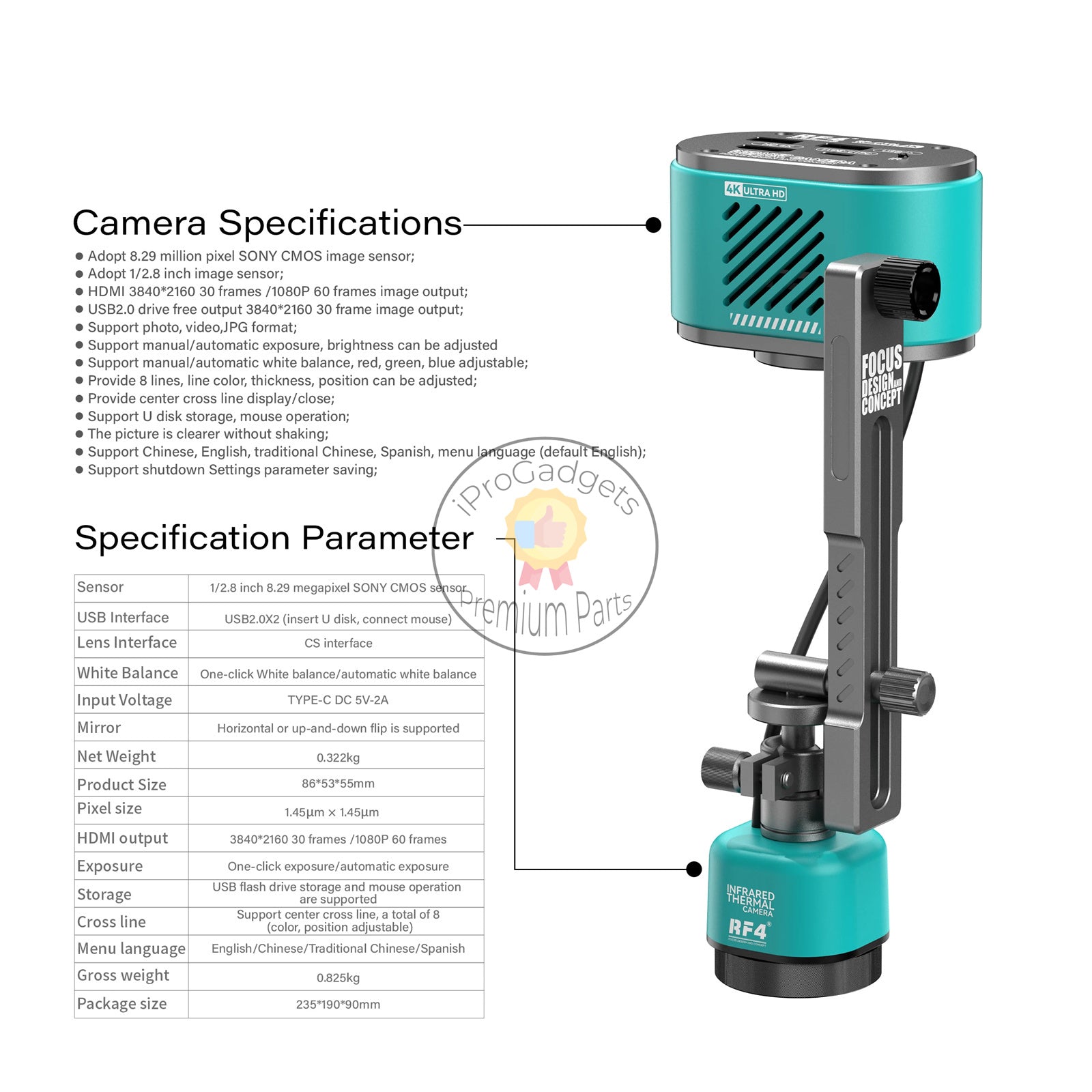

Specifications:
Camera:
  • Adopt an 8.29 million pixel SONY CMOS image sensor
  • Adopt 1/2.8 inch image sensor
  • HDMl 3840*2160@30frames/1080P@60frames image output
  • USB2.0 drive-free output, 3840*2160@30frames image output
  • Support photo, video, JPG format
  • Support manual/automatic exposure, brightness can be adjusted
  • Support manual/automatic white balance, red, green, and blue adjustable
  • Provide 8 lines, line color, thickness, and position can be adjusted
  • Provide center cross-line display/close
  • Support U-disk storage, mouse operation
  • The pictures are clearer without shaking
  • Support Chinese, English, Traditional Chinese, Spanish, Menu language(default English)
  • Support shutdown settings parameter saving
Thermal Imaging:
  • Sensor: 1/2.8 inch 8.29-megapixel SONY CMOS sensor
  • USB Interface: USB2.0 *2 (insert U disk, connect mouse)
  • Lens Interface: CS interface
  • White Balance: One-click white balance/Automatic white balance
  • Input Voltage: Type-C DC 5V/2A
  • Mirror: Horizontal or up-and-down flip is supported
  • Net Weight: 0.322kg
  • Product Size: 86*53*55mm
  • Pixel Size: 1.45μm ×1.45μm
  • HDMI Output: 3840*2160@30frames/1080P@60frames
  • Exposure: One-click exposure/Automatic exposure
  • Storage: USB flash drive storage and mouse operation are supported
  • Cross Line: Support center cross line, a total of 8 (color, position adjustable)
  • Menu language: English/Chinese/Traditional Chinese/Spanish

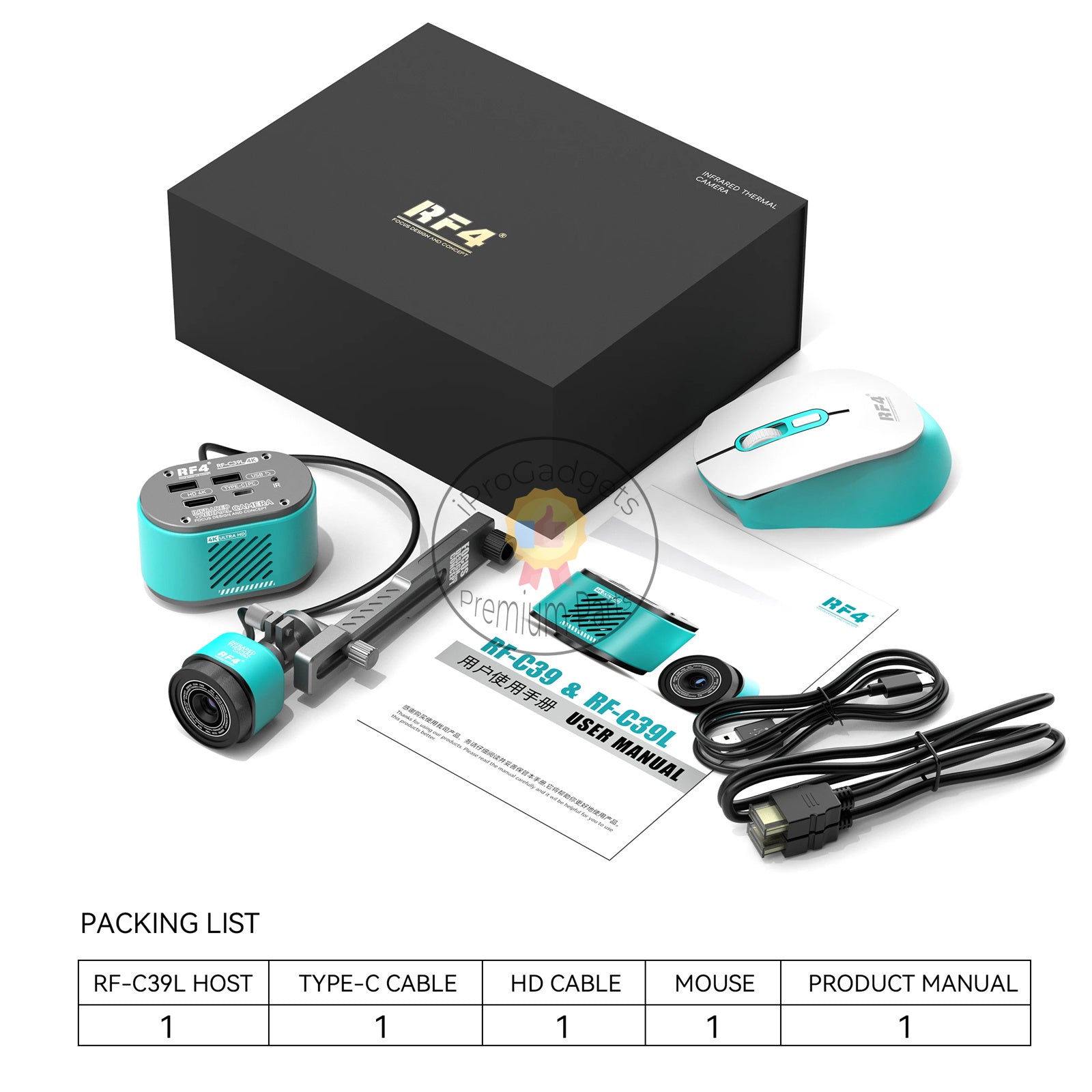

Package includes:
1 x Thermal Camera
1 x USB Cable
1 x High Definition Cable
1 x Mouse
