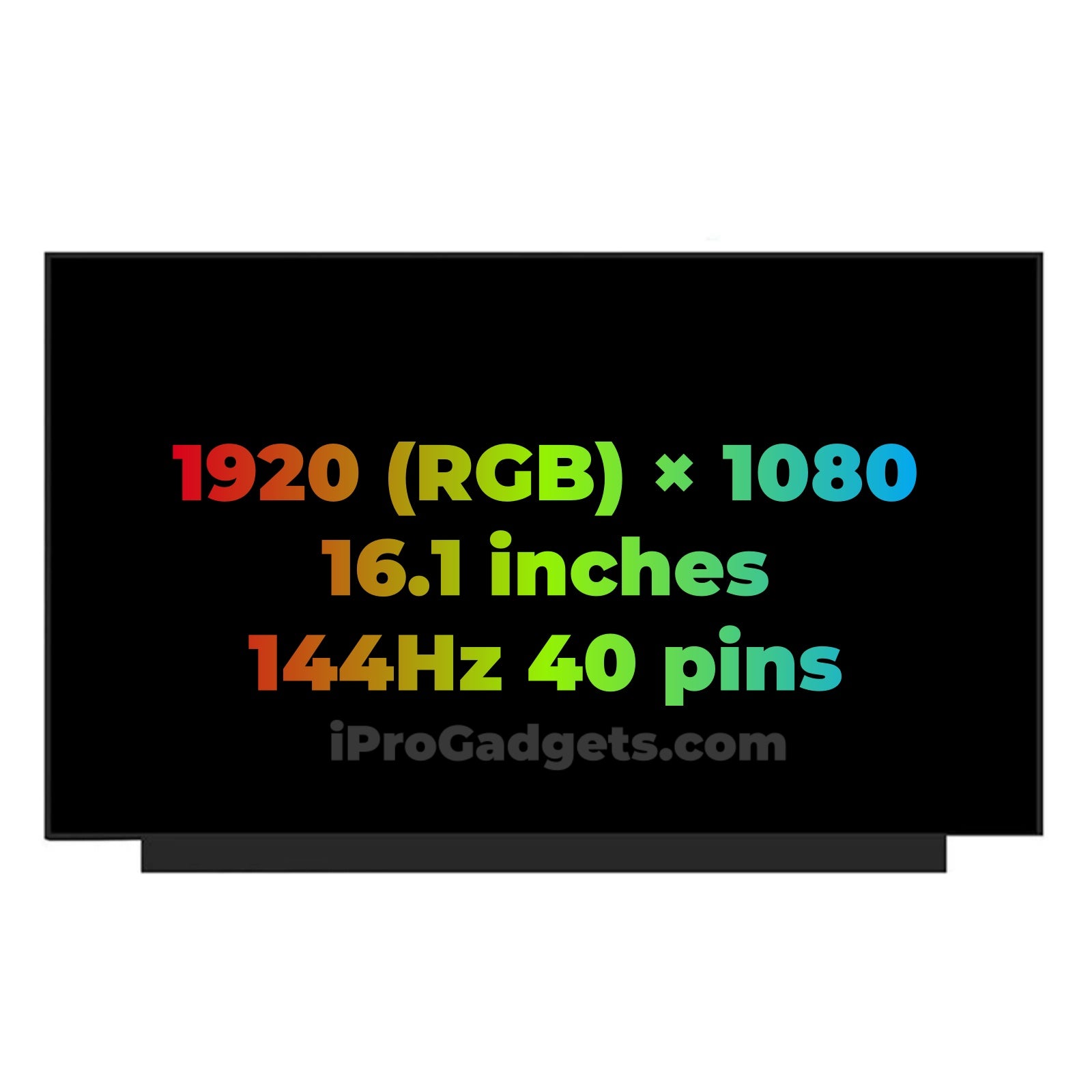

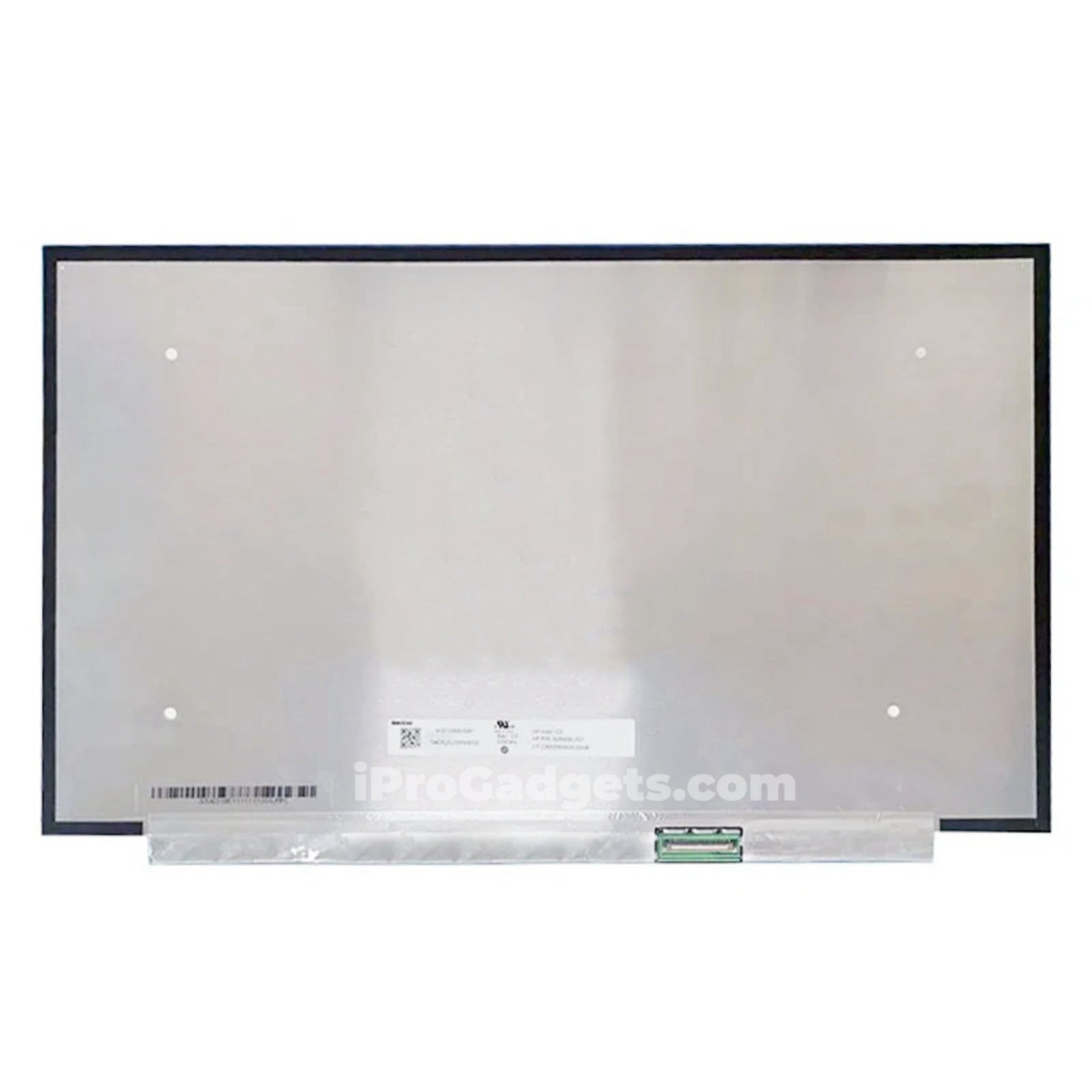

Replacement New Display for HP Victus 16-D 16-d0000 16-d0503la 16.1 Inch LCD Screen 144hz 40Pins LED Monitor
iProGadgets Repair Parts New Screen for HP Victus 16-D 16-d0000 16-d0503la M54734-001 M54735-001 16.1 inch 1920*1080 LCD Display Panel Laptop Monitor Replacement
Note : This screen its 40 pins 144hz ,not fit for 30 pins 60hz .
Screen Size: 16.1 inches
Screen Type: TFT-LCD
Resolution: 1920 (RGB) × 1080
Display Area: 355.39 × 199.91 mm (H×V)
Outline Dimensions: 361.9 × 222.16 × 3.2 mm (H×V×D)
Color Depth: 16.7M colors, 100% sRGB
Refresh Rate: 144Hz
Backlight Type: WLED, 15K hours lifespan, with LED driver
Signal Interface: eDP (4 Lanes), eDP1.3, 40 pins
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol packaging before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each Parts be tested before shipping and good working well.
2.Please test before installation !!!
3.We are not responsible for any installation mistakes.
4.Parts is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the Parts , please do it by a professional person or repair shop.
