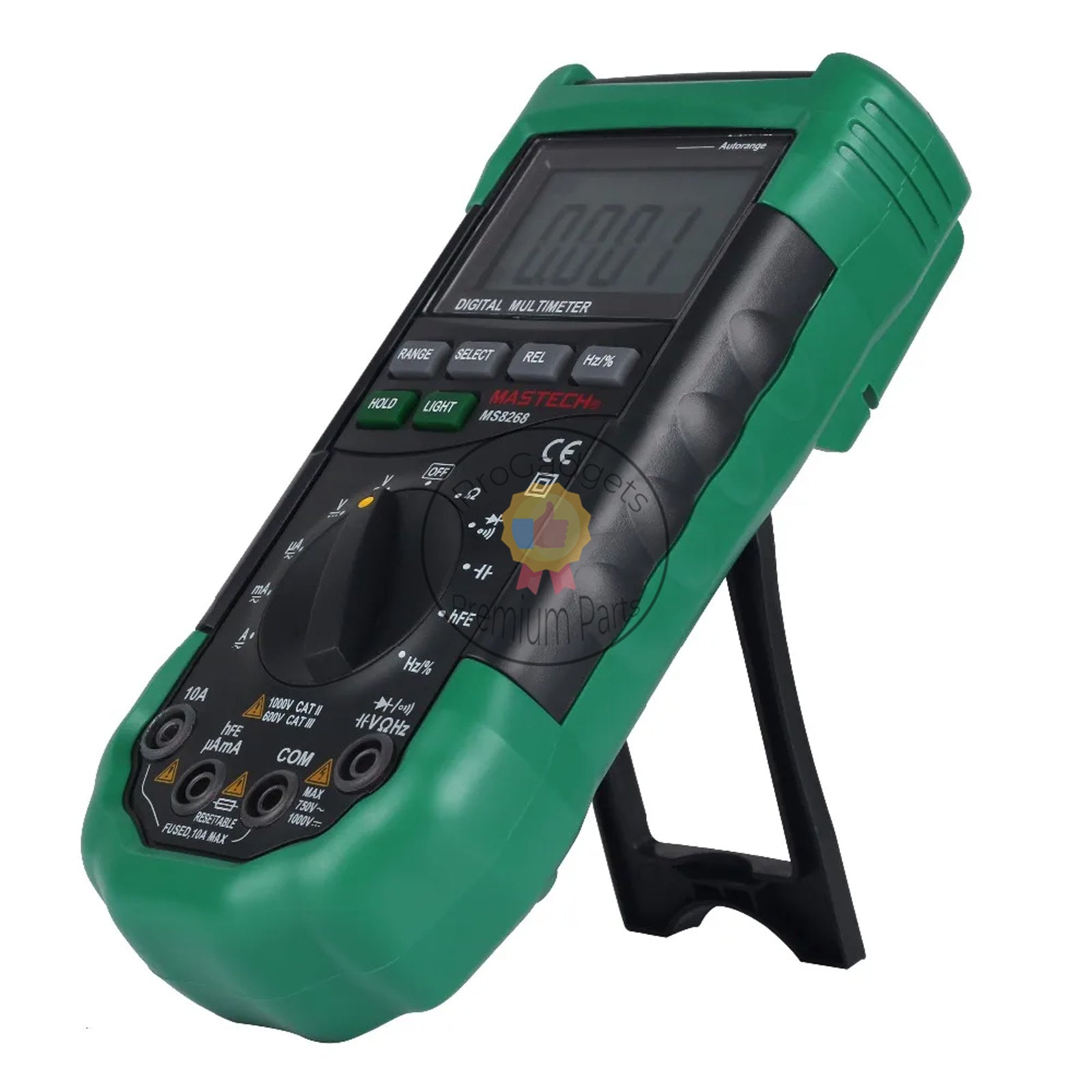

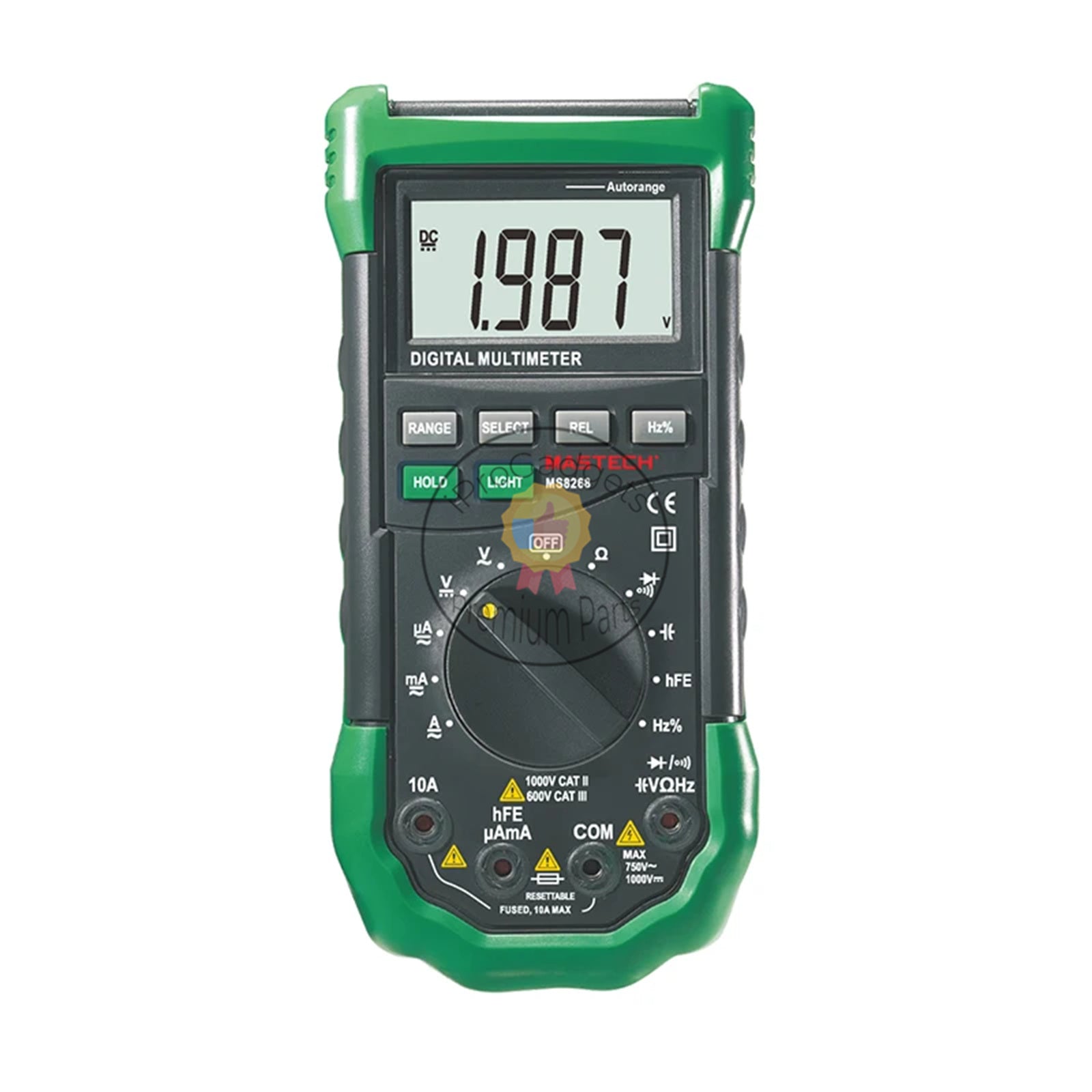

Mastech MS8268 Digital AC/DC Auto/Manual Range Digital Multimeter with hFE Data Hold Relative Measurement and Auto Power Off
iProGadgets Repair Tools Mastech MS8268 Digital AC/DC Auto/Manual Range Digital Multimeter with hFE Data Hold Relative Measurement and Auto Power Off
Features:
Features:
- Multifunctional: Includes AC/DC voltage and current measurements, resistance, capacitance, frequency, duty cycle, transistor, diode and continuity test
- Equipped with sound and light alarms against the bad connection of the test cables
- The meter has manual and automatic range change
- Measurement of transistor hFE and capacitance by the special multi-function socket for more accurate value
- Display relative measurement in all functions except frequency
- Data Hold, to hold readings while measurements are taken

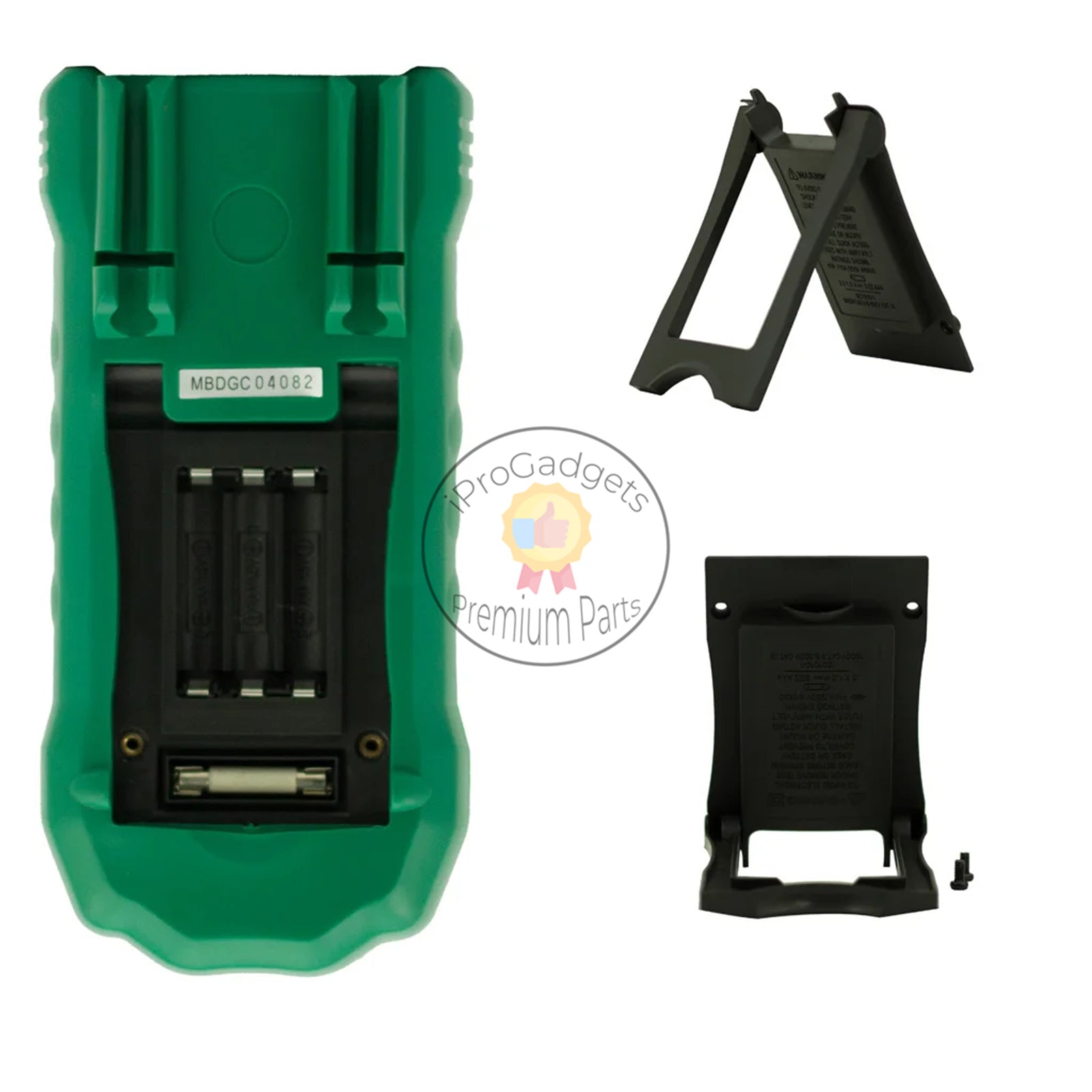

- A back bracket is included for convenient operation
- 3 3/4 digit LCD with backlight. (Press the light to turn on)
- Auto power off and low battery indication
- Automatic display of unit functions and symbols

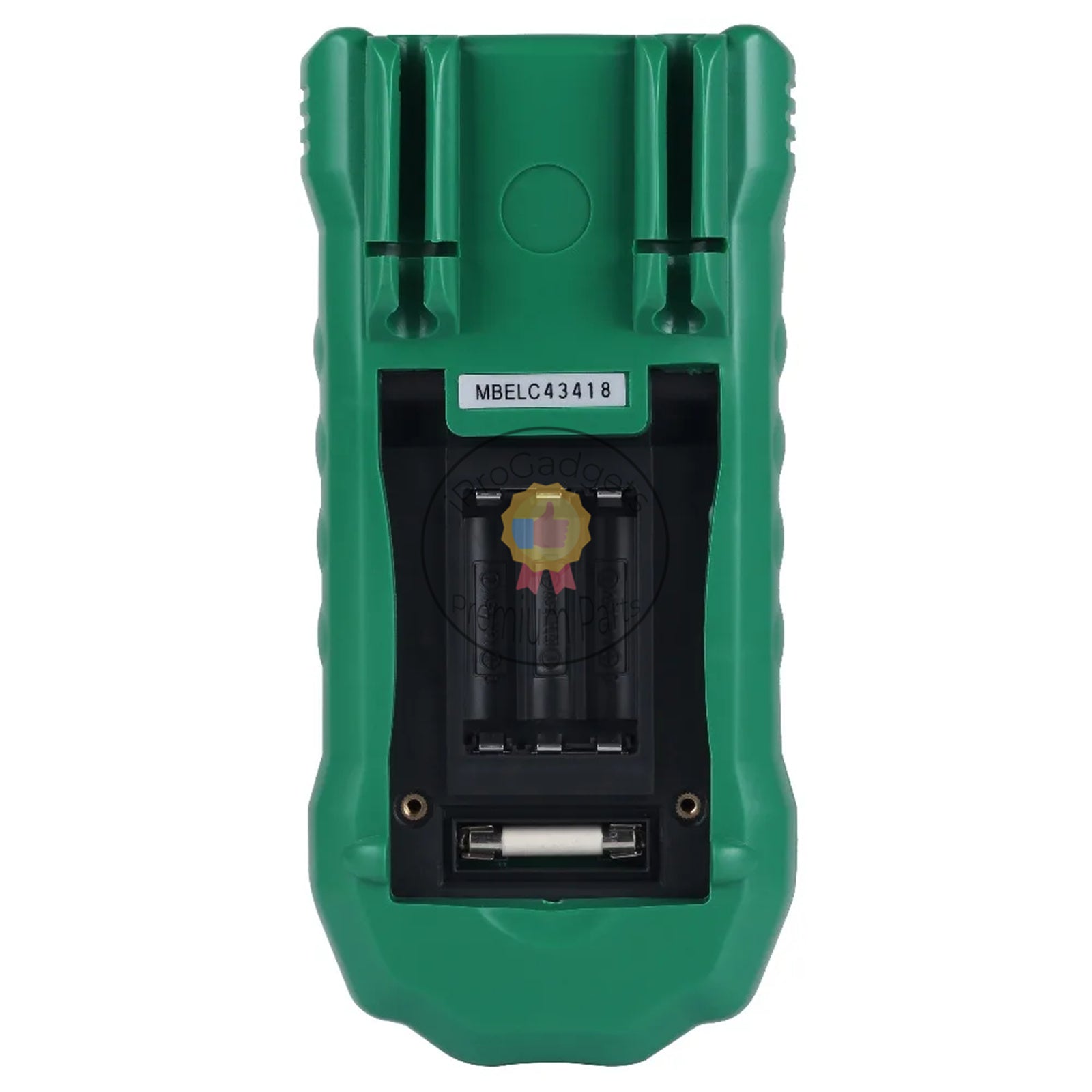

- Built-in resettable fuse
- Complete overload protection and double insulation protection
- Detachable over-molding rubber case, shockproof, anti-slip, and good touch feeling
- DC voltage: 400mV/4V/40V/400V ±0.7%, 1000V ±0.8%
- AC voltage: 400mV ±3.0%, 4V/40V/400V ±0.8%, 750V ±1.0%
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ /4MΩ ±1.0%, 40MΩ ±2.0% Direct
- current: 400μA/4000μA/40mA/400mA ±1.5%,10A ±2.0%
- Alternating current: 400μA/4000μA/40mA/400mA ±1.5%,10A ±3.0%
- Capacitance: 20nF/200nF/2μF/20μF ±4.0%
- Frequency: 10Hz/100Hz/1000Hz/10kHz/200kHz ±2.0%
- Transistor hFE: 1~1000
- Continuity test: Diode test Duty cycle
- Measurement: Relative value measurement
- Sampling frequency: Approx. 3 times/second
- Test leads: 1KV 10A
- Safety standards: IEC1010-1, CAT. III 600V and CAT. II 1000V
- Operating temperature: 0~40°C (32~104°F)
- Operating humidity: below 80%RH, <10°C non-condensing
- Storage temperature: -10~60°C (14~140°F)
- Storage humidity: Below 80% RH
- Power: 3 x 1.5V AAA batteries (not included)

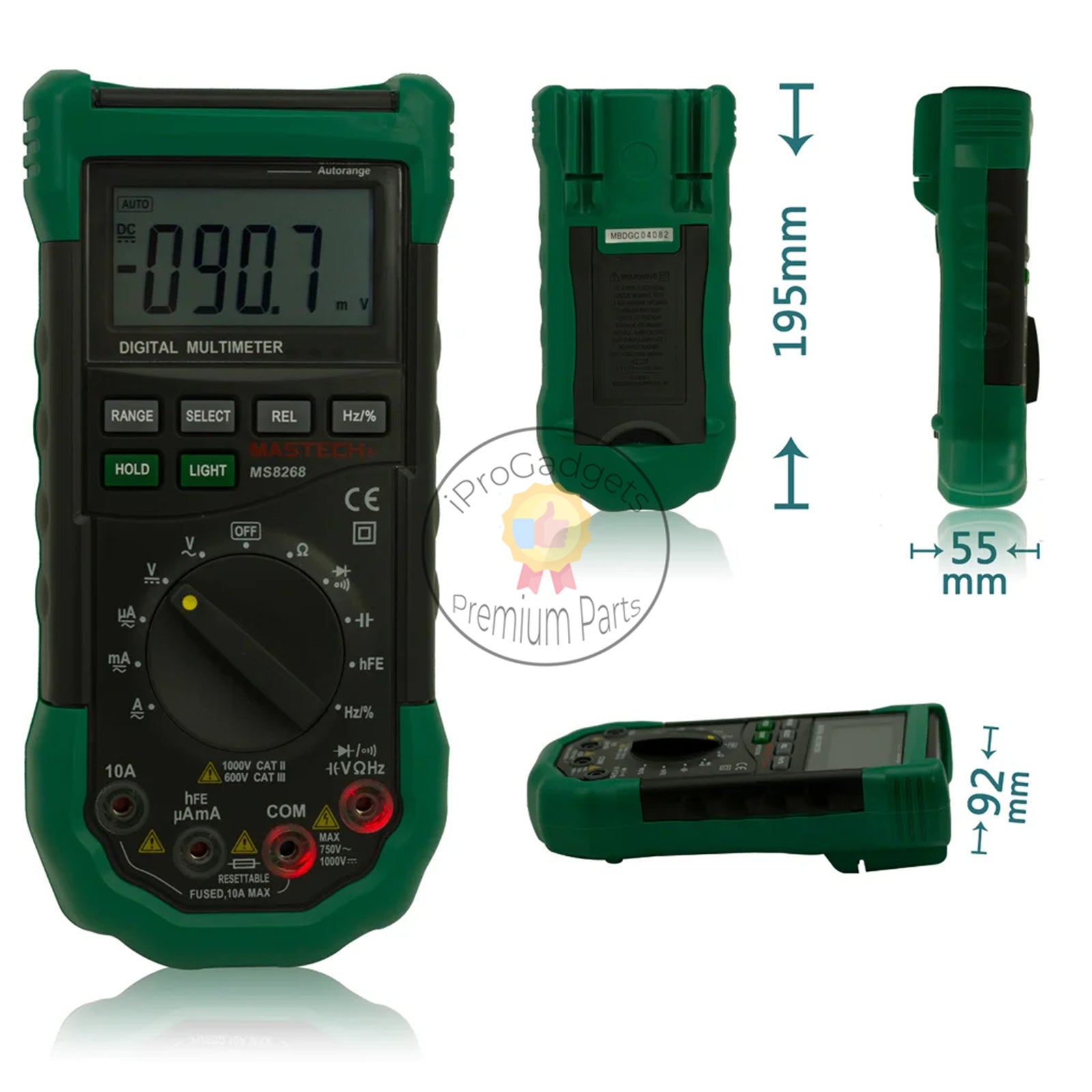

- Dimensions: 195*92*55mm
- Weight: Approx. 380g

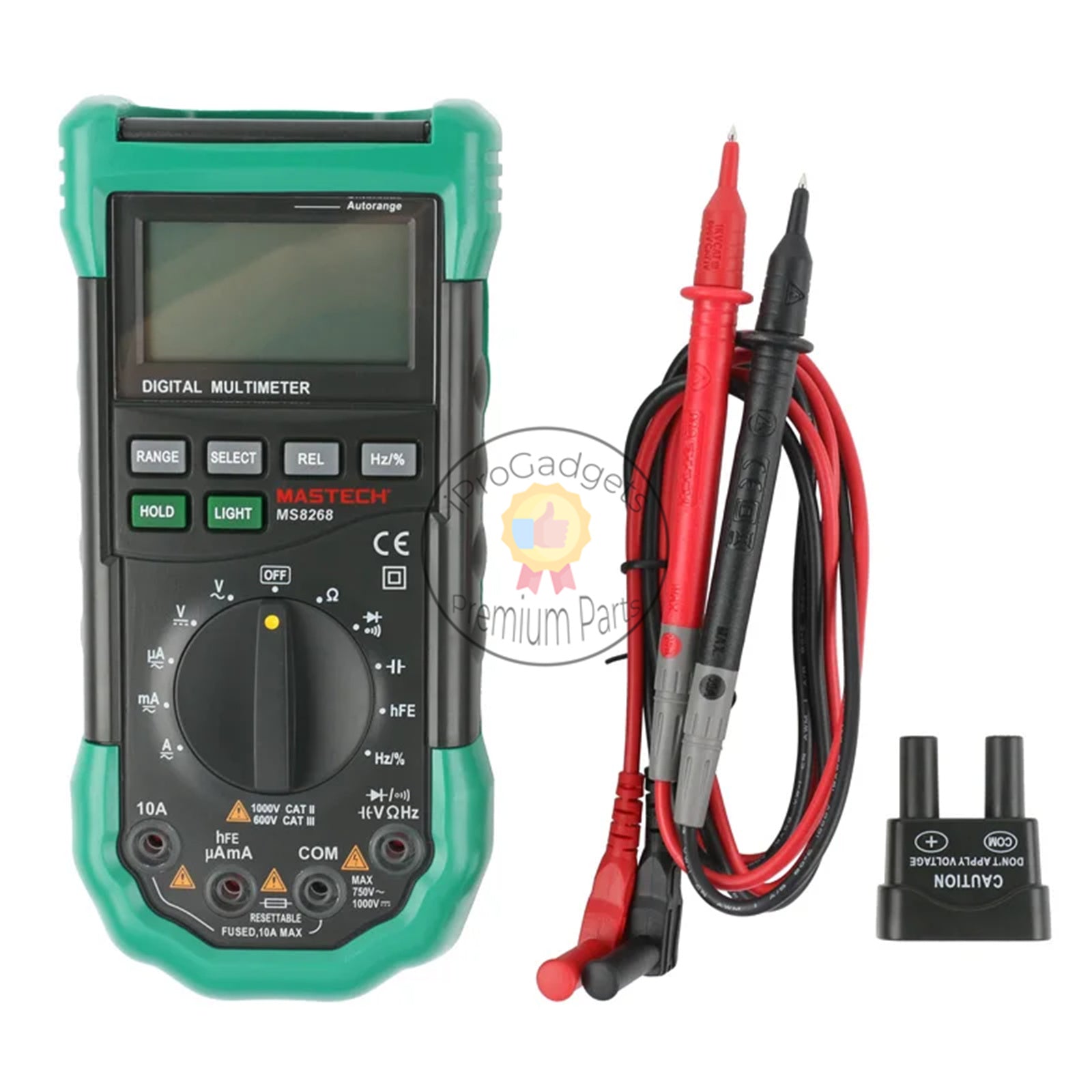

- 1 x Multimeter (without Battery)
- 1 x Test Line
