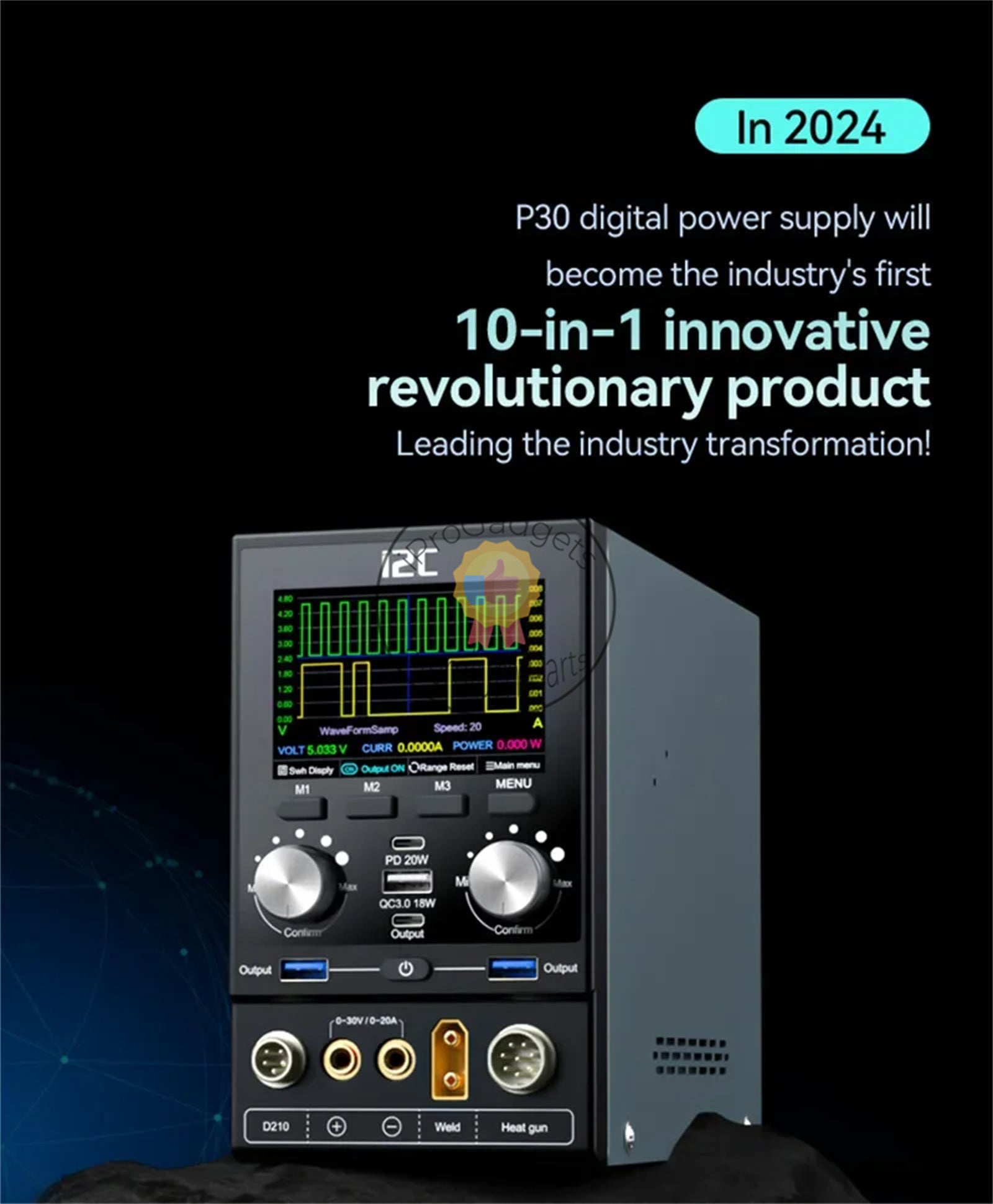

I2C P30 10-in-1 Multifunctional Intelligent Power Supply for Mobile Phone Repair Digital Display Soldering Iron Spot Welder

  • $85.00
    Precio unitario por
Los gastos de envío se calculan en la pantalla de pagos.


iProGadgets Repair Tools I2C P30 10-in-1 Multifunctional Intelligent Power Supply for Mobile Phone Repair Digital Display Soldering Iron Spot Welder

Features:

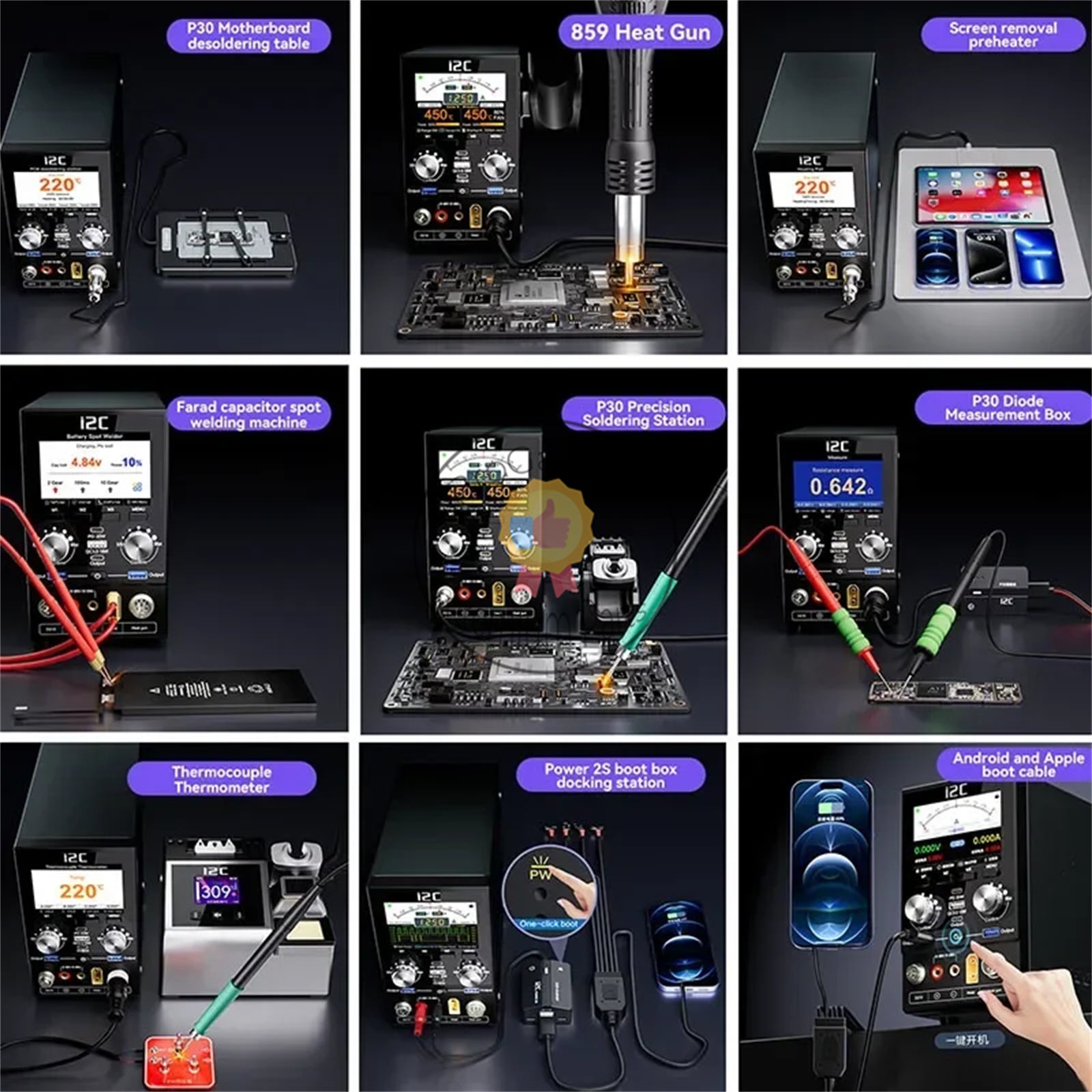

  • P30 digital power supply innovation and fusion, disrupting the industry 10-in-1 multi-function power supply, it is a heat gun, but also a soldering iron

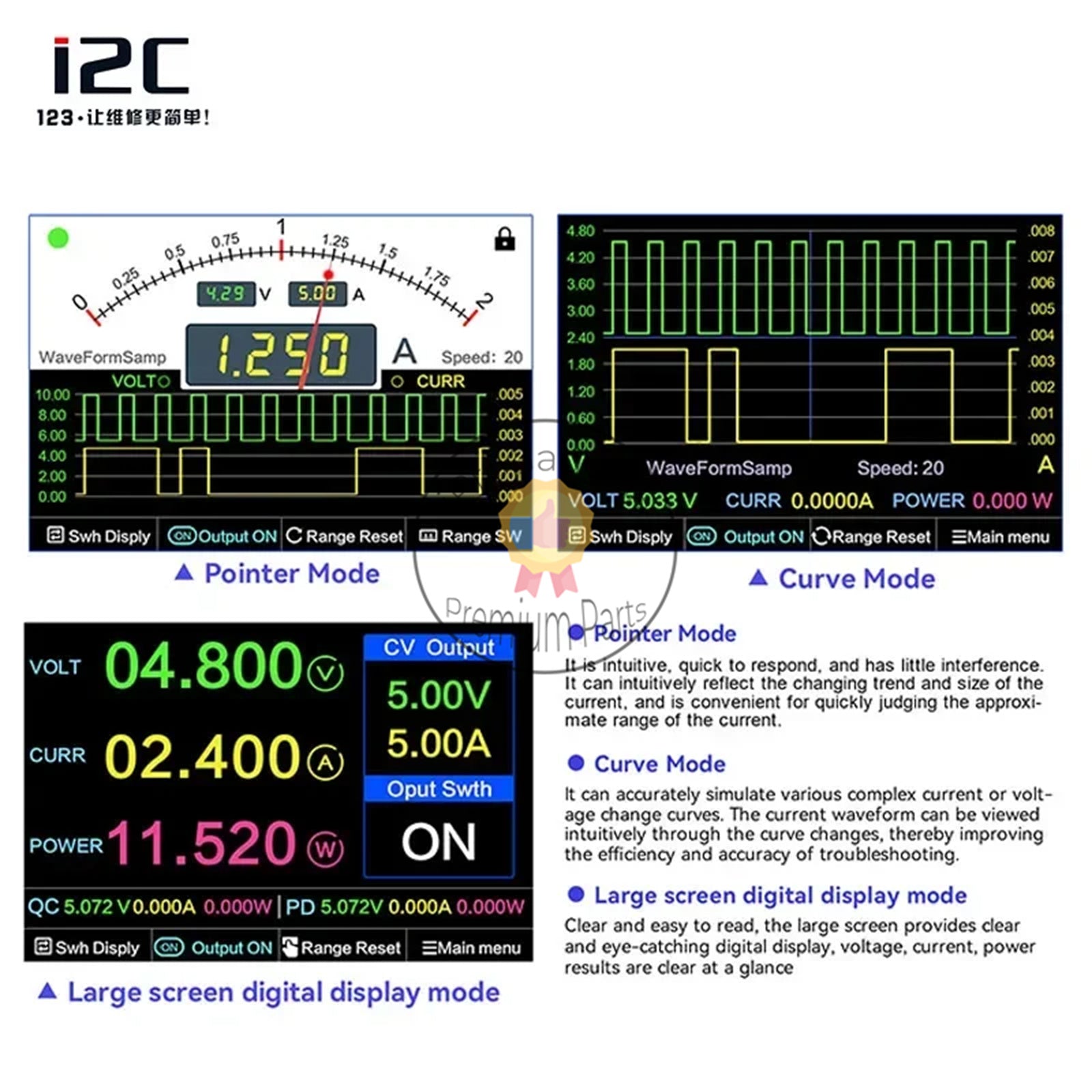

  • Pointer Mode: It is intuitive, quick to respond, and has little interference. It can intuitively reflect the changing trend and size of the current and is convenient for quickly judging the approximate range of the current
  • Curve Mode: It can accurately simulate various complex current or voltage change curves. The current waveform can be viewed intuitively through the curve changes, thereby improving the efficiency and accuracy of troubleshooting
  • Large screen digital display mode: Clear and easy to read, the large screen provides a clear and eye-catching digital display, voltage, current, and power results are clear at a glance
  • One page, 3 functions, the industry's first multi-functional page, integrates power supply, air gun, and soldering iron, all displayed contents can be displayed without switching, deeply solve industry pain points, 1 machine integrates 3 functions: power supply, air gun, soldering iron

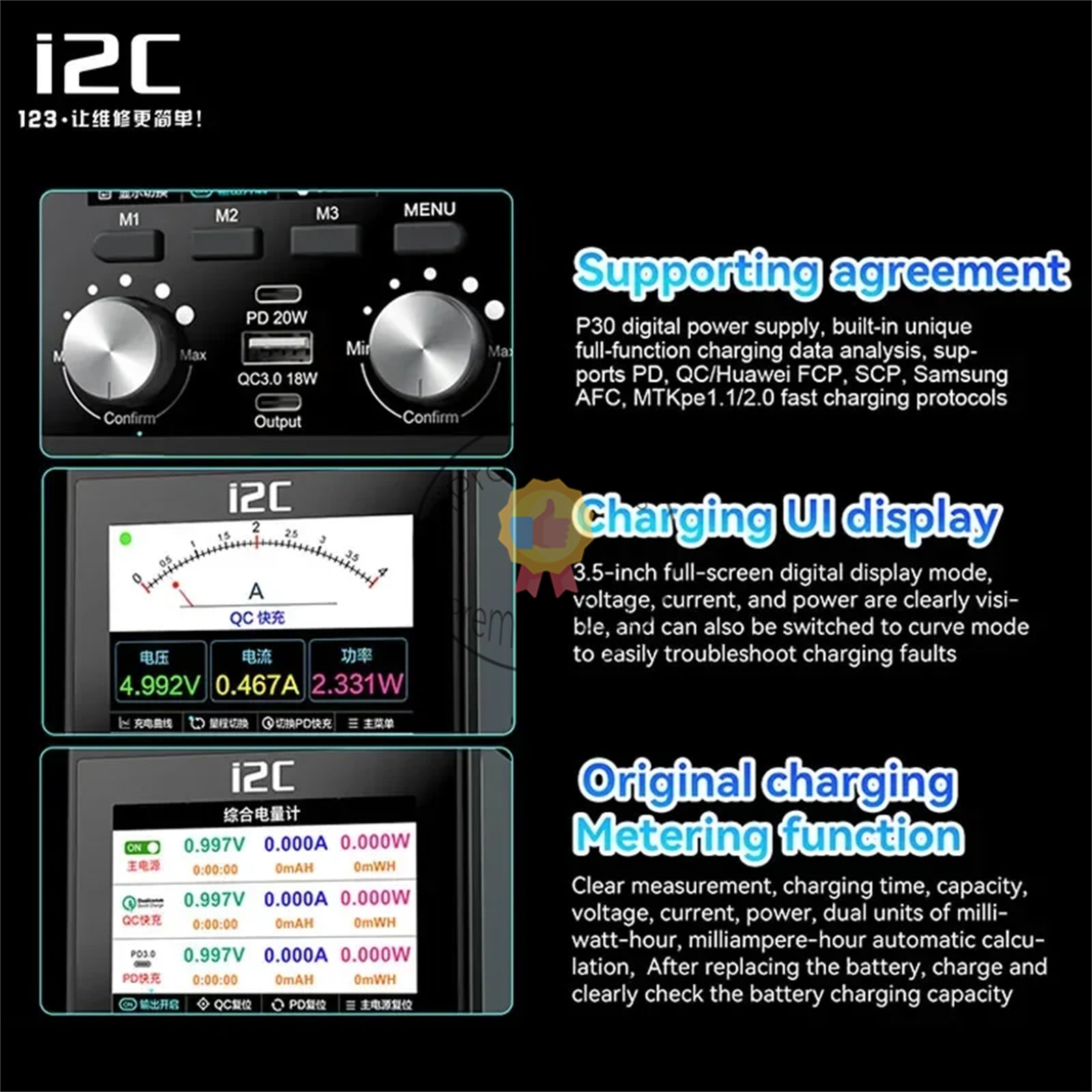

  • P30 digital power supply, built-in unique full-function charging data analysis, support PD, QC/Huawei FCP, SCP, Samsung AFC, MTKpe 1.1/2.0 fast charging protocols
  • 3.5-inch full-screen digital display mode, voltage, current, and power are clearly visible, and can also be switched to curve mode to easily troubleshoot charging faults
  • Clear measurement, charging time, capacity, voltage, current, power, dual units of milli watt-hour, milli ampere-hour automatic calculation, after replacing the battery, charge and clearly check the battery charging capacity
  • Burn-in tool smart version, maximum current of 25A, short-circuit point can be fused in 1 second, and short circuit of power supply at terminal 1/2/3 of mobile phone can be easily solved. It is suitable for PCB voltage short circuit repair in all electronic industries
  • One-key power-on function, support iPhone 7-15PM, one-touch trigger to automatically start, built-in iPhone battery data simulation, no need to wait for power on
  • Strong penetration of solder joints, spot welding is firm and not loose, flexible spot welding without damaging the circuit board

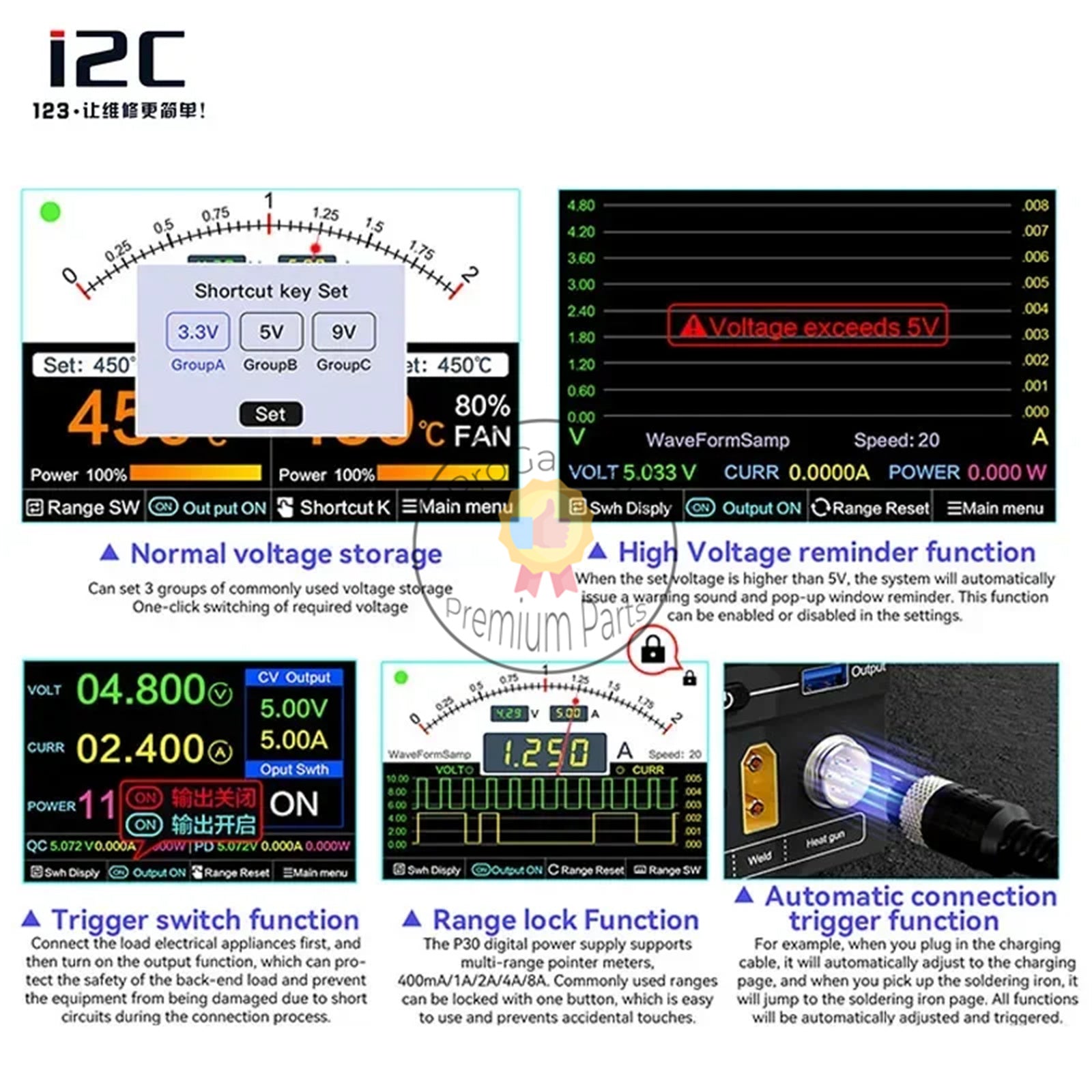

  • Normal voltage storage, fast and convenient, can set 3 groups of commonly used voltage storage, one-click switching of required voltage
  • High Voltage reminder function, safe and smart, when the set voltage is higher than 5V, the system will automatically issue a warning sound and pop-up window reminder, this function can be enabled or disabled in the settings
  • Trigger switch function, double protection, connect the load electrical appliances first and then turn on the output function, which can protect the safety of the back-end load and prevent the equipment from being damaged due to short circuits during the connection process
  • Range lock function, practical and convenient, the P30 digital power supply supports multi-range pointer meters, 400mA/1A/2A/4A/8A. Commonly used ranges can be locked with one button, which is easy to use and prevents accidental touches
  • Automatic connection trigger function, for example, when you plug in the charging cable, it will automatically adjust to the charging page, and when you pick up the soldering iron, it will jump to the soldering iron page. All functions will be automatically adjusted and triggered
  • We have carefully developed a PC-side upper computer system that can not only realize personalized settings of various output parameters but also project the content to the live broadcast platform and display the currently set parameter page during the live broadcast.
  • At the same time, we continue to optimize the software control system and push new firmware versions on the PC side at any time, allowing you to easily update to the latest software version.
  • The P30 power supply uses a total of 18 filter capacitors and users an independent noise-filtering system at the output end, which can effectively filter out interference
  • As a result, the output DC voltage is extremely smooth and stable, significantly reducing voltage fluctuations and ripples, thereby supplying purer power to the circuit
  • The independent noise ripple filter board uses three 2200UF Japanese ruby brand capacitors, with powerful output and pure power supply

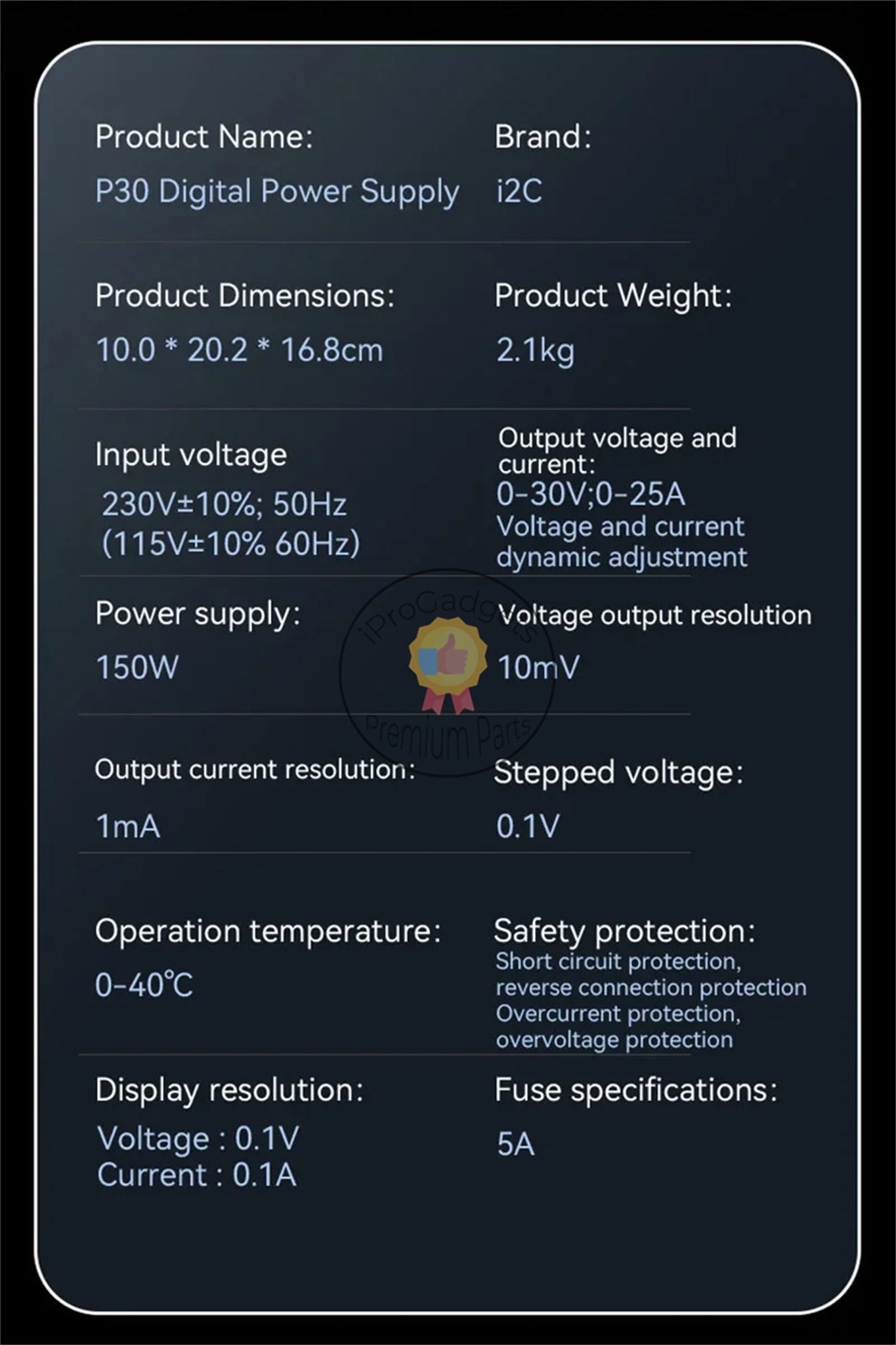

Specification:

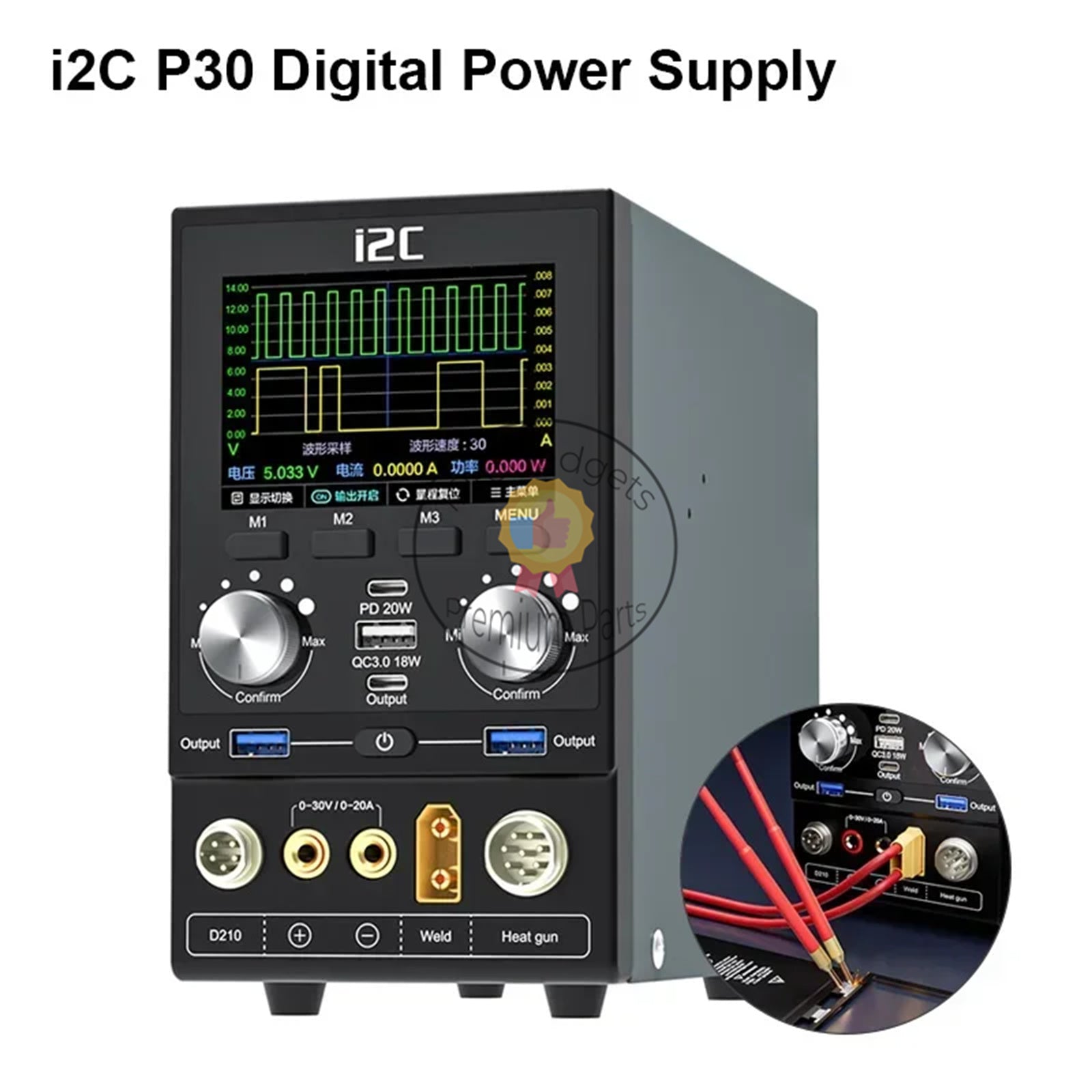

  • Product Name: P30 Digital Power Supply
  • Brand: i2C
  • Input voltage: AC 110V/220V
  • Power supply: 150W
  • Output voltage and current: 0-30V ;0-25A Voltage and current dynamic adjustment
  • Voltage output resolution: 10mV
  • Stepped voltage: 0.1V
  • Output current resolution: 1mA
  • Safety protection: Short circuit protection, reverse connection protection, overcurrent protection, overvoltage protection
  • Fuse specifications: 5A
  • Operation temperature: 0~40℃
  • Display resolution: Voltage 0.1V; Current 0.1A
  • Product Dimensions: 10.0*20.2*16.8cm

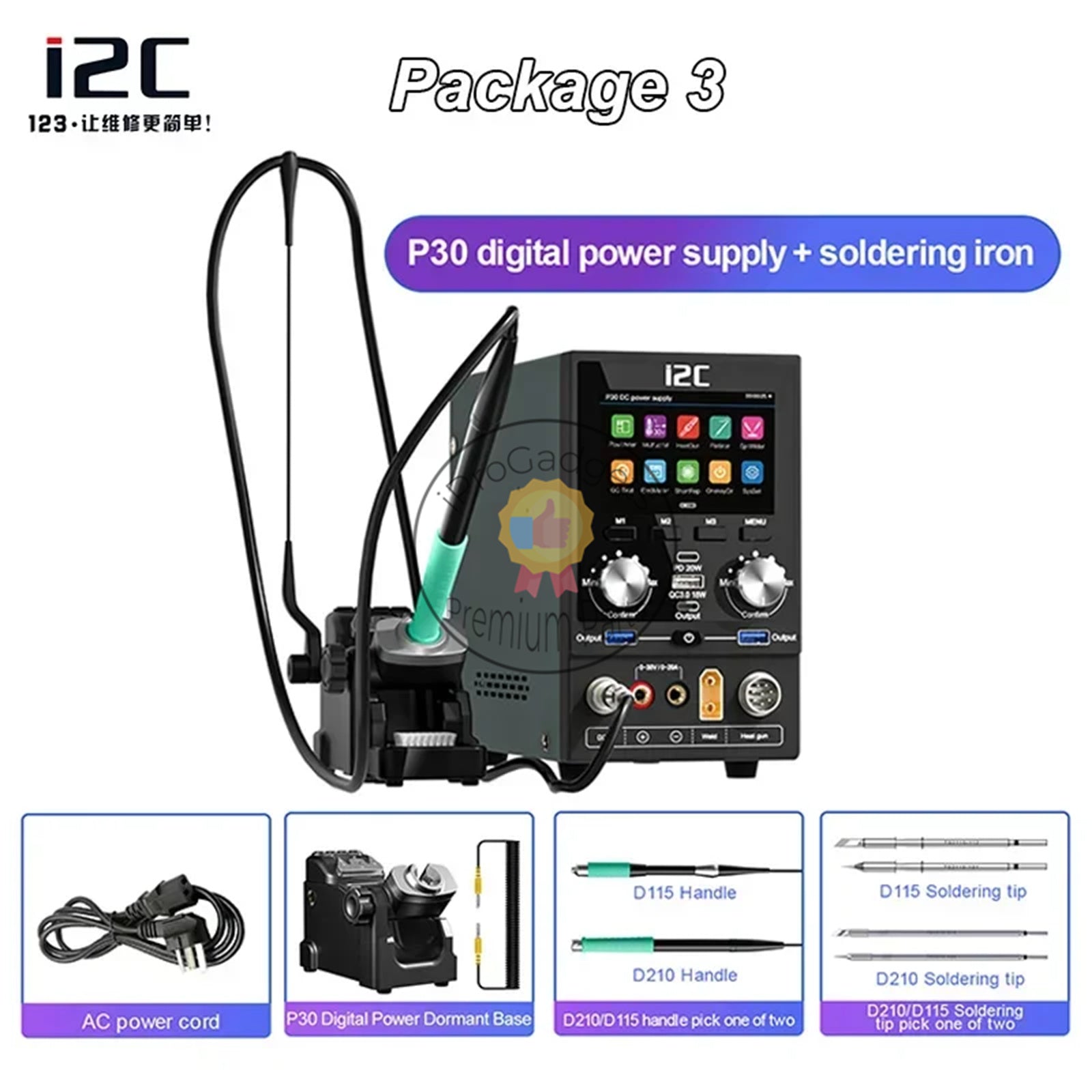

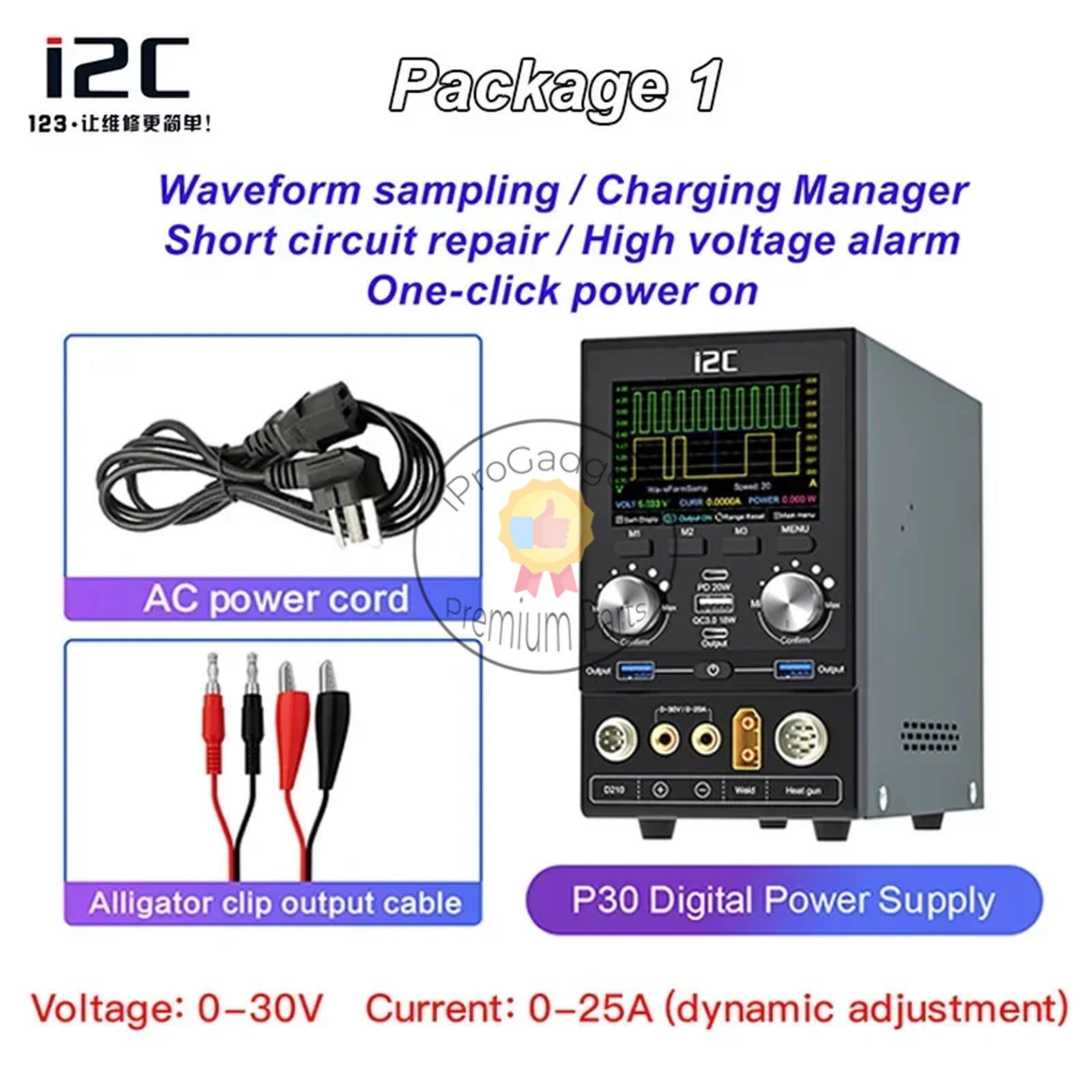

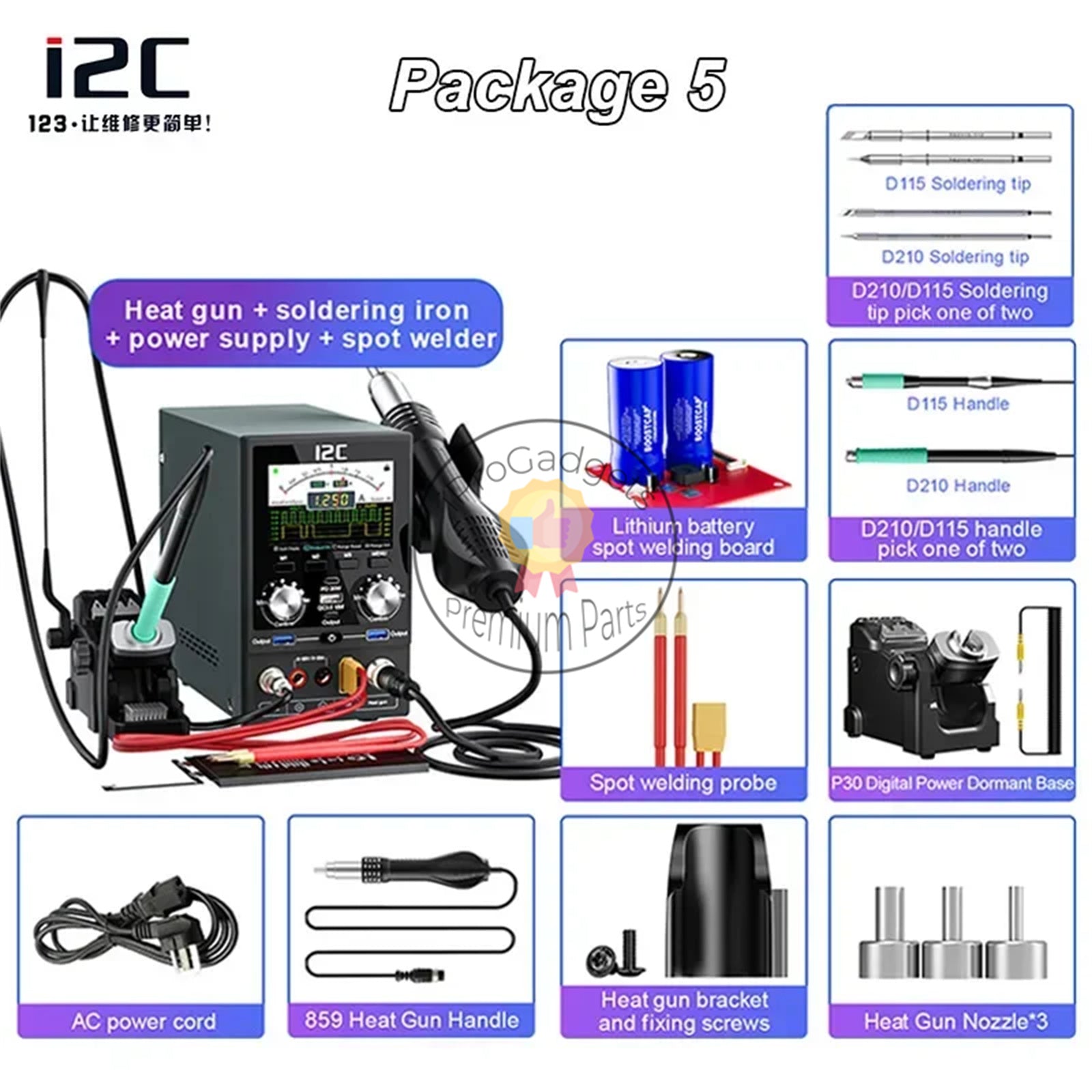

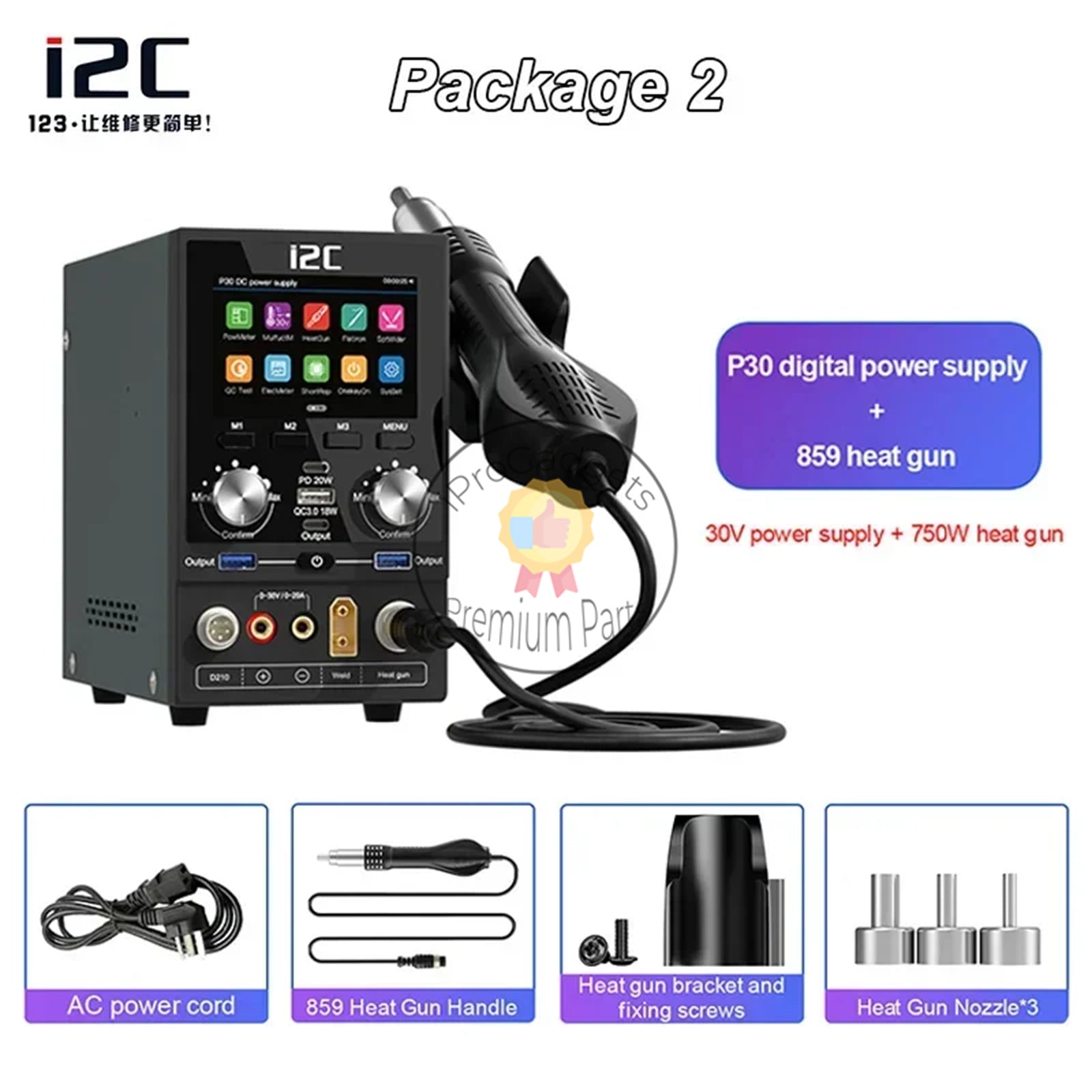

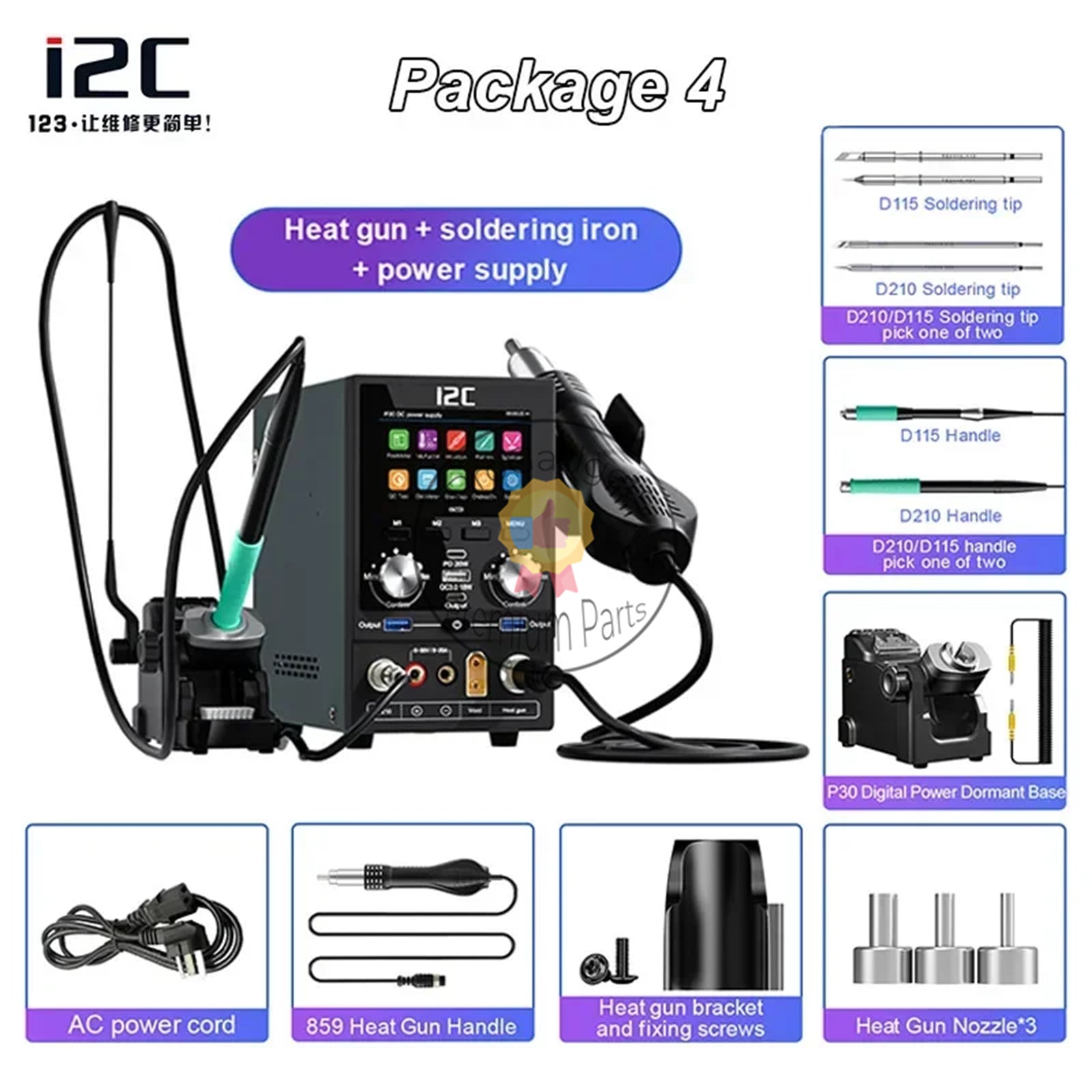

Package includes:
  • 1 x According to your choice
